ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )ACV35

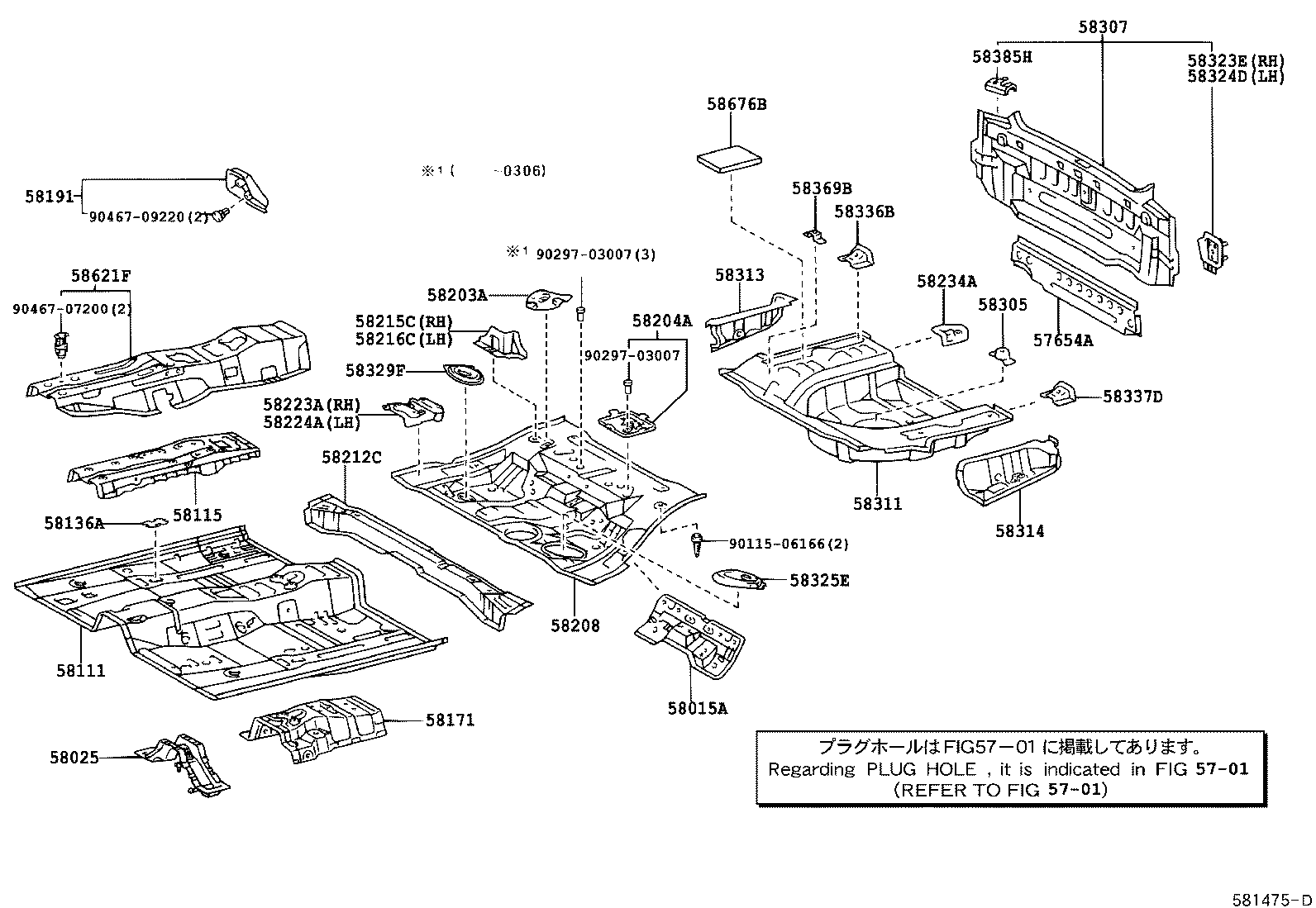

Click highlighted areas on diagram

diagram 5701 5701 57654A 58015A 58025 58111 58115 58136A 58171 58191 58203A 58204A 58208 58212C 58215C 58216C 58223A 58224A 58234A 58305 58307 58311 58313 58314 58323E 58324D 58325E 58329F 58336B 58337D 58369B 58385H 58621F 58676B 9011506166 9029703007 9029703007 9046707200 9046709220
Part # Description Qty Price
57654A - MEMBER, REAR FLOOR CROSS, NO.3
57654-33010

ACV3#

 1
57654-33010

ACV3#

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-33030

ACV3#

 1
58015-33030

ACV3#

 1
58025 - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58025-33010

ACV35

 1
58025-33010

ACV35

 1
58111 - PAN, FRONT FLOOR
58111-33904

ACV35

 1
58111-33901

ACV35

 1
58111-33904

ACV35

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58013-33060

ACV3#

 1
58013-33060

ACV3#

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-33010

ACV3#

 2
58136-33010

ACV3#

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-33070

ACV35

 1
58107-33070

ACV35

 1
58191 - FOOTREST, FRONT FLOOR
58191-33040

ACV3#

 1
58191-33040

ACV3#

 1
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-33030

ACV35

 1
58203-33031

ACV35

 1
58203-33030

ACV35

 1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-33020

ACV35

 1
58204-33020

ACV35

 1
58208 - PAN, CENTER FLOOR
58211-33150

ACV35

 1
58211-33151

ACV35

 1
58211-33150

ACV35

 1
58212C - PAN, CENTER FLOOR, FRONT
58212-33010

ACV3#

 1
58212-33010

ACV3#

 1
58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58215-33040

ACV3#

 1
58215-33040

ACV3#

 1
58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58216-33030

ACV3#

 1
58216-33030

ACV3#

 1
58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH
58223-33020

ACV3#

 1
58223-33020

ACV3#

 1
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58224-33020

ACV3#

 1
58224-33020

ACV3#

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-41010

ACV3#

 1
58234-41010

ACV3#

 1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010

ACV3#

 1
58351-33010

ACV3#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-33110

ACV3#

 1
58307-33110

ACV3#

 1
58311 - PAN, REAR FLOOR
58311-33060

ACV3#

 1
58311-33060

ACV3#

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58305-33050

ACV3#

 1
58305-33050

ACV3#

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58306-33020

ACV3#

 1
58306-33020

ACV3#

 1
58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58323-33060

ACV3#

 1
58323-33060

ACV3#

 1
58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-33040

ACV3#

 1
58324-33040

ACV3#

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-33030

ACV35

 1
58325-33030

ACV35

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-33010

ACV35

 1
58329-33010

ACV35

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-33010

ACV3#

 1
58336-33010

ACV3#

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-33020

ACV3#

 1
58337-33020

ACV3#

 1
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

ACV3#

 2
58369-32010

ACV3#

 2
58385H - BRACKET, REAR BUMPER COVER, NO.1
58385-33020

ACV3#

 2
58385-33020

ACV3#

 2
58621F - SILENCER, CENTER CONSOLE, NO.1
58621-33060

ACV35

 1
58621-33060

ACV35

 1
58676B - PAD, REAR FLOOR SILENCER, NO.1 RH
58676-33010

ACV3#

 1
58676-33010

ACV3#

 1
Common parts
90115-06166
90297-03007
90467-07200
90467-09220
Linked diagrams
5701
