ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109-0208)

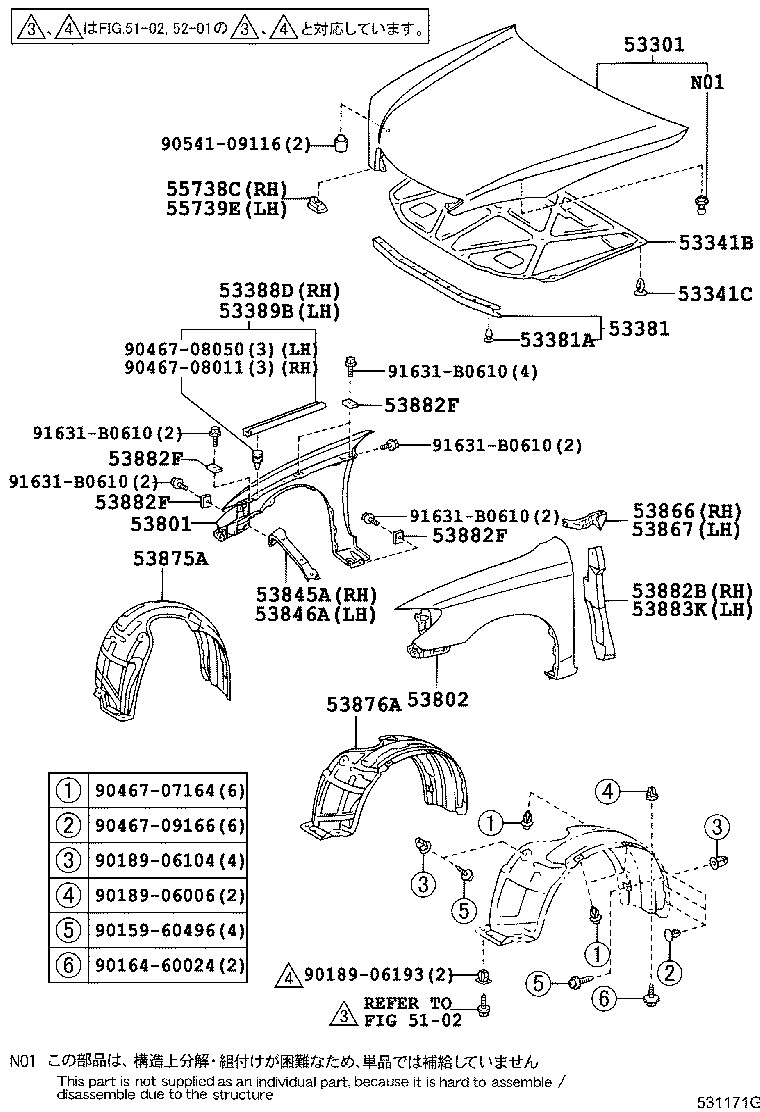

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-33070 |
ACV3# |
1 | ||
| 53301-33070 |
ACV3# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-33080 |
ACV3# |
1 | ||
| 53341-33080 |
ACV3# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09006 |
ACV3# |
13 | ||
| 90467-09050 |
ACV3# |
13 | ||
| 90467-09006 |
ACV3# |
13 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-33052 |
ACV3# |
1 | ||
| 53381-33051 |
ACV3# |
1 | ||
| 53381-33050 |
ACV3# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
ACV3# |
10 | ||
| 90080-46010 |
ACV3# |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-33011 |
ACV3# |
1 | ||
| 53388-33011 |
ACV3# |
1 | ||
| 53388-33010 |
ACV3# |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-33021 |
ACV3# |
1 | ||
| 53389-33020 |
ACV3# |
1 | ||
| 53389-33021 |
ACV3# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-33100 |
ACV3# |
1 | ||
| 53801-33100 |
ACV3# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-33100 |
ACV3# |
1 | ||
| 53802-33100 |
ACV3# |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-33060 |
ACV3# |
1 | ||
| 53845-33060 |
ACV3# |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53846-33050 |
ACV3# |
1 | ||
| 53846-33050 |
ACV3# |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-33040 |
ACV3# |
1 | ||
| 53866-33040 |
ACV3# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-33040 |
ACV3# |
1 | ||
| 53867-33040 |
ACV3# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-33110 |
ACV3# |
1 | ||
| 53875-33111 |
ACV3# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-33110 |
ACV3# |
1 | ||
| 53876-33111 |
ACV3# |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-33020 |
ACV3# |
1 | ||
| 53882-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-33020 |
ACV3# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-33020 |
ACV3# |
1 | ||
| 53883-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53883-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53883-33020 |
ACV3# |
1 | ||
| 55738C - STOPPER, HOOD, RH | ||||
| 55738-33020 |
ACV3# |
1 | ||
| 55738-33020 |
ACV3# |
1 | ||
| 55739E - STOPPER, HOOD, LH | ||||
| 55739-33020 |
ACV3# |
1 | ||
| 55739-33020 |
ACV3# |
1 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90164-60024 | ||||
| 90189-06006 | ||||
| 90189-06104 | ||||
| 90189-06193 | ||||
| 90467-07164 | ||||
| 90467-08011 | ||||
| 90467-08050 | ||||
| 90467-09166 | ||||
| 90541-09116 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 5102 | ||||
(0208- )

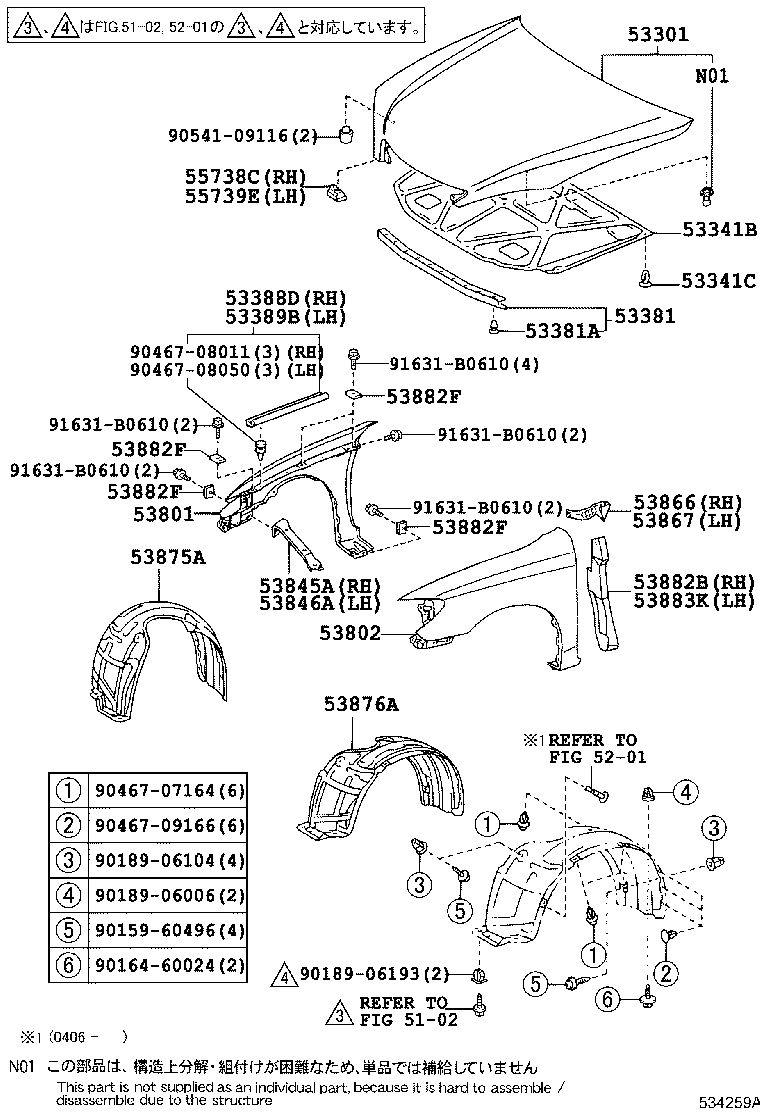

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-33070 |
ACV3# |
1 | ||
| 53301-33070 |
ACV3# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-33080 |
ACV3# |
1 | ||
| 53341-33080 |
ACV3# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09006 |
ACV3# |
13 | ||
| 90467-09050 |
ACV3# |
13 | ||
| 90467-09006 |
ACV3# |
13 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-33052 |
ACV3# |
1 | ||
| 53381-33051 |
ACV3# |
1 | ||
| 53381-33050 |
ACV3# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90080-46010 |
ACV3# |
10 | ||
| 90080-46010 |
ACV3# |
10 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-33011 |
ACV3# |
1 | ||
| 53388-33011 |
ACV3# |
1 | ||
| 53388-33010 |
ACV3# |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-33021 |
ACV3# |
1 | ||
| 53389-33020 |
ACV3# |
1 | ||
| 53389-33021 |
ACV3# |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-33100 |
ACV3# |
1 | ||
| 53801-33100 |
ACV3# |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-33100 |
ACV3# |
1 | ||
| 53802-33100 |
ACV3# |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-33060 |
ACV3# |
1 | ||
| 53845-33060 |
ACV3# |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53846-33050 |
ACV3# |
1 | ||
| 53846-33050 |
ACV3# |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-33040 |
ACV3# |
1 | ||
| 53866-33040 |
ACV3# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-33040 |
ACV3# |
1 | ||
| 53867-33040 |
ACV3# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-33110 |
ACV3# |
1 | ||
| 53875-33111 |
ACV3# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-33110 |
ACV3# |
1 | ||
| 53876-33111 |
ACV3# |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-33020 |
ACV3# |
1 | ||
| 53882-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-33020 |
ACV3# |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ACV3# |
10 | ||
| 53882-16030 |
ACV3# |
10 | ||
| 53883K - SEAL, FRONT FENDER, LH | ||||
| 53883-33020 |
ACV3# |
1 | ||
| 53883-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53883-33021 |
ACV3# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53883-33020 |
ACV3# |
1 | ||
| 55738C - STOPPER, HOOD, RH | ||||
| 55738-33020 |
ACV3# |
1 | ||
| 55738-33020 |
ACV3# |
1 | ||
| 55739E - STOPPER, HOOD, LH | ||||
| 55739-33020 |
ACV3# |
1 | ||
| 55739-33020 |
ACV3# |
1 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90164-60024 | ||||
| 90189-06006 | ||||
| 90189-06104 | ||||
| 90189-06193 | ||||
| 90467-07164 | ||||
| 90467-08011 | ||||
| 90467-08050 | ||||
| 90467-09166 | ||||
| 90541-09116 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
