ACV35-AEPNK (2001)
Toyota Camry

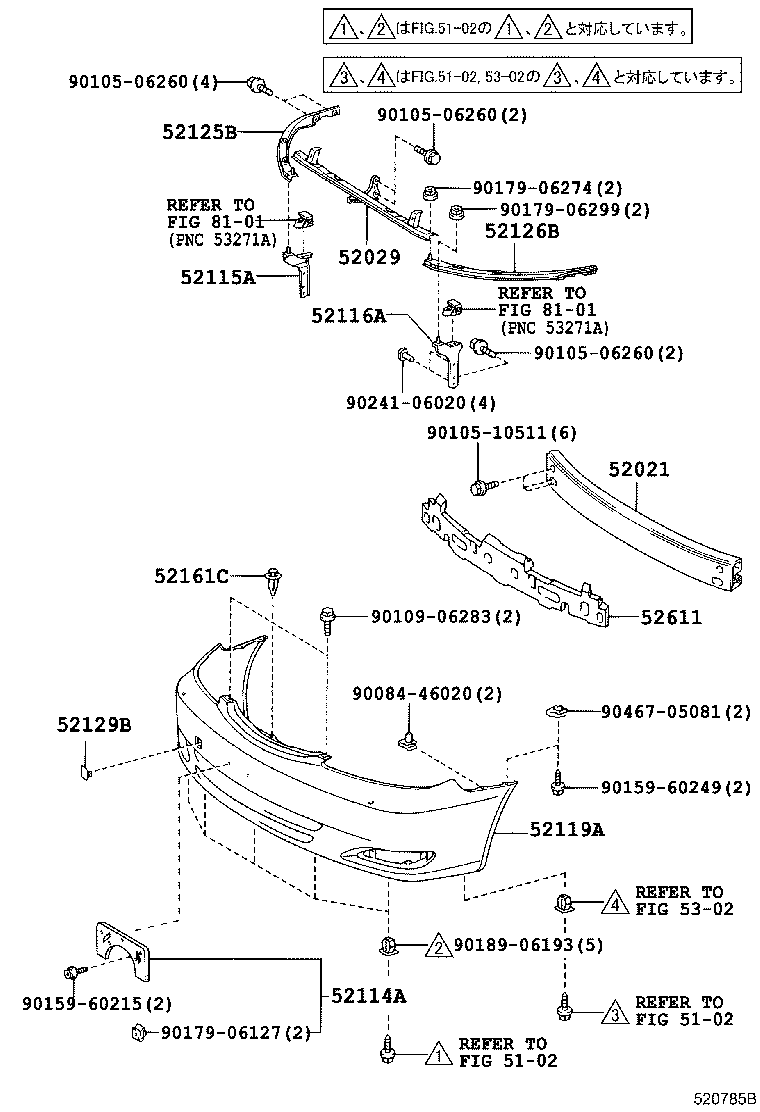

(0109-0406)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-33100 |
ACV3# |
1 | ||
| 52021-33100 |
ACV3# |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-33070 |
ACV3# |
1 | ||
| 52029-33070 |
ACV3# |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-33110 |
ACV3# |
1 | ||
| 52114-33110 |
ACV3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-33060 |
ACV3# |
1 | ||
| 52115-33060 |
ACV3# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-33050 |
ACV3# |
1 | ||
| 52116-33050 |
ACV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-33290A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52119-33290B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52119-33290B1 |
ACV3# GRAY M.M.,1E3 |
1 | ||
| 52119-33360A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52119-33290D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52119-33360A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52119-33290J0 |
ACV3# DK.BLUE MC.,8Q0 |
1 | ||
| 52119-33360B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52119-33360J0 |
ACV3# DK.BLUE M.M.,8P4 |
1 | ||
| 52119-33360D0 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52119-33290C0 |
ACV3# BLACK,202 |
1 | ||
| 52119-33360E0 |
ACV3# BEIGE M. M.,4Q2 |
1 | ||
| 52119-33290A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52119-33360C0 |
ACV3# BLACK,202 |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-33050 |
ACV3# |
1 | ||
| 52125-33050 |
ACV3# |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-33050 |
ACV3# |
1 | ||
| 52126-33050 |
ACV3# |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-33010A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52129-33010D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52129-33010B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52129-33010D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52129-33010B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52129-33010A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52129-33010C0 |
ACV3# BLACK,202 |
1 | ||
| 52129-33010J0 |
ACV3# DK.BLUE MC.,8Q0 |
1 | ||
| 52129-33010A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52129-33010J2 |
ACV3# DK.BLUE M.M.,8P4 |
1 | ||
| 52129-33010A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52129-33010B1 |
ACV3# GRAY M.M.,1E3 |
1 | ||
| 52129-33010C0 |
ACV3# BLACK,202 |
1 | ||
| 52129-33010E0 |
ACV3# BEIGE M. M.,4Q2 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACV3# |
1 | ||
| 52161-16010 |
ACV3# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-33121 |
ACV3# |
1 | ||
| 52611-33121 |
ACV3# |
1 | ||
| 52611-33120 |
ACV3# |
1 | ||
| Common parts | ||||
| 90084-46020 | ||||
| 90105-06260 | ||||
| 90105-10511 | ||||
| 90109-06283 | ||||
| 90159-60215 | ||||
| 90159-60249 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 90179-06299 | ||||
| 90189-06193 | ||||
| 90241-06020 | ||||
| 90467-05081 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

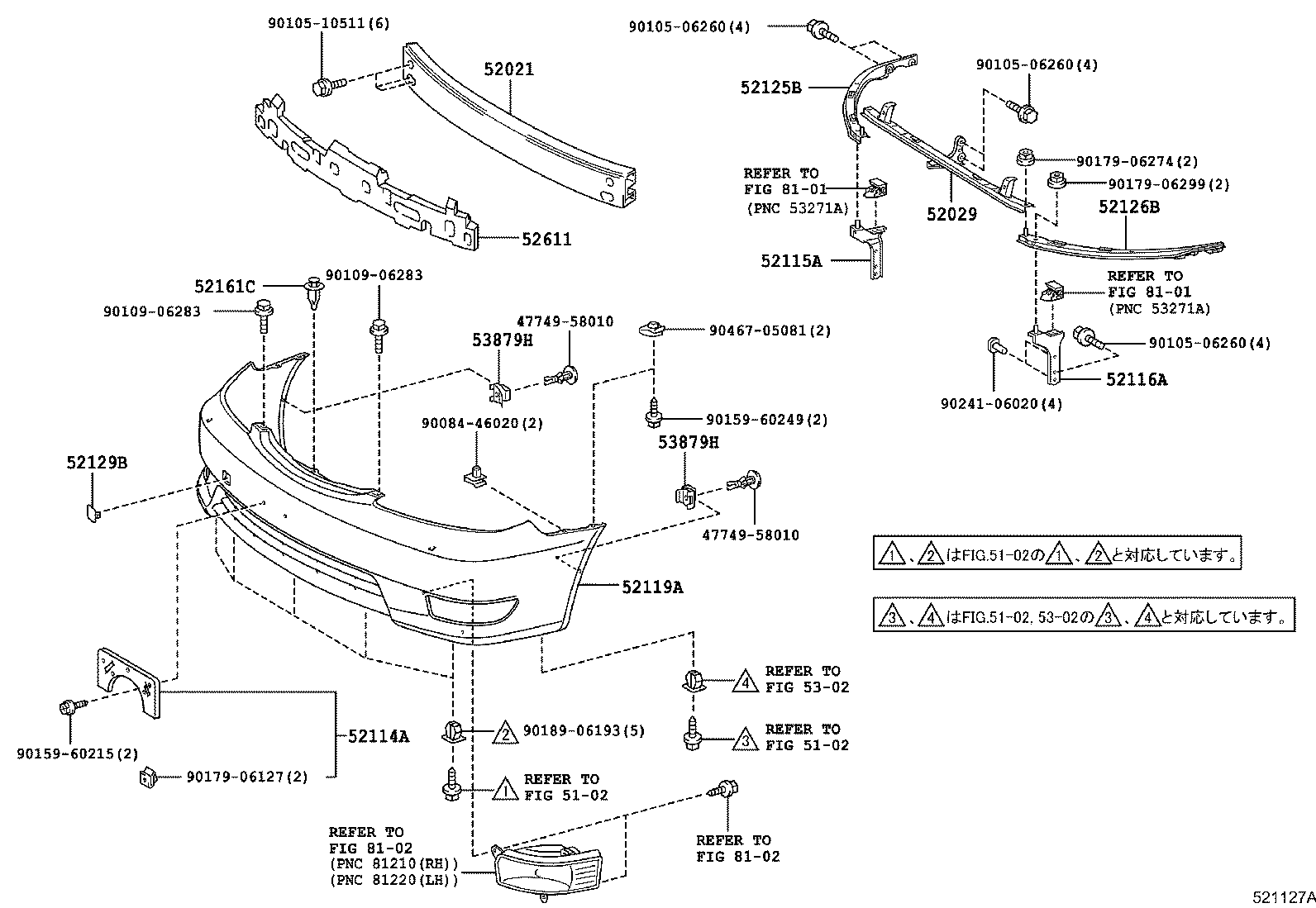

(0406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-33100 |
ACV3# |
1 | ||
| 52021-33100 |
ACV3# |
1 | ||
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-33070 |
ACV3# |
1 | ||
| 52029-33070 |
ACV3# |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-33110 |
ACV3# |
1 | ||
| 52114-33110 |
ACV3# |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-33060 |
ACV3# |
1 | ||
| 52115-33060 |
ACV3# |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-33050 |
ACV3# |
1 | ||
| 52116-33050 |
ACV3# |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-33290A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52119-33290B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52119-33290B1 |
ACV3# GRAY M.M.,1E3 |
1 | ||
| 52119-33360A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52119-33290D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52119-33360A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52119-33290J0 |
ACV3# DK.BLUE MC.,8Q0 |
1 | ||
| 52119-33360B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52119-33360J0 |
ACV3# DK.BLUE M.M.,8P4 |
1 | ||
| 52119-33360D0 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52119-33290C0 |
ACV3# BLACK,202 |
1 | ||
| 52119-33360E0 |
ACV3# BEIGE M. M.,4Q2 |
1 | ||
| 52119-33290A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52119-33360C0 |
ACV3# BLACK,202 |
1 | ||
| 52125B - EXTENSION, FRONT BUMPER REINFORCEMENT, RH | ||||
| 52125-33050 |
ACV3# |
1 | ||
| 52125-33050 |
ACV3# |
1 | ||
| 52126B - EXTENSION, FRONT BUMPER REINFORCEMENT, LH | ||||
| 52126-33050 |
ACV3# |
1 | ||
| 52126-33050 |
ACV3# |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-33010A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52129-33010D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52129-33010B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52129-33010D1 |
ACV3# DK. RED M.M.,3Q3 |
1 | ||
| 52129-33010B0 |
ACV3# SILVER ME.,1C8 |
1 | ||
| 52129-33010A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52129-33010C0 |
ACV3# BLACK,202 |
1 | ||
| 52129-33010J0 |
ACV3# DK.BLUE MC.,8Q0 |
1 | ||
| 52129-33010A1 |
ACV3# WHITE PEARL CS.,062 |
1 | ||
| 52129-33010J2 |
ACV3# DK.BLUE M.M.,8P4 |
1 | ||
| 52129-33010A0 |
ACV3# SUPER WHITE 2,040 |
1 | ||
| 52129-33010B1 |
ACV3# GRAY M.M.,1E3 |
1 | ||
| 52129-33010C0 |
ACV3# BLACK,202 |
1 | ||
| 52129-33010E0 |
ACV3# BEIGE M. M.,4Q2 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACV3# |
1 | ||
| 52161-16010 |
ACV3# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-33121 |
ACV3# |
1 | ||
| 52611-33121 |
ACV3# |
1 | ||
| 52611-33120 |
ACV3# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ACV3# |
2 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ACV3# |
2 | ||
| Common parts | ||||
| 47749-58010 | ||||
| 90084-46020 | ||||
| 90105-06260 | ||||
| 90105-10511 | ||||
| 90109-06283 | ||||
| 90159-60215 | ||||
| 90159-60249 | ||||
| 90179-06127 | ||||
| 90179-06274 | ||||
| 90179-06299 | ||||
| 90189-06193 | ||||
| 90241-06020 | ||||
| 90467-05081 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
| 8102 | ||||
