ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

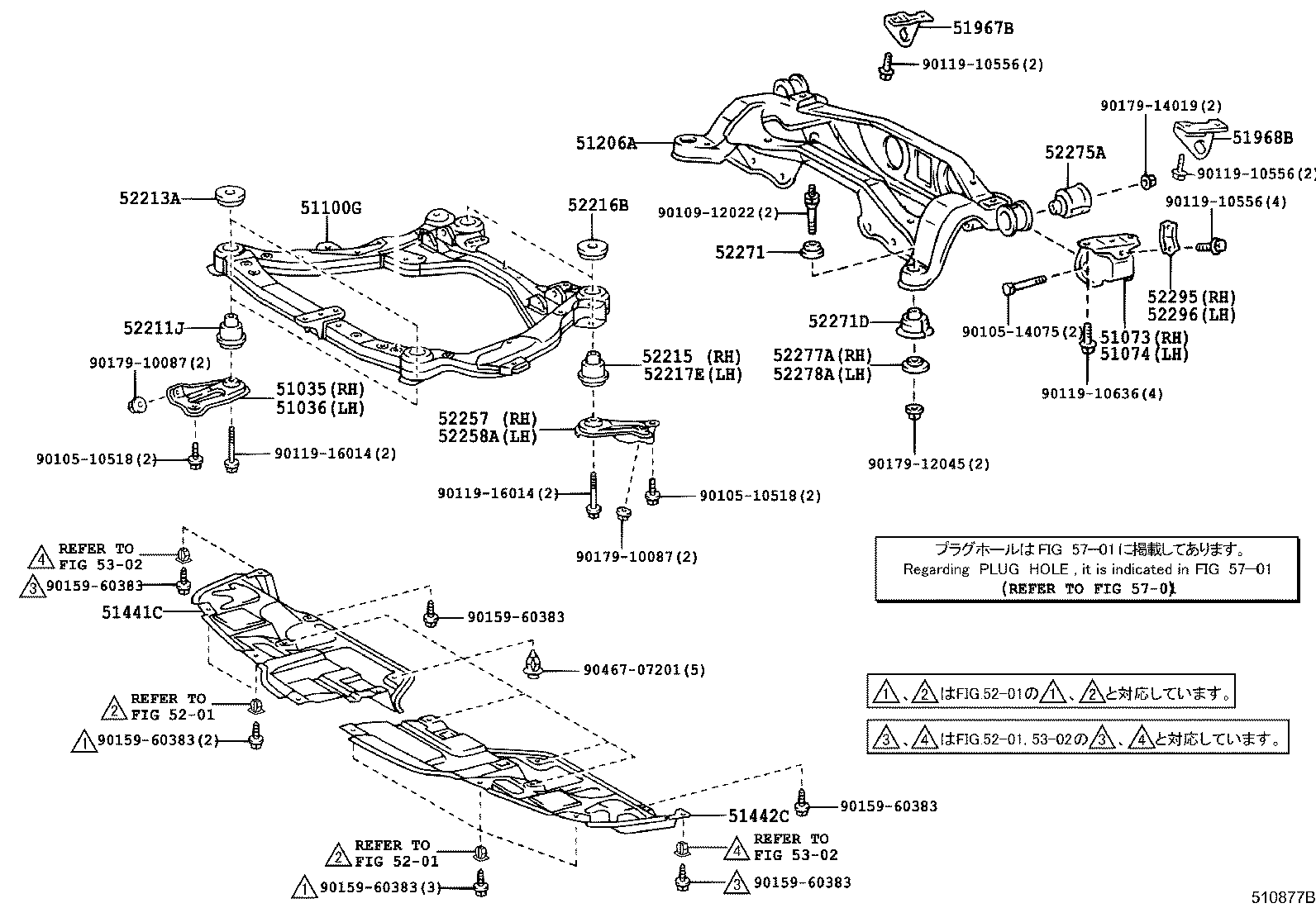

(0109-0208)ACV35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-33020 |
ACV35 |
1 | ||
| 51035-33021 |
ACV35 |
1 | ||
| 51035-33021 |
ACV35 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-33020 |
ACV35 |
1 | ||
| 51036-33021 |
ACV35 |
1 | ||
| 51036-33021 |
ACV35 |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-32010 |
ACV35 |
1 | ||
| 51073-32010 |
ACV35 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-32010 |
ACV35 |
1 | ||
| 51074-32010 |
ACV35 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-33060 |
ACV35 |
1 | ||
| 51100-33081 |
ACV35 |
1 | ||
| 51100-33080 |
ACV35 |
1 | ||
| 51100-33081 |
ACV35 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-33050 |
ACV35 |
1 | ||
| 51206-33050 |
ACV35 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-33040 |
ACV3# |
1 | ||
| 51441-33040 |
ACV3# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-33030 |
ACV3# |
1 | ||
| 51442-33030 |
ACV3# |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-33020 |
ACV3# |
1 | ||
| 51967-33020 |
ACV3# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-33010 |
ACV3# |
1 | ||
| 51968-33010 |
ACV3# |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ACV35 |
2 | ||
| 52211-28020 |
ACV35 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28020 |
ACV35 |
2 | ||
| 52213-28020 |
ACV35 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28020 |
ACV35 |
1 | ||
| 52215-28020 |
ACV35 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28020 |
ACV35 |
2 | ||
| 52216-28020 |
ACV35 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-28020 |
ACV35 |
1 | ||
| 52217-28020 |
ACV35 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-33050 |
ACV35 |
1 | ||
| 51023-33050 |
ACV35 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-33060 |
ACV35 |
1 | ||
| 51024-33060 |
ACV35 |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52272-32010 |
ACV35 |
2 | ||
| 52272-32010 |
ACV35 |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-33020 |
ACV35 |
2 | ||
| 52271-33020 |
ACV35 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-33040 |
ACV35 |
2 | ||
| 52275-33040 |
ACV35 |
2 | ||
| 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32010 |
ACV35 |
1 | ||
| 52277-32010 |
ACV35 |
1 | ||
| 52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH | ||||
| 52277-32010 |
ACV35 |
1 | ||
| 52277-32010 |
ACV35 |
1 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-33010 |
ACV35 |
1 | ||
| 52295-33010 |
ACV35 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-33010 |
ACV35 |
1 | ||
| 52296-33010 |
ACV35 |
1 | ||
| Common parts | ||||
| 90105-10518 | ||||
| 90105-14075 | ||||
| 90109-12022 | ||||
| 90119-10556 | ||||
| 90119-10636 | ||||
| 90119-16014 | ||||
| 90159-60383 | ||||
| 90179-10087 | ||||
| 90179-12045 | ||||
| 90179-14019 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
| 5701 | ||||

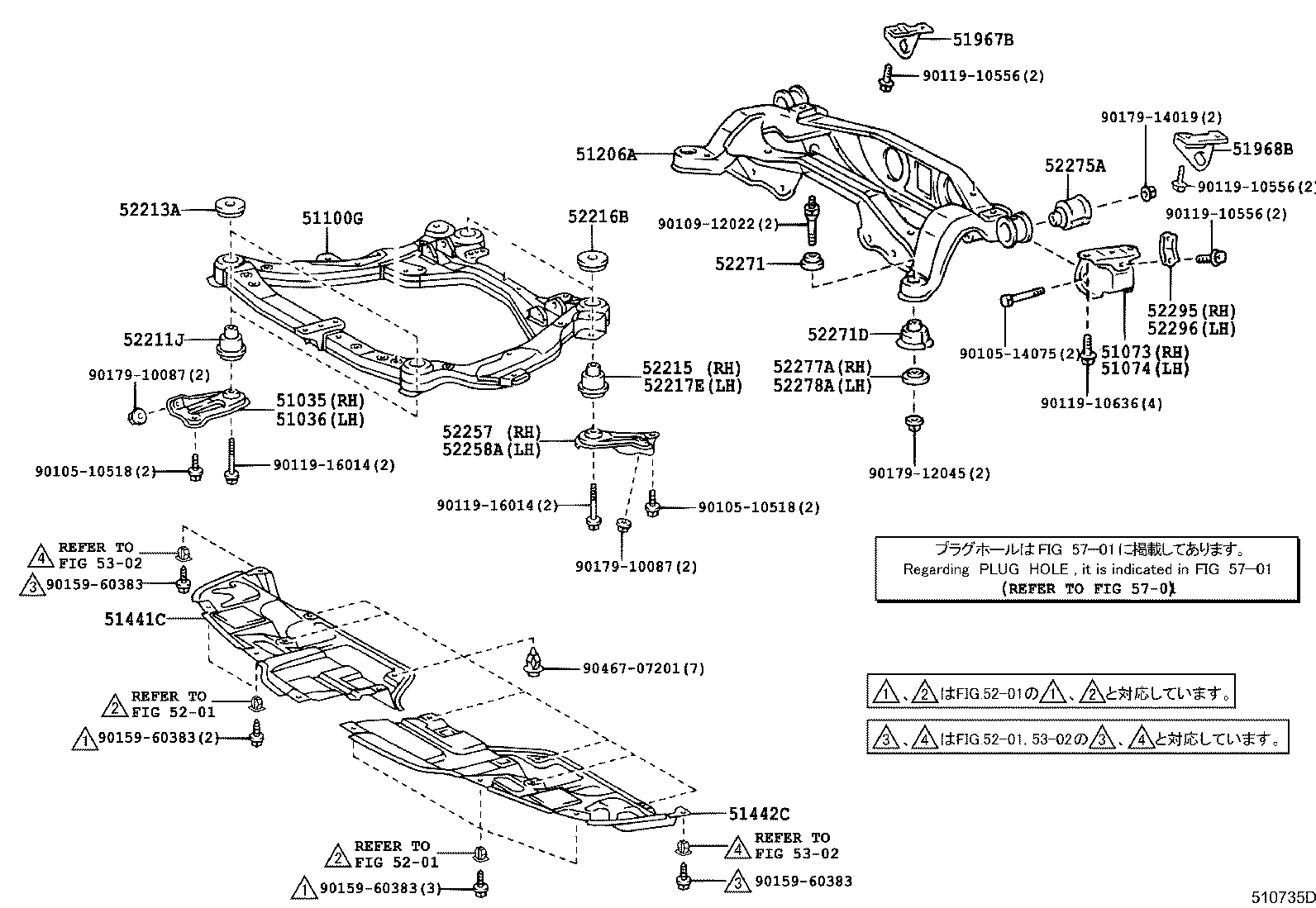

(0208- )ACV35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-33020 |
ACV35 |
1 | ||
| 51035-33021 |
ACV35 |
1 | ||
| 51035-33021 |
ACV35 |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-33020 |
ACV35 |
1 | ||
| 51036-33021 |
ACV35 |
1 | ||
| 51036-33021 |
ACV35 |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-32010 |
ACV35 |
1 | ||
| 51073-32010 |
ACV35 |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-32010 |
ACV35 |
1 | ||
| 51074-32010 |
ACV35 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-33060 |
ACV35 |
1 | ||
| 51100-33081 |
ACV35 |
1 | ||
| 51100-33080 |
ACV35 |
1 | ||
| 51100-33081 |
ACV35 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-33050 |
ACV35 |
1 | ||
| 51206-33050 |
ACV35 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-33040 |
ACV3# |
1 | ||
| 51441-33040 |
ACV3# |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-33030 |
ACV3# |
1 | ||
| 51442-33030 |
ACV3# |
1 | ||
| 51967B - HOOK, TRANSPORT, REAR RH | ||||
| 51967-33020 |
ACV3# |
1 | ||
| 51967-33020 |
ACV3# |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-33010 |
ACV3# |
1 | ||
| 51968-33010 |
ACV3# |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28020 |
ACV35 |
2 | ||
| 52211-28020 |
ACV35 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28020 |
ACV35 |
2 | ||
| 52213-28020 |
ACV35 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28020 |
ACV35 |
1 | ||
| 52215-28020 |
ACV35 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28020 |
ACV35 |
2 | ||
| 52216-28020 |
ACV35 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-28020 |
ACV35 |
1 | ||
| 52217-28020 |
ACV35 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-33050 |
ACV35 |
1 | ||
| 51023-33050 |
ACV35 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-33060 |
ACV35 |
1 | ||
| 51024-33060 |
ACV35 |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52272-32010 |
ACV35 |
2 | ||
| 52272-32010 |
ACV35 |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-33020 |
ACV35 |
2 | ||
| 52271-33020 |
ACV35 |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-33040 |
ACV35 |
2 | ||
| 52275-33040 |
ACV35 |
2 | ||
| 52277A - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-32010 |
ACV35 |
1 | ||
| 52277-32010 |
ACV35 |
1 | ||
| 52278A - RETAINER, REAR SUSPENSION MENBER LOWER STOPPER, LH | ||||
| 52277-32010 |
ACV35 |
1 | ||
| 52277-32010 |
ACV35 |
1 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-33010 |
ACV35 |
1 | ||
| 52295-33010 |
ACV35 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52296-33010 |
ACV35 |
1 | ||
| 52296-33010 |
ACV35 |
1 | ||
| Common parts | ||||
| 90105-10518 | ||||
| 90105-14075 | ||||
| 90109-12022 | ||||
| 90119-10556 | ||||
| 90119-10636 | ||||
| 90119-16014 | ||||
| 90159-60383 | ||||
| 90179-10087 | ||||
| 90179-12045 | ||||
| 90179-14019 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5302 | ||||
| 5701 | ||||
