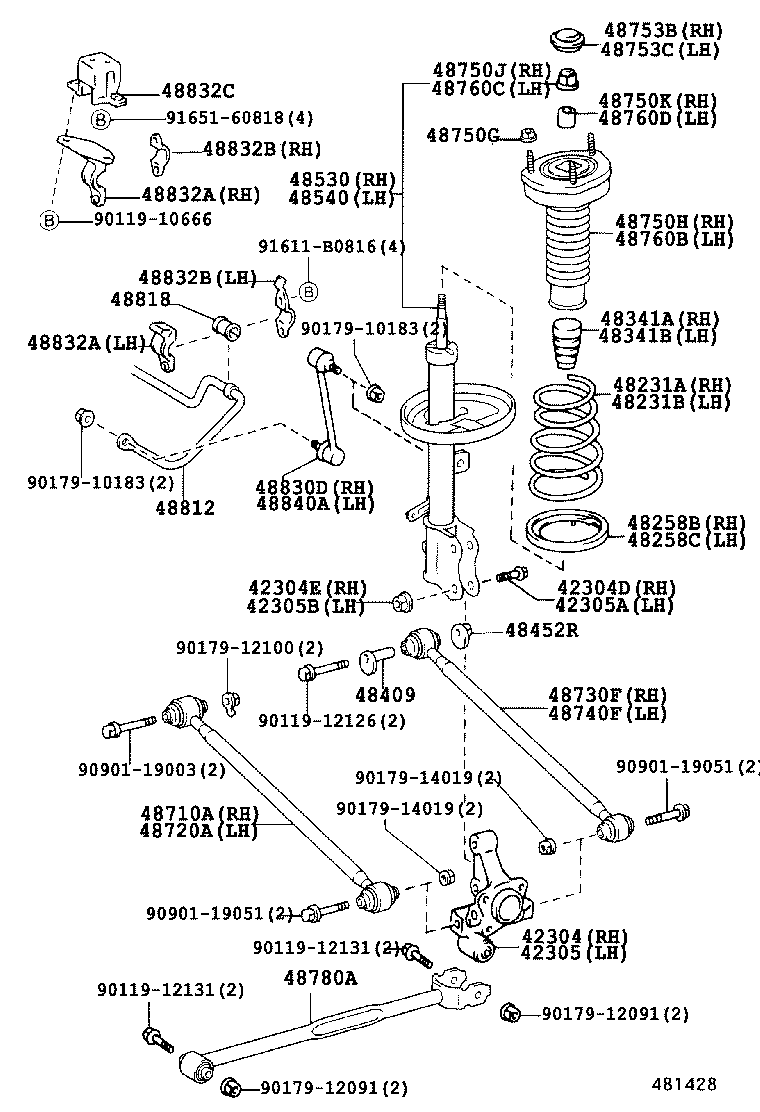

ACV35-AEPNK (2001)
Toyota Camry
(0109- )ACV35
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-33020 |
ACV35 |
1 | ||
| 42304-33020 |
ACV35 |
1 | ||
| 42304D - BOLT (FOR REAR AXLE CARRIER RH) | ||||
| 90901-05001 |
ACV3# |
2 | ||
| 90901-05001 |
ACV3# |
2 | ||
| 42304E - NUT (FOR REAR AXLE CARRIER RH) | ||||
| 90178-15001 |
ACV3# |
2 | ||
| 90178-15001 |
ACV3# |
2 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-33020 |
ACV35 |
1 | ||
| 42305-33020 |
ACV35 |
1 | ||
| 42305A - BOLT (FOR REAR AXLE CARRIER LH) | ||||
| 90901-05001 |
ACV3# |
2 | ||
| 90901-05001 |
ACV3# |
2 | ||
| 42305B - NUT (FOR REAR AXLE CARRIER LH) | ||||
| 90178-15001 |
ACV3# |
2 | ||
| 90178-15001 |
ACV3# |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-33491 |
ACV35 |
1 | ||
| 48231-33491 |
ACV35 |
1 | ||
| 48231-33490 |
ACV35 |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-33491 |
ACV35 |
1 | ||
| 48231-33490 |
ACV35 |
1 | ||
| 48231-33491 |
ACV35 |
1 | ||
| 48258B - INSULATOR, REAR COIL SPRING, LOWER RH | ||||
| 48258-32020 |
ACV3# |
1 | ||
| 48258-32021 |
ACV3# |
1 | ||
| 48258-32021 |
ACV3# |
1 | ||
| 48258C - INSULATOR, REAR COIL SPRING, LOWER LH | ||||
| 48258-33010 |
ACV3# |
1 | ||
| 48258-32020 |
ACV3# |
1 | ||
| 48258-33010 |
ACV3# |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-32053 |
ACV3# |
1 | ||
| 48341-32053 |
ACV3# |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-32053 |
ACV3# |
1 | ||
| 48341-32053 |
ACV3# |
1 | ||
| 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST | ||||
| 48409-32030 |
ACV35 |
2 | ||
| 48409-32030 |
ACV35 |
2 | ||
| 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 | ||||
| 48452-32030 |
ACV35 |
2 | ||
| 48452-32030 |
ACV35 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-39755 |
ACV35 ﾏｰｸ 48530−33270 |
1 | ||
| 48530-80113 |
ACV35 ﾏｰｸ 48530−33271 |
1 | ||
| 48530-80113 |
ACV35 ﾏｰｸ 48530−33271 |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39385 |
ACV35 ﾏｰｸ 48540−33270 |
1 | ||
| 48540-39505 |
ACV35 ﾏｰｸ 48540−33271 |
1 | ||
| 48540-39505 |
ACV35 ﾏｰｸ 48540−33271 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-33090 |
ACV35 |
1 | ||
| 48710-33090 |
ACV35 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-33090 |
ACV35 |
1 | ||
| 48710-33090 |
ACV35 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-33100 |
ACV35 |
1 | ||
| 48730-33100 |
ACV35 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48730-33100 |
ACV35 |
1 | ||
| 48730-33100 |
ACV35 |
1 | ||
| 48750G - NUT(FOR REAR SUSPENSION SUPPORT) | ||||
| 90178-08007 |
ACV3# |
6 | ||
| 90178-08007 |
ACV3# |
6 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-33072 |
ACV35 |
1 | ||
| 48750-33071 |
ACV35 |
1 | ||
| 48750-33071 |
ACV35 |
1 | ||
| 48750-33070 |
ACV35 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90177-14001 |
ACV3# |
1 | ||
| 90177-14001 |
ACV3# |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-15027 |
ACV3# |
1 | ||
| 90387-15027 |
ACV3# |
1 | ||
| 48753B - COVER, REAR SUSPENSION SUPOPORT, NO.1 RH | ||||
| 48753-33010 |
ACV3#..24G |
1 | ||
| 48753-33010 |
ACV3#..24G |
1 | ||
| 48753C - COVER, REAR SUSPENSION SUPOPORT, NO.1 LH | ||||
| 48753-33010 |
ACV3#..24G |
1 | ||
| 48753-33010 |
ACV3#..24G |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48760-33071 |
ACV35 |
1 | ||
| 48760-33070 |
ACV35 |
1 | ||
| 48760-33071 |
ACV35 |
1 | ||
| 48760-33072 |
ACV35 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-14001 |
ACV3# |
1 | ||
| 90177-14001 |
ACV3# |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-15027 |
ACV3# |
1 | ||
| 90387-15027 |
ACV3# |
1 | ||
| 48780A - ROD ASSY, STRUT, REAR | ||||
| 48780-33030 |
ACV35 |
2 | ||
| 48780-33030 |
ACV35 |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-33190 |
ACV35 |
1 | ||
| 48812-33190 |
ACV35 |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-48020 |
ACV3# |
2 | ||
| 48818-48020 |
ACV3# |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-21010 |
ACV35 |
1 | ||
| 48830-21010 |
ACV35 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32070 |
ACV35 右側 |
1 | ||
| 48832-32070 |
ACV35 右側 |
1 | ||
| 48832-32050 |
ACV35 左側 |
1 | ||
| 48832-32050 |
ACV35 左側 |
1 | ||
| 48832A - BRACKET, REAR STABILIZER BAR, NO.1 | ||||
| 48832-32070 |
ACV35 右側 |
1 | ||
| 48832-32070 |
ACV35 右側 |
1 | ||
| 48832-32050 |
ACV35 左側 |
1 | ||
| 48832-32050 |
ACV35 左側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-33030 |
ACV35 左側 |
1 | ||
| 48832-33030 |
ACV35 左側 |
1 | ||
| 48832-32080 |
ACV35 右側 |
1 | ||
| 48832-32080 |
ACV35 右側 |
1 | ||
| 48832B - BRACKET, REAR STABILIZER BAR, NO.2 | ||||
| 48832-33030 |
ACV35 左側 |
1 | ||
| 48832-33030 |
ACV35 左側 |
1 | ||
| 48832-32080 |
ACV35 右側 |
1 | ||
| 48832-32080 |
ACV35 右側 |
1 | ||
| 48832C - BRACKET, REAR STABILIZER BAR, NO.3 | ||||
| 48832-32090 |
ACV35 |
1 | ||
| 48832-32090 |
ACV35 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-21010 |
ACV35 |
1 | ||
| 48830-21010 |
ACV35 |
1 | ||
| Common parts | ||||
| 90119-10666 | ||||
| 90119-12126 | ||||
| 90119-12131 | ||||
| 90179-10183 | ||||
| 90179-12091 | ||||
| 90179-12100 | ||||
| 90179-14019 | ||||
| 90901-19003 | ||||
| 90901-19051 | ||||
| 91611-B0816 | ||||
| 91651-60818 | ||||
