ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )

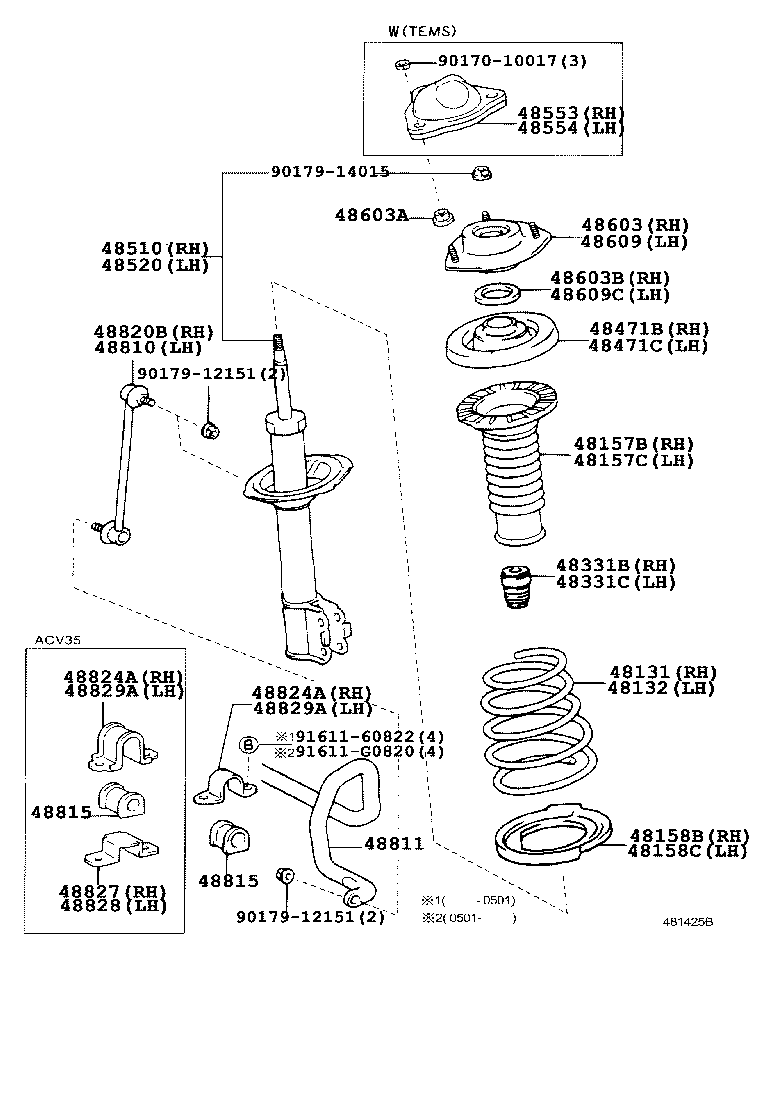

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-3T330 |
ACV35 |
1 | ||
| 48131-3T331 |
ACV35 |
1 | ||
| 48131-3T332 |
ACV35 |
1 | ||
| 48131-3T331 |
ACV35 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-3T331 |
ACV35 |
1 | ||
| 48131-3T331 |
ACV35 |
1 | ||
| 48131-3T330 |
ACV35 |
1 | ||
| 48131-3T332 |
ACV35 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-33061 |
ACV3# |
1 | ||
| 48157-33062 |
ACV3# |
1 | ||
| 48157-33060 |
ACV3# |
1 | ||
| 48157-33062 |
ACV3# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-33062 |
ACV3# |
1 | ||
| 48157-33060 |
ACV3# |
1 | ||
| 48157-33062 |
ACV3# |
1 | ||
| 48157-33061 |
ACV3# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-33031 |
ACV3# |
1 | ||
| 48158-33030 |
ACV3# |
1 | ||
| 48158-33031 |
ACV35 |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-33030 |
ACV3# |
1 | ||
| 48158-33031 |
ACV3# |
1 | ||
| 48158-33031 |
ACV35 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-33040 |
ACV35 |
1 | ||
| 48331-33040 |
ACV35 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-33040 |
ACV35 |
1 | ||
| 48331-33040 |
ACV35 |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41010 |
ACV3# |
1 | ||
| 48471-41010 |
ACV35 |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41010 |
ACV3# |
1 | ||
| 48471-41010 |
ACV35 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80041 |
ACV35 ﾏｰｸ 48510−33450 |
1 | ||
| 48510-80120 |
ACV35 ﾏｰｸ 48510−33451 |
1 | ||
| 48510-80120 |
ACV35 ﾏｰｸ 48510−33451 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-39585 |
ACV35 |
1 | ||
| 48520-39585 |
ACV35 |
1 | ||
| 48520-39475 |
ACV35 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-33150 |
ACV3# |
1 | ||
| 48609-33150 |
ACV3# |
1 | ||
| 48603A - NUT(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90178-10018 |
ACV3#..24G |
6 | ||
| 90178-10018 |
ACV3#..24G |
6 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ACV35 |
1 | ||
| 90903-63014 |
ACV3# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-33150 |
ACV3# |
1 | ||
| 48609-33150 |
ACV3# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ACV35 |
1 | ||
| 90903-63014 |
ACV3# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-33020 |
ACV35 |
1 | ||
| 48810-33020 |
ACV35 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-33150 |
ACV35 |
1 | ||
| 48811-33150 |
ACV35 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-33110 |
ACV35 |
2 | ||
| 48815-33110 |
ACV35 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-33110 |
ACV35 |
2 | ||
| 48815-33110 |
ACV35 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-33030 |
ACV35 |
1 | ||
| 48820-33030 |
ACV35 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-28180 |
ACV35 |
1 | ||
| 48824-28180 |
ACV35 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-28180 |
ACV35 |
1 | ||
| 48824-28180 |
ACV35 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48010 |
ACV35 |
1 | ||
| 48827-48010 |
ACV35 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48010 |
ACV35 |
1 | ||
| 48827-48010 |
ACV35 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-28180 |
ACV35 |
1 | ||
| 48824-28180 |
ACV35 |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-28180 |
ACV35 |
1 | ||
| 48824-28180 |
ACV35 |
1 | ||
| Common parts | ||||
| 90170-10017 | ||||
| 90179-12151 | ||||
| 90179-14015 | ||||
| 91611-60822 | ||||
| 91611-G0820 | ||||
