ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109-0307)ACV35 ; (0307- )

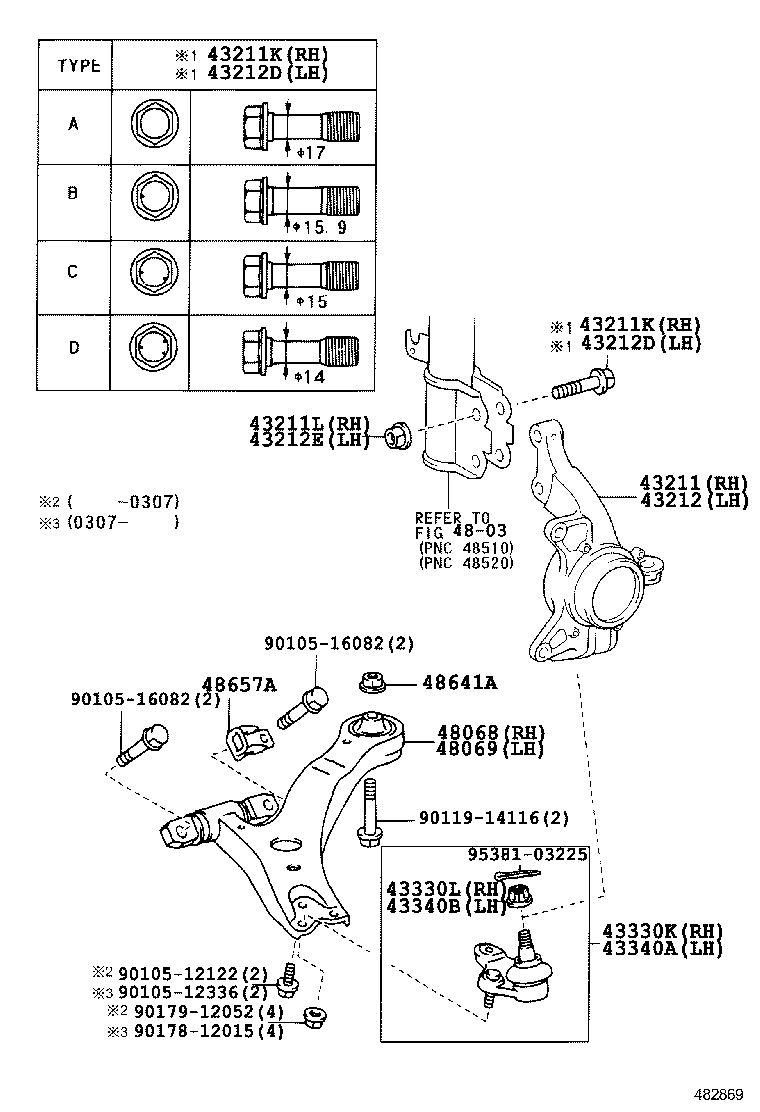

Click highlighted areas on diagram

diagram 43211 43211K 43211K 43211L 43212 43212D 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48069 48641A 48657A 9010512122 9010512336 9010516082 9010516082 9011914116 9017812015 9017912052 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-58020

ACV35

 1
43211-28120

ACV35

 1
43211-58020

ACV35

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17001

ACV3#

 2
90178-17001

ACV3#

 2
43212 - KNUCKLE, STEERING, LH
43212-58020

ACV35

 1
43212-58020

ACV35

 1
43212-28100

ACV35

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV35

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV35

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17010

ACV3#

外径=15,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17008

ACV3#

外径=17,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 2
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17011

ACV3#

外径=14,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90105-17009

ACV3#

外径=15.9,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17001

ACV3#

 2
90178-17001

ACV35

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29405

ACV3#

 1
43330-29405

ACV3#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ACV3#

 1
90171-14003

ACV3#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29175

ACV3#

 1
43340-29175

ACV3#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ACV3#

 1
90171-14003

ACV3#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-33050

ACV3#

 1
48068-33050

ACV3#

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-33050

ACV3#

 1
48069-33050

ACV3#

 1
48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT)
90179-14068

ACV3#

 2
90179-14068

ACV3#

 2
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

ACV3#

 2
48657-28010

ACV3#

 2
Common parts
90105-12122
90105-12336
90105-16082
90119-14116
90178-12015
90179-12052
95381-03225
Linked diagrams
4803
