ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )ACV35

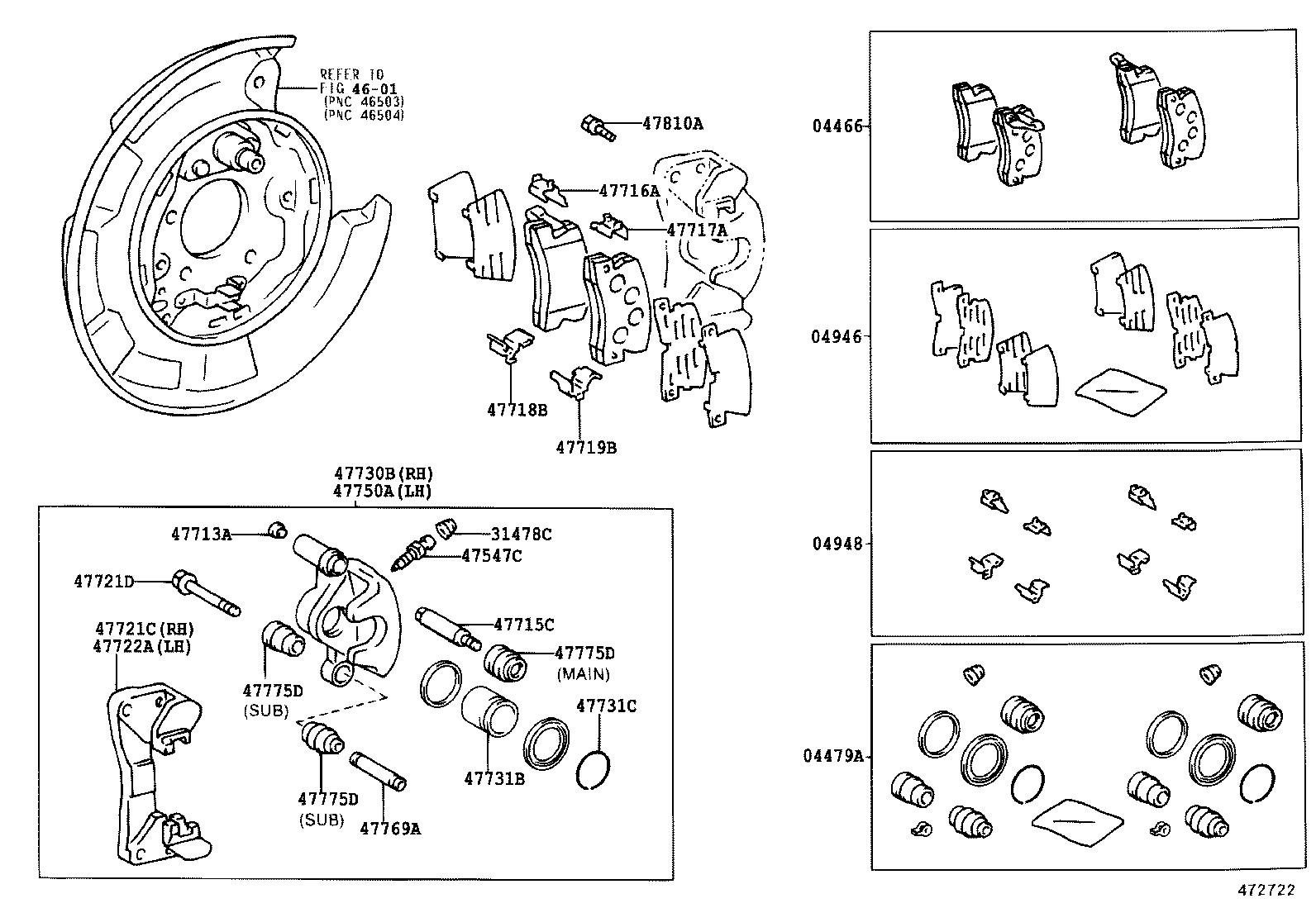

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-33050 |
ACV35 ﾏｰｸ AK PA544 |
1 | ||
| 04466-33150 |
ACV35 ﾏｰｸ AK PA561 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-33160 |
ACV35 |
1 | ||
| 04479-33160 |
ACV35 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-32070 |
ACV35 |
1 | ||
| 04946-32070 |
ACV35 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-33010 |
ACV35 |
1 | ||
| 04948-33010 |
ACV35 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ACV3# |
2 | ||
| 31478-30010 |
ACV3# |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ACV3# |
2 | ||
| 47547-20010 |
ACV3# |
2 | ||
| 47713A - PLUG, HOLE(FOR REAR DISC BRAKE CYLINDER) | ||||
| 90950-01538 |
ACV35 |
2 | ||
| 90950-01538 |
ACV35 |
2 | ||
| 47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) | ||||
| 47715-33020 |
ACV35 |
2 | ||
| 47715-33020 |
ACV35 |
2 | ||
| 47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE) | ||||
| 47716-33070 |
ACV35 |
2 | ||
| 47716-33070 |
ACV35 |
2 | ||
| 47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE) | ||||
| 47717-33050 |
ACV35 |
2 | ||
| 47717-33050 |
ACV35 |
2 | ||
| 47718B - PLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE) | ||||
| 47718-33010 |
ACV35 |
2 | ||
| 47718-33010 |
ACV35 |
2 | ||
| 47719B - PLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE) | ||||
| 47719-33010 |
ACV35 |
2 | ||
| 47719-33010 |
ACV35 |
2 | ||
| 47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47721-20321 |
ACV35 |
1 | ||
| 47721-20321 |
ACV35 |
1 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90119-08A98 |
ACV35 *8−1.25PX68−30 |
2 | ||
| 90119-08A98 |
ACV35 *8−1.25PX68−30 |
2 | ||
| 47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47721-20321 |
ACV35 |
1 | ||
| 47721-20321 |
ACV35 |
1 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47730-33051 |
ACV35 |
1 | ||
| 47730-33051 |
ACV35 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47731-20130 |
ACV35 |
2 | ||
| 47731-20130 |
ACV35 |
2 | ||
| 47731C - RING, SET(FOR REAR DISC BRAKE PISTON) | ||||
| 90522-43003 |
ACV35 |
2 | ||
| 90522-43003 |
ACV35 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47750-33051 |
ACV35 |
1 | ||
| 47750-33051 |
ACV35 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-32020 |
ACV35 |
2 | ||
| 47769-32020 |
ACV35 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-32020 |
ACV35 ﾒｲﾝ |
2 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47775-16020 |
ACV35 ｻﾌﾞ |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-10445 |
ACV35 |
4 | ||
| 90119-10445 |
ACV35 |
4 | ||
| Linked diagrams | ||||
| 4601 | ||||
