ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

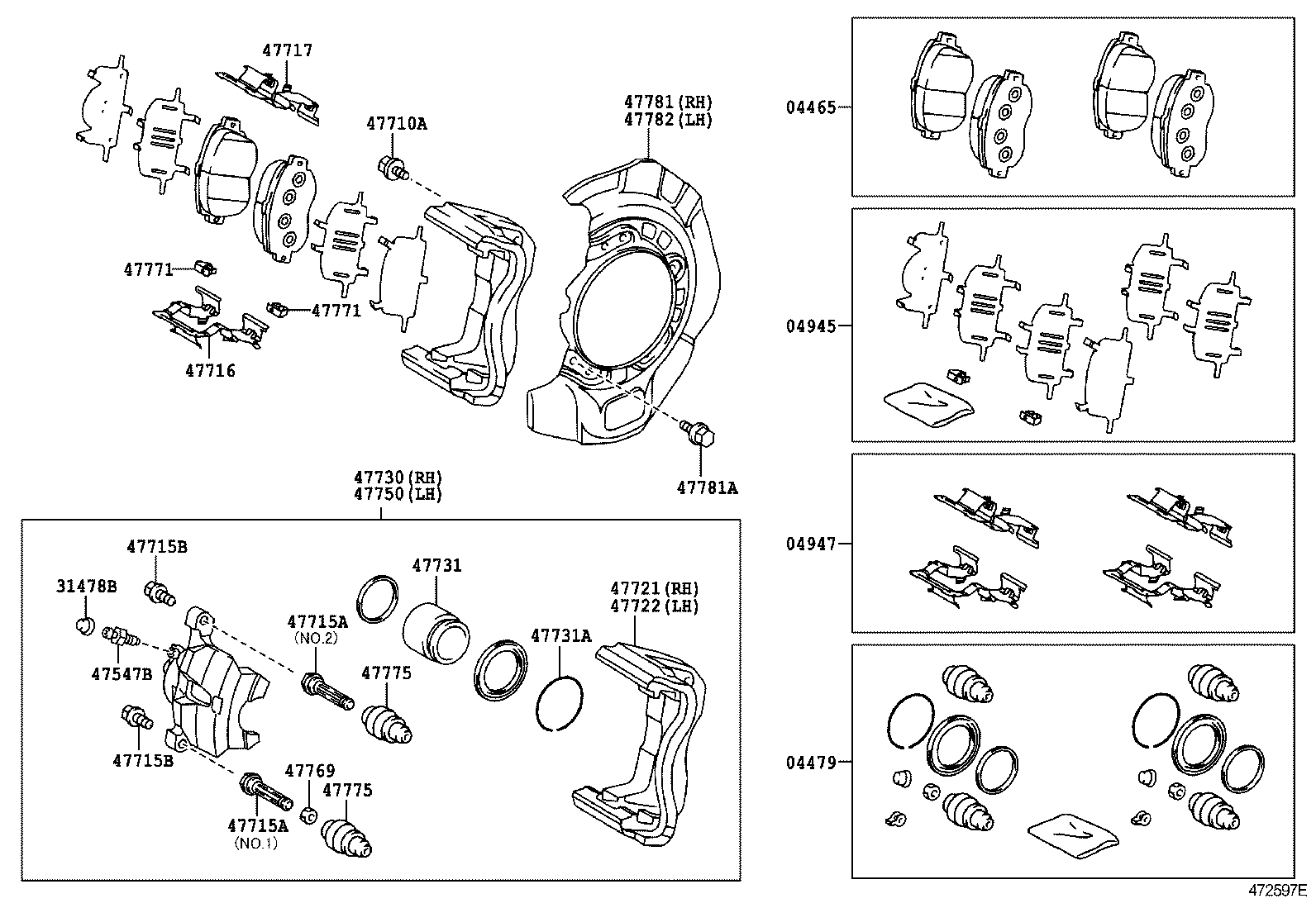

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47721 47722 47730 47731 47731A 47750 47769 47771 47771 47775 47775 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-33240

ACV3#

ﾏｰｸ AK PA533

 1
04465-33240

ACV3#

ﾏｰｸ AK PA533

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-33150

ACV3#

 1
04479-33150

ACV3#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-33090

ACV3#

 1
04945-33090

ACV3#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-33170

ACV3#

 1
04947-33170

ACV3#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ACV3#

 2
31478-30010

ACV3#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ACV3#

 2
47547-20010

ACV3#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ACV3#

*12−1.25PX29.5−23

 4
90105-12208

ACV3#

*12−1.25PX29.5−23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

ACV3#

NO.1

 2
47715-22070

ACV3#

NO.1

 2
47715-33050

ACV3#

NO.2

 2
47715-33050

ACV3#

NO.2

 2
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

ACV3#

NO.1

 2
47715-22070

ACV3#

NO.1

 2
47715-33050

ACV3#

NO.2

 2
47715-33050

ACV3#

NO.2

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ACV3#

 4
90105-08164

ACV3#

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

ACV3#

 4
90105-08164

ACV3#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-33110

ACV3#

 2
47716-33110

ACV3#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-33080

ACV3#

 2
47717-33080

ACV3#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-33130

ACV3#

 1
47721-33130

ACV3#

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-33130

ACV3#

 1
47721-33130

ACV3#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-33190

ACV3#

 1
47730-33190

ACV3#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-33090

ACV3#

 2
47731-33090

ACV3#

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76002

ACV3#

 2
90522-76002

ACV3#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-33190

ACV3#

 1
47750-33190

ACV3#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

ACV3#

 2
47769-50010

ACV3#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30090

ACV3#

 4
47771-30090

ACV3#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30090

ACV3#

 4
47771-30090

ACV3#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

ACV3#

 4
47775-30070

ACV3#

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

ACV3#

 4
47775-30070

ACV3#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-28200

ACV3#

 1
47781-28200

ACV35

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06227

ACV3#

 8
90119-06227

ACV3#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-28200

ACV35

 1
47782-28200

ACV3#

 1
