ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

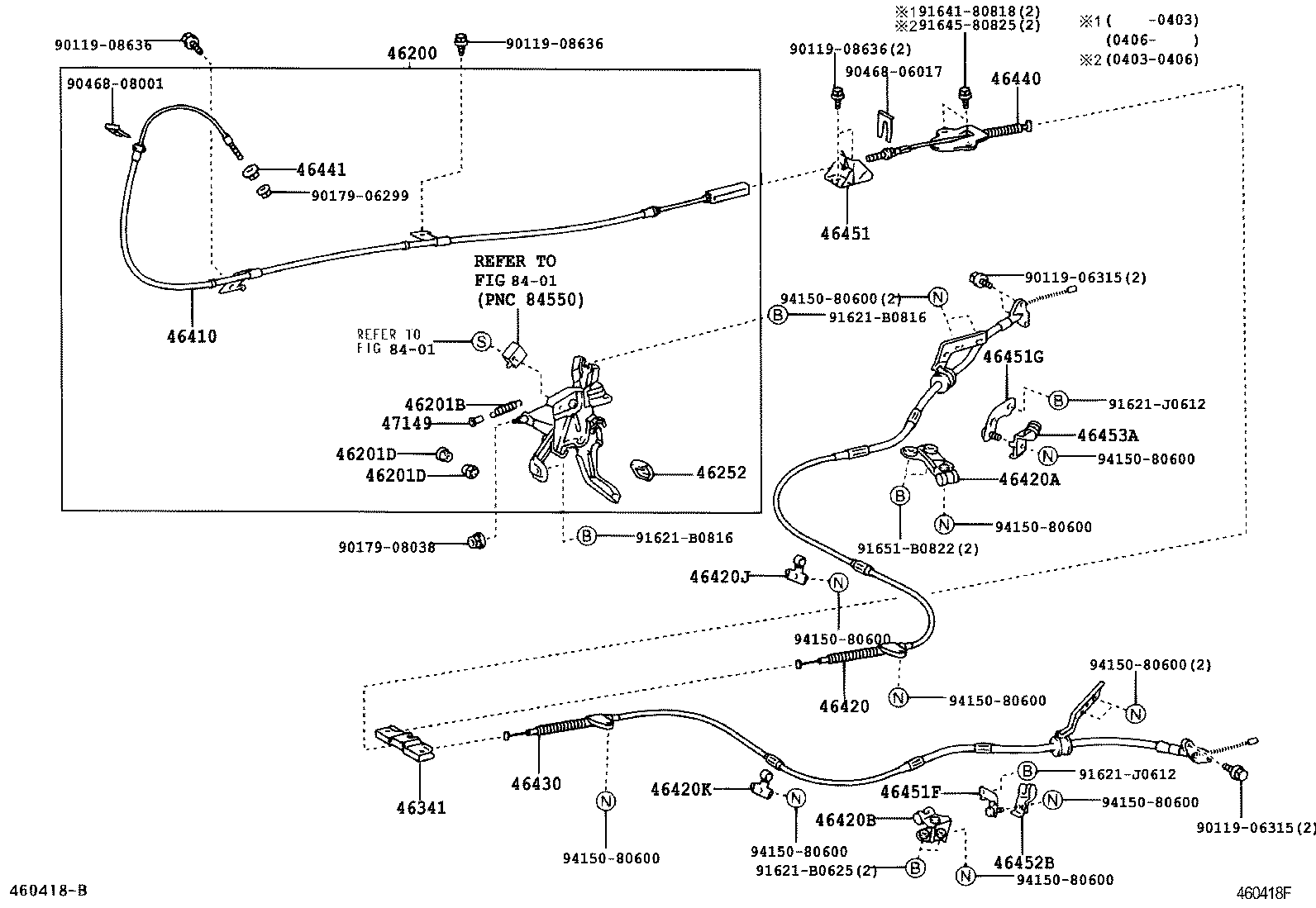

ILLUST NO. 1 OF 2(0109- )ACV35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-33070 |
ACV3# |
1 | ||
| 46200-33070 |
ACV3# |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-19005 |
ACV3# |
1 | ||
| 90506-19005 |
ACV3# |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
ACV3# |
2 | ||
| 90386-16022 |
ACV3# |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
ACV3# |
2 | ||
| 90386-16022 |
ACV3# |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-63010 |
ACV3# |
1 | ||
| 46252-63010 |
ACV3# |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-20070 |
ACV3# |
1 | ||
| 46341-20070 |
ACV3# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-33140 |
ACV3# |
1 | ||
| 46410-33140 |
ACV3# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-33110 |
ACV35 |
1 | ||
| 46420-33110 |
ACV35 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B26 |
ACV35 |
1 | ||
| 90949-01B26 |
ACV35 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B27 |
ACV35 |
1 | ||
| 90949-01B27 |
ACV35 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B28 |
ACV35 |
1 | ||
| 90949-01B28 |
ACV35 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
ACV35 |
1 | ||
| 90949-01664 |
ACV35 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-33110 |
ACV35 |
1 | ||
| 46430-33110 |
ACV35 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-33030 |
ACV3# |
1 | ||
| 46440-33030 |
ACV3# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-12010 |
ACV3# |
1 | ||
| 46441-12010 |
ACV3# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33040 |
ACV3# |
1 | ||
| 46451-33040 |
ACV3# |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-33050 |
ACV35 |
1 | ||
| 46451-33050 |
ACV35 |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-33060 |
ACV35 |
1 | ||
| 46451-33060 |
ACV35 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 46452-33010 |
ACV35 |
1 | ||
| 46452-33010 |
ACV35 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46451-33070 |
ACV35 |
1 | ||
| 46451-33070 |
ACV35 |
1 | ||
| 47149 - DAMPER, RETURN SPRING | ||||
| 47149-22010 |
ACV3# |
1 | ||
| 47149-22010 |
ACV3# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-08636 | ||||
| 90179-06299 | ||||
| 90179-08038 | ||||
| 90468-06017 | ||||
| 90468-08001 | ||||
| 91621-B0625 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91641-80818 | ||||
| 91645-80825 | ||||
| 91651-B0822 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

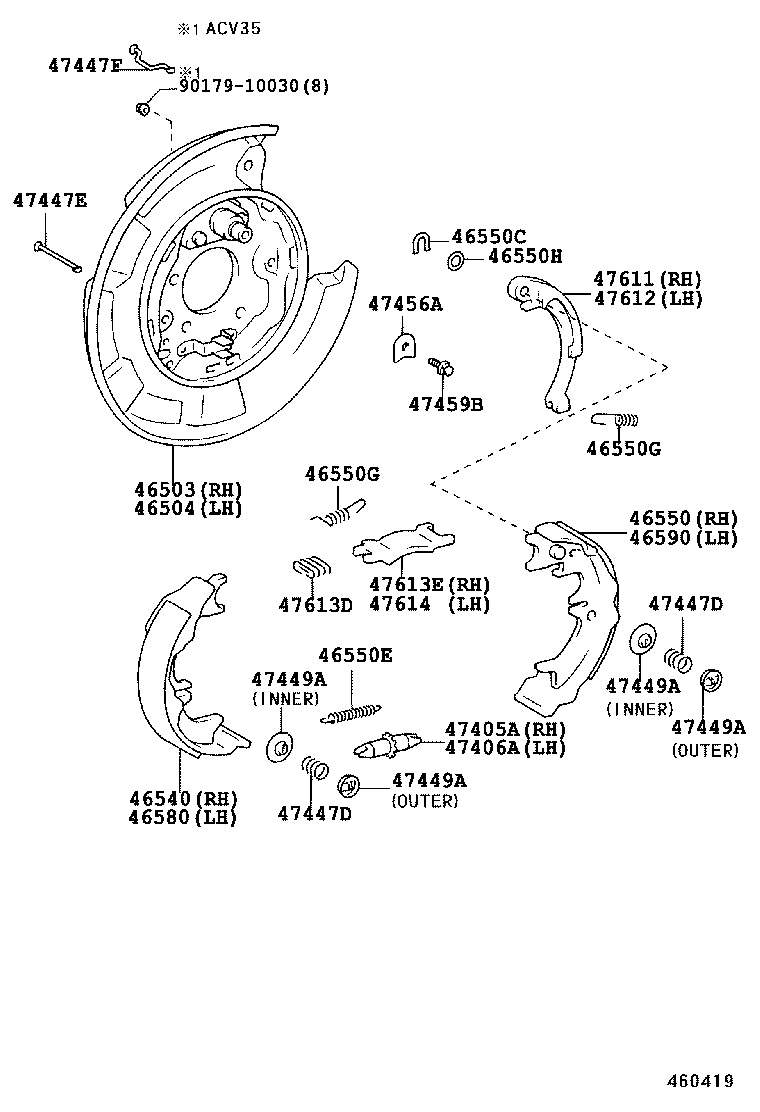

ILLUST NO. 2 OF 2(0109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-33020 |
ACV35 |
1 | ||
| 46503-33020 |
ACV35 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-33020 |
ACV35 |
1 | ||
| 46504-33020 |
ACV35 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20070 |
ACV3# |
1 | ||
| 46540-20070 |
ACV3# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-33020 |
ACV3# |
1 | ||
| 46550-33020 |
ACV3# |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
ACV3# |
2 | ||
| 90213-07018 |
ACV3# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
ACV3# |
2 | ||
| 90506-12010 |
ACV3# |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ACV3# |
4 | ||
| 90507-16009 |
ACV3# |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
ACV3# |
4 | ||
| 90507-16009 |
ACV3# |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
ACV3# 厚さ=0.3 |
1 | ||
| 90564-09185 |
ACV3# 厚さ=0.6 |
1 | ||
| 90564-09186 |
ACV3# 厚さ=0.9 |
1 | ||
| 90564-09184 |
ACV3# 厚さ=0.3 |
1 | ||
| 90564-09185 |
ACV3# 厚さ=0.6 |
1 | ||
| 90564-09186 |
ACV3# 厚さ=0.9 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20070 |
ACV3# |
1 | ||
| 46540-20070 |
ACV3# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-33020 |
ACV3# |
1 | ||
| 46590-33020 |
ACV3# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
ACV3# |
1 | ||
| 47405-30040 |
ACV3# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
ACV3# |
1 | ||
| 47406-30040 |
ACV3# |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ACV3# |
4 | ||
| 90501-14049 |
ACV3# |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
ACV3# |
4 | ||
| 90501-14049 |
ACV3# |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
ACV3# |
2 | ||
| 47447-20030 |
ACV3# |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
ACV3# |
2 | ||
| 47447-22020 |
ACV3# |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-30030 |
ACV3# 外側 |
4 | ||
| 47449-32010 |
ACV3# 内側 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
ACV3# |
2 | ||
| 47456-33010 |
ACV3# |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
ACV3# |
2 | ||
| 47459-30010 |
ACV3# |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
ACV3# |
1 | ||
| 47611-20030 |
ACV3# |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
ACV3# |
1 | ||
| 47612-20030 |
ACV3# |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
ACV3# |
2 | ||
| 90504-14002 |
ACV3# |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
ACV3# |
1 | ||
| 47613-20040 |
ACV3# |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
ACV3# |
1 | ||
| 47614-20010 |
ACV3# |
1 | ||
| Common parts | ||||
| 90179-10030 | ||||
