ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

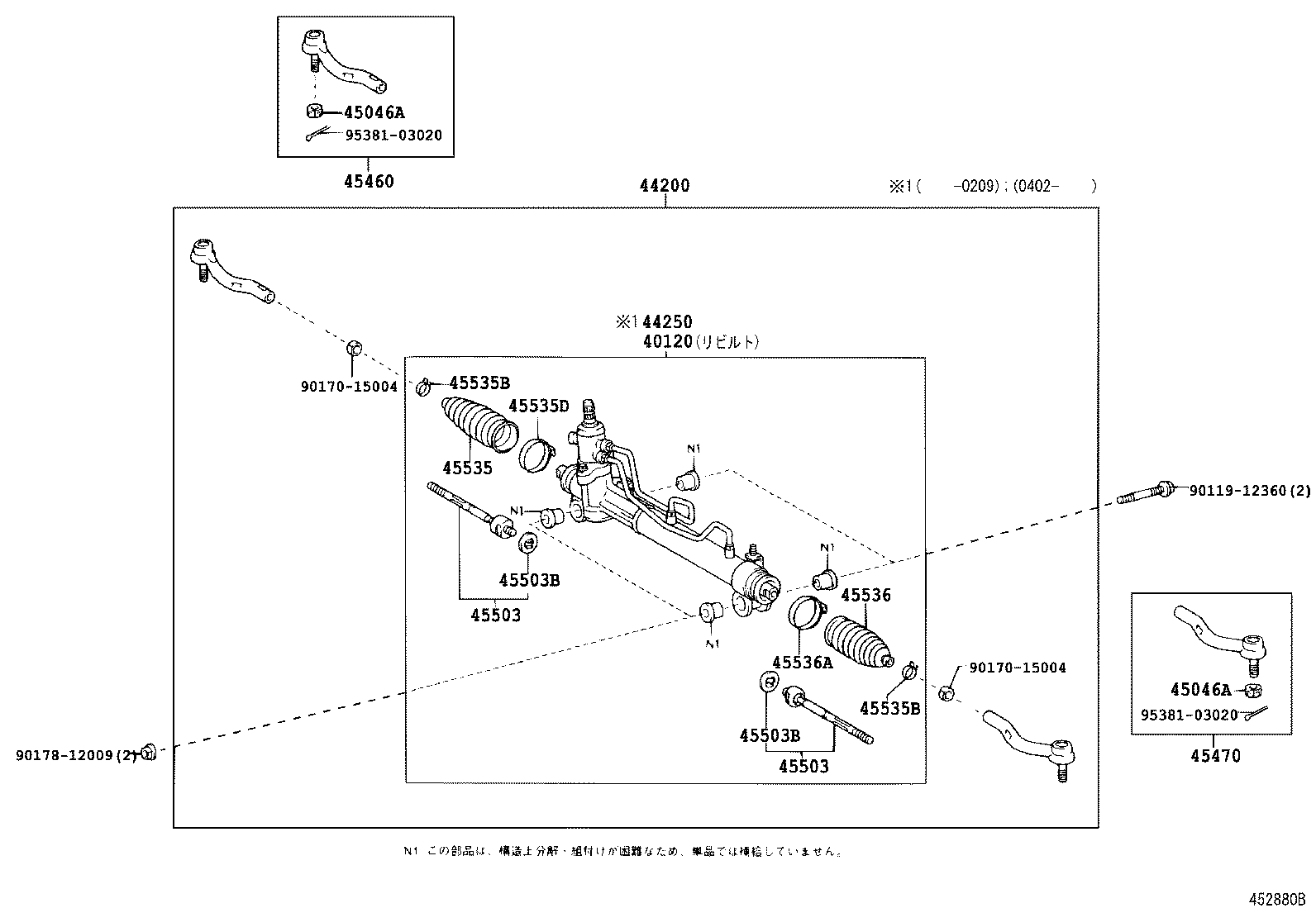

ILLUST NO. 1 OF 2(0109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-33400 |
ACV35 |
1 | ||
| 40120-33430 |
ACV35 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 40120-33401 |
ACV35 |
1 | ||
| 40120-33401 |
ACV35 |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-33400 |
ACV35 |
1 | ||
| 44200-33431 |
ACV35 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 44200-33402 |
ACV35 |
1 | ||
| 44200-33401 |
ACV35 |
1 | ||
| 44200-33430 |
ACV35 ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 44200-33402 |
ACV35 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-33401 |
ACV35 |
1 | ||
| 44250-33400 |
ACV35 |
1 | ||
| 44250-33401 |
ACV35 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACV3# |
2 | ||
| 90171-12028 |
ACV3# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACV3# |
2 | ||
| 90171-12028 |
ACV3# |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39635 |
ACV3# |
1 | ||
| 45460-39615 |
ACV3# |
1 | ||
| 45460-39635 |
ACV3# |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-39225 |
ACV3# |
1 | ||
| 45470-39225 |
ACV3# |
1 | ||
| 45470-39215 |
ACV3# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49085 |
ACV35 |
2 | ||
| 45503-49085 |
ACV35 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49085 |
ACV35 |
2 | ||
| 45503-49085 |
ACV35 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACV3# 外径=35.2 |
2 | ||
| 90214-14009 |
ACV3# 外径=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
ACV3# 外径=35.2 |
2 | ||
| 90214-14009 |
ACV3# 外径=35.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-06030 |
ACV3# (L) |
1 | ||
| 45535-06030 |
ACV3# (L) |
1 | ||
| 45535-33030 |
ACV3# (J) |
1 | ||
| 45535-33030 |
ACV3# (J) |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACV3# (J) |
2 | ||
| 90467-19021 |
ACV3# (J) |
2 | ||
| 90080-46153 |
ACV3# (L) |
2 | ||
| 90467-19021 |
ACV3# |
2 | ||
| 90080-46153 |
ACV3# (L) |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACV3# (J) |
2 | ||
| 90467-19021 |
ACV3# (J) |
2 | ||
| 90080-46153 |
ACV3# (L) |
2 | ||
| 90467-19021 |
ACV3# |
2 | ||
| 90080-46153 |
ACV3# (L) |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-58007 |
ACV3# (J) |
1 | ||
| 90080-46293 |
ACV3# (L) |
1 | ||
| 90080-46293 |
ACV3# (L) |
1 | ||
| 90460-58007 |
ACV3# (J) |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-33030 |
ACV3# (J) |
1 | ||
| 45535-06030 |
ACV3# (L) |
1 | ||
| 45535-06030 |
ACV3# (L) |
1 | ||
| 45535-33030 |
ACV3# (J) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90080-46293 |
ACV3# (L) |
1 | ||
| 90460-58007 |
ACV3# (J) |
1 | ||
| 90460-58007 |
ACV3# (J) |
1 | ||
| 90080-46293 |
ACV3# (L) |
1 | ||
| Common parts | ||||
| 90119-12360 | ||||
| 90170-15004 | ||||
| 90178-12009 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(0109- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-48010 |
ACV3# |
1 | ||
| 04445-48010 |
ACV3# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-48020 |
ACV3# |
1 | ||
| 04455-48020 |
ACV3# |
1 | ||
