ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )

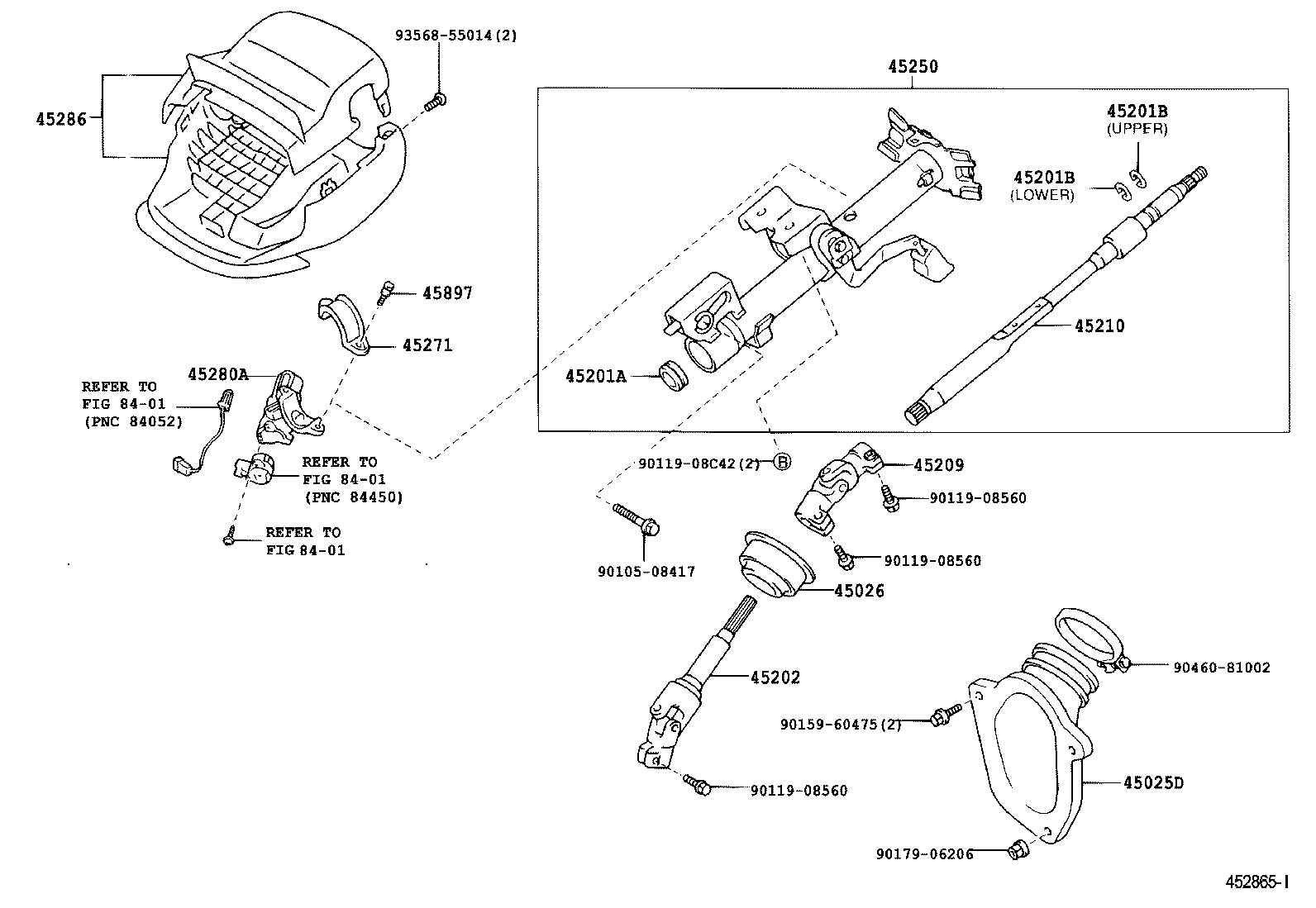

Click highlighted areas on diagram

diagram 45025D 45026 45201A 45201B 45201B 45202 45209 45210 45250 45271 45280A 45286 45897 8401 8401 8401 9010508417 9011908560 9011908560 9011908560 9011908C42 9015960475 9017906206 9046081002 9356855014
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-33080

ACV35

 1
45025-33080

ACV35

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-33050

ACV3#

 1
45026-33050

ACV3#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010

ACV3#

 1
45274-42010

ACV3#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ACV3#

厚さ=1.20,下側

 1
90520-17042

ACV3#

厚さ=1.20,下側

 1
90520-17269

ACV3#

厚さ=1.20,上側

 1
90520-17269

ACV3#

厚さ=1.20,上側

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

ACV3#

厚さ=1.20,下側

 1
90520-17042

ACV3#

厚さ=1.20,下側

 1
90520-17269

ACV3#

厚さ=1.20,上側

 1
90520-17269

ACV3#

厚さ=1.20,上側

 1
45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE
45202-33100

ACV35

 1
45202-33100

ACV35

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-33010

ACV3#

 1
45209-33010

ACV3#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-33080

ACV35

 1
45210-33080

ACV35

 1
45250 - COLUMN ASSY, STEERING
45250-33520

ACV35

 1
45250-33520

ACV35

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

ACV3#

 1
45271-16020

ACV3#

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-33150

ACV3#

 1
45280-33150

ACV3#

 1
45280-33100

ACV3#

 1
45286 - COVER, STEERING COLUMN
45286-33921E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
45286-33929E0

ACV3#..24G

SANDAL WOOD,TRIM4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ACV3#

 2
45897-12020

ACV3#

 2
Common parts
90105-08417
90119-08560
90119-08C42
90159-60475
90179-06206
90460-81002
93568-55014
Linked diagrams
8401
