ACV35-AEPNK (2001)
Toyota Camry
(0109- )
U140F,U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33621D - LABEL, TRANSAXLE OIL INFORMATION | ||||
| 33621-16060 |
ACV35 |
1 | ||
| 33621-16060 |
ACV35 |
1 | ||
| 33621-42010 |
ACV35 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-28042 |
ACV35 |
1 | ||
| 35105-28043 |
ACV35 |
1 | ||
| 35105-28042 |
ACV35 |
1 | ||
| 35111D - SEAL, OIL (FOR TRANSAXLE HOUSING) | ||||
| 90311-55003 |
ACV35 |
1 | ||
| 90311-55003 |
ACV35 |
1 | ||
| 90311-55005 |
ACV35 |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41211-28100 |
ACV35 |
1 | ||
| 41211-28100 |
ACV35 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28120 |
ACV35 |
1 | ||
| 41221-28120 |
ACV35 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ACV35 |
14 | ||
| 90105-12303 |
ACV35 |
14 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-28100 |
ACV35 |
1 | ||
| 41301-28100 |
ACV35 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-79001 |
ACV35 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-79003 |
ACV35 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-79002 |
ACV35 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-79005 |
ACV35 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-79006 |
ACV35 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-79004 |
ACV35 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-79009 |
ACV35 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-79012 |
ACV35 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-79018 |
ACV35 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-79015 |
ACV35 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-79010 |
ACV35 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-79014 |
ACV35 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-79016 |
ACV35 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-79017 |
ACV35 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-79013 |
ACV35 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-79011 |
ACV35 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-79008 |
ACV35 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-79001 |
ACV35 厚さ=2.00,ﾏｰｸ 0 |
1 | ||
| 90564-79007 |
ACV35 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-79006 |
ACV35 厚さ=2.25,ﾏｰｸ 5 |
1 | ||
| 90564-79004 |
ACV35 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90564-79012 |
ACV35 厚さ=2.55,ﾏｰｸ B |
1 | ||
| 90564-79008 |
ACV35 厚さ=2.35,ﾏｰｸ 7 |
1 | ||
| 90564-79002 |
ACV35 厚さ=2.05,ﾏｰｸ 1 |
1 | ||
| 90564-79003 |
ACV35 厚さ=2.10,ﾏｰｸ 2 |
1 | ||
| 90564-79009 |
ACV35 厚さ=2.40,ﾏｰｸ 8 |
1 | ||
| 90564-79016 |
ACV35 厚さ=2.75,ﾏｰｸ F |
1 | ||
| 90564-79018 |
ACV35 厚さ=2.85,ﾏｰｸ H |
1 | ||
| 90564-79005 |
ACV35 厚さ=2.20,ﾏｰｸ 4 |
1 | ||
| 90564-79094 |
ACV35 厚さ=2.225,ﾏｰｸ N |
1 | ||
| 90564-79011 |
ACV35 厚さ=2.50,ﾏｰｸ A |
1 | ||
| 90564-79014 |
ACV35 厚さ=2.65,ﾏｰｸ D |
1 | ||
| 90564-79091 |
ACV35 厚さ=2.075,ﾏｰｸ K |
1 | ||
| 90564-79007 |
ACV35 厚さ=2.30,ﾏｰｸ 6 |
1 | ||
| 90564-79100 |
ACV35 厚さ=2.525,ﾏｰｸ U |
1 | ||
| 90564-79010 |
ACV35 厚さ=2.45,ﾏｰｸ 9 |
1 | ||
| 90564-79015 |
ACV35 厚さ=2.70,ﾏｰｸ E |
1 | ||
| 90564-79092 |
ACV35 厚さ=2.125,ﾏｰｸ L |
1 | ||
| 90564-79095 |
ACV35 厚さ=2.275,ﾏｰｸ P |
1 | ||
| 90564-79101 |
ACV35 厚さ=2.575,ﾏｰｸ V |
1 | ||
| 90564-79013 |
ACV35 厚さ=2.60,ﾏｰｸ C |
1 | ||
| 90564-79093 |
ACV35 厚さ=2.175,ﾏｰｸ M |
1 | ||
| 90564-79090 |
ACV35 厚さ=2.025,ﾏｰｸ J |
1 | ||
| 90564-79102 |
ACV35 厚さ=2.625,ﾏｰｸ W |
1 | ||
| 90564-79105 |
ACV35 厚さ=2.775,ﾏｰｸ AA |
1 | ||
| 90564-79099 |
ACV35 厚さ=2.475,ﾏｰｸ T |
1 | ||
| 90564-79098 |
ACV35 厚さ=2.425,ﾏｰｸ S |
1 | ||
| 90564-79096 |
ACV35 厚さ=2.325,ﾏｰｸ Q |
1 | ||
| 90564-79103 |
ACV35 厚さ=2.675,ﾏｰｸ X |
1 | ||
| 90564-79017 |
ACV35 厚さ=2.80,ﾏｰｸ G |
1 | ||
| 90564-79104 |
ACV35 厚さ=2.725,ﾏｰｸ Y |
1 | ||
| 90564-79097 |
ACV35 厚さ=2.375,ﾏｰｸ R |
1 | ||
| 90564-79106 |
ACV35 厚さ=2.825,ﾏｰｸ AB |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-62004 |
ACV35 |
1 | ||
| 90366-62004 |
ACV35 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50057 |
ACV35 |
1 | ||
| 90366-50057 |
ACV35 |
1 | ||
| 90366-50106 |
ACV35 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-33010 |
ACV35 |
2 | ||
| 41331-48050 |
ACV35 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-33010 |
ACV35 |
2 | ||
| 41331-48050 |
ACV35 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-48040 |
ACV35 |
2 | ||
| 41341-48010 |
ACV35 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-48040 |
ACV35 |
2 | ||
| 41341-48010 |
ACV35 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ACV3# |
1 | ||
| 90250-06058 |
ACV3# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28020 |
ACV35 |
1 | ||
| 41342-28020 |
ACV35 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33011 |
ACV35 |
2 | ||
| 41351-33011 |
ACV35 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33011 |
ACV35 |
2 | ||
| 41351-33011 |
ACV35 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-33080 |
ACV35 厚さ=1.725 |
2 | ||
| 41363-33010 |
ACV35 厚さ=1.825 |
2 | ||
| 41362-33080 |
ACV35 厚さ=1.725 |
2 | ||
| 41361-33010 |
ACV35 厚さ=1.625 |
2 | ||
| 41361-33010 |
ACV35 厚さ=1.625 |
2 | ||
| 41363-33010 |
ACV35 厚さ=1.825 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41362-33080 |
ACV35 厚さ=1.725 |
2 | ||
| 41363-33010 |
ACV35 厚さ=1.825 |
2 | ||
| 41362-33080 |
ACV35 厚さ=1.725 |
2 | ||
| 41361-33010 |
ACV35 厚さ=1.625 |
2 | ||
| 41361-33010 |
ACV35 厚さ=1.625 |
2 | ||
| 41363-33010 |
ACV35 厚さ=1.825 |
2 | ||

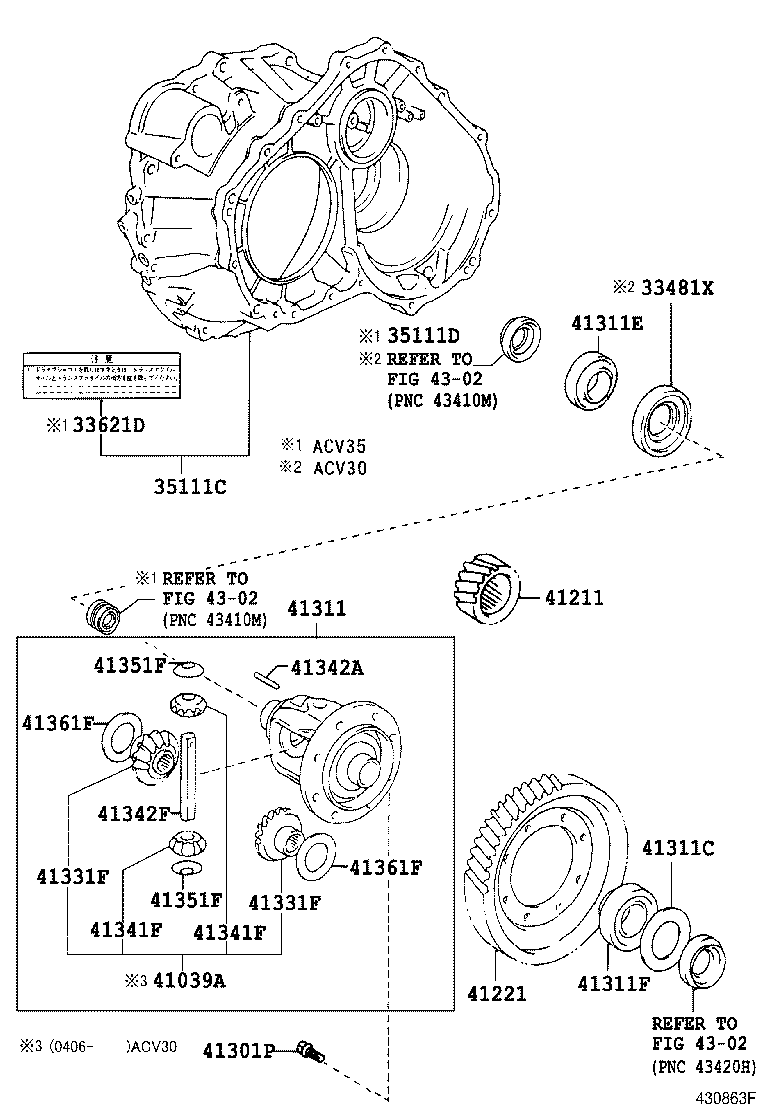

| Linked diagrams | ||||
| 4302 | ||||
