Toyota Camry ACV35 DISC WHEEL & WHEEL CAP

ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

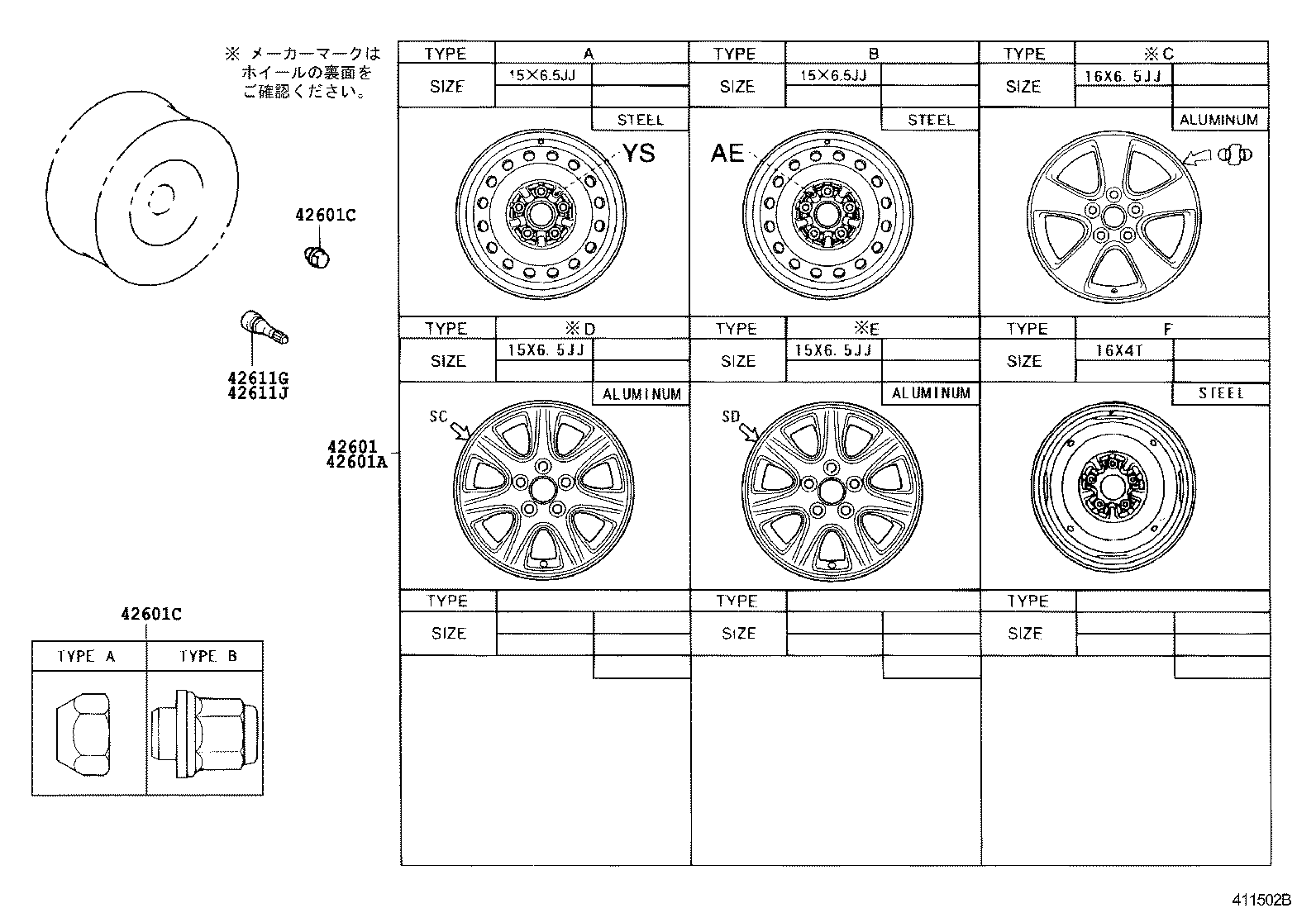

ILLUST NO. 1 OF 4(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-28420	ACV3#..24G 15X6.5JJ,#,TYPE A:ｲﾗｽﾄ参照	06/2004 - 12/2999	4
42611-33350	ACV3#..24G 15X6.5JJ,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	4
42611-33360	ACV3#..24G 15X6.5JJ,#,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	4
42611-28430	ACV3#..24G 15X6.5JJ,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	4
42611-33360	ACV3#..24G 15X6.5JJ,#,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	4
42611-28420	ACV3#..24G 15X6.5JJ,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	4
42611-33350	ACV3#..24G 15X6.5JJ,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-33360	ACV3#..24G 15X6.5JJ,#,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
42611-28210	ACV3# 16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	1
42611-28430	ACV3#..24G 15X6.5JJ,#,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
42611-28420	ACV3#..24G 15X6.5JJ,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
42611-33350	ACV3#..24G 15X6.5JJ,#,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
42611-28210	ACV3# 16X4T,TYPE F:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	ACV3#..24G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	20
90942-01033	ACV3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	20
90942-01007	ACV3#..24G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	20
90942-01033	ACV3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	20
42601C - NUT, HUB (FOR AXLE)
90942-01007	ACV3#..24G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	20
90942-01033	ACV3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	20
90942-01007	ACV3#..24G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	20
90942-01033	ACV3# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	ACV3#	09/2001 - 06/2004	4
90942-05009	ACV3#	06/2004 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	ACV3#	09/2001 - 06/2004	1
90942-05009	ACV3#	06/2004 - 12/2999	1

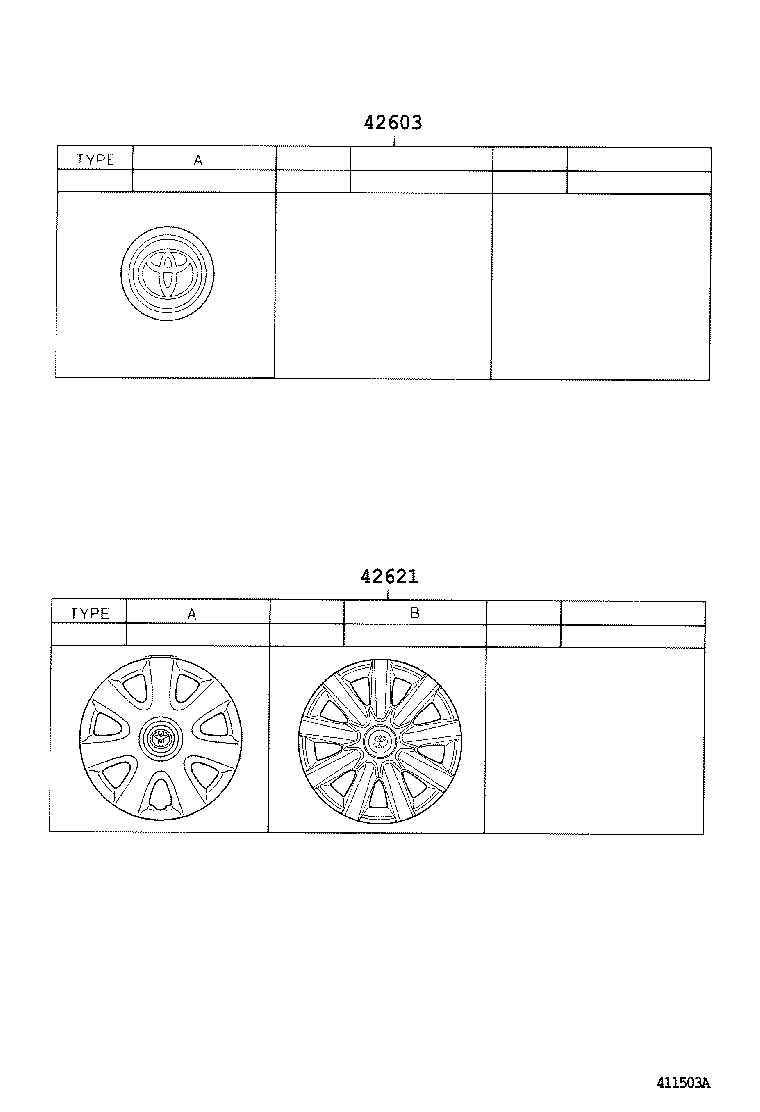

ILLUST NO. 2 OF 4(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-33090	ACV3# *ALU	09/2001 - 06/2004	4
42603-33090	ACV3# *ALU	06/2004 - 12/2999	4
42621 - CAP, WHEEL
42602-33090	ACV3#..24G TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	06/2004 - 12/2999	4
42602-33050	ACV3#..24G TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/2001 - 06/2004	4

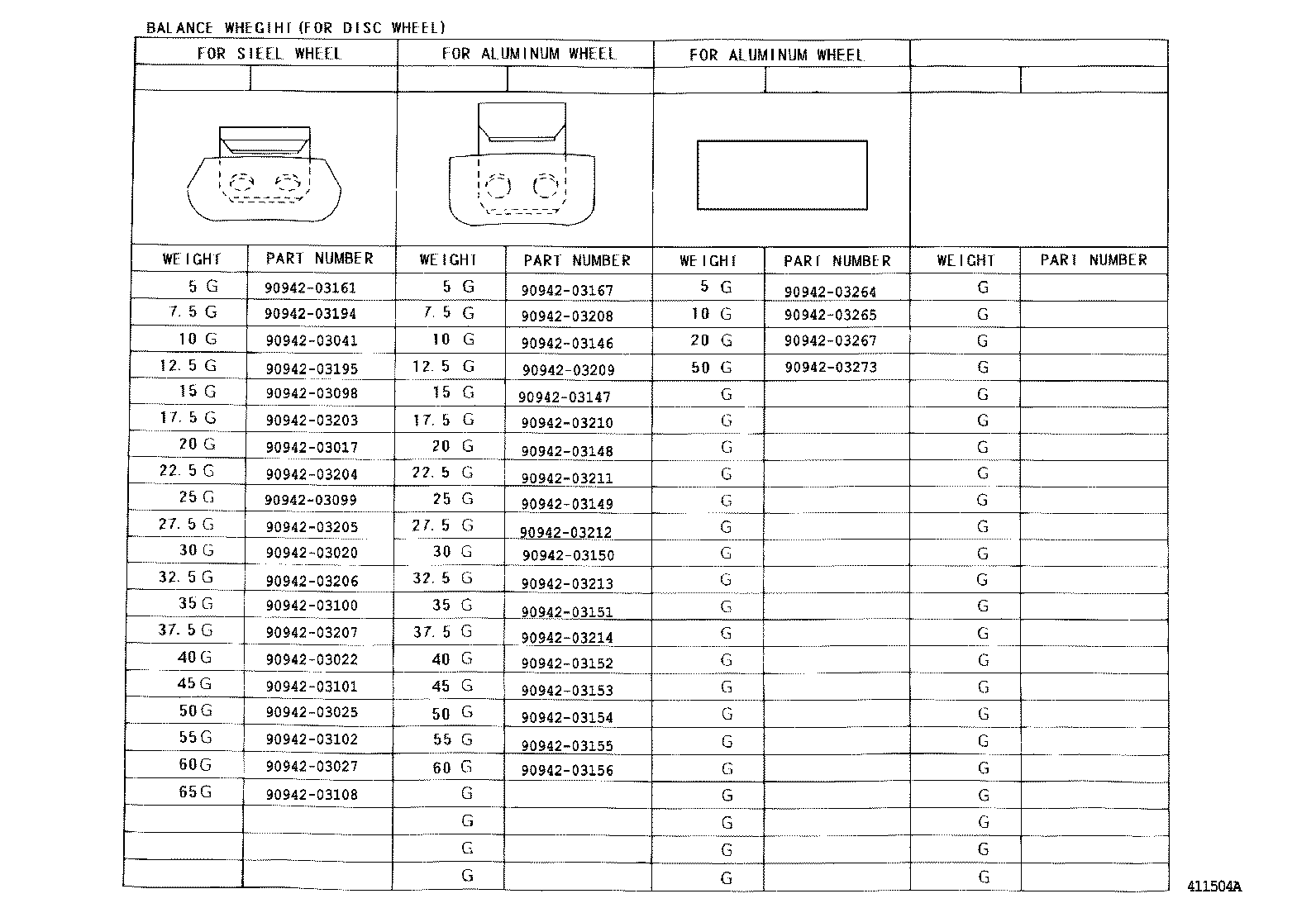

ILLUST NO. 3 OF 4(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273

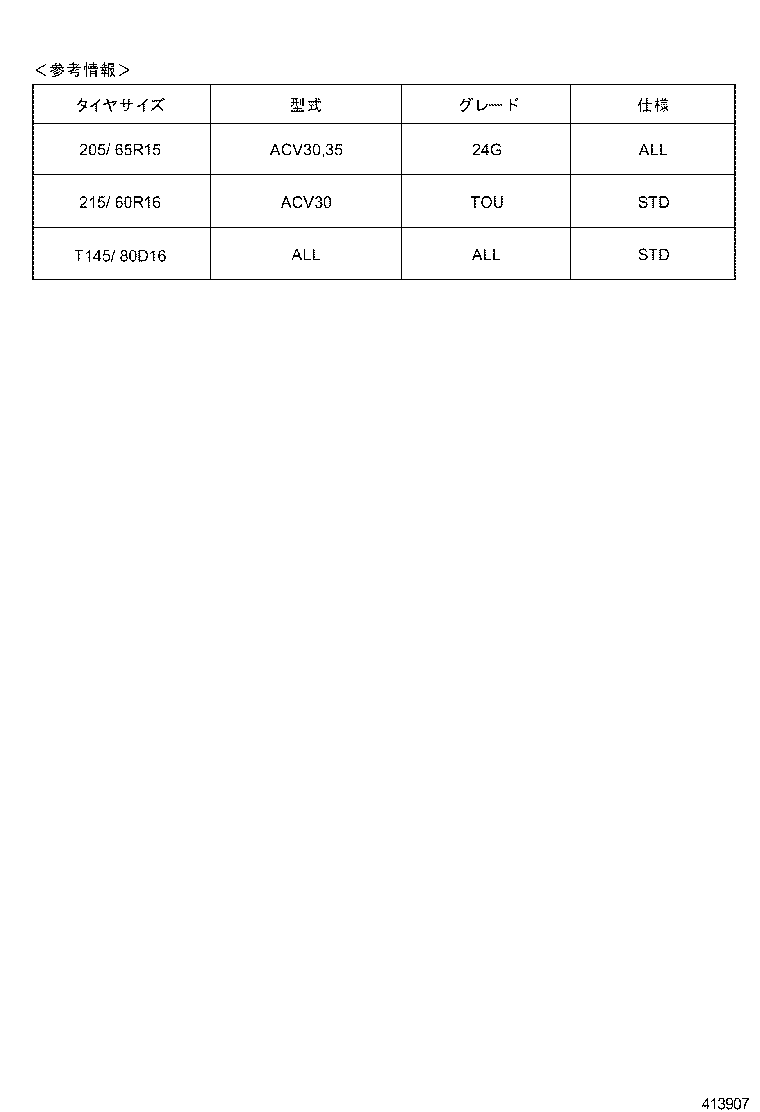

ILLUST NO. 4 OF 4(0109- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
