ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

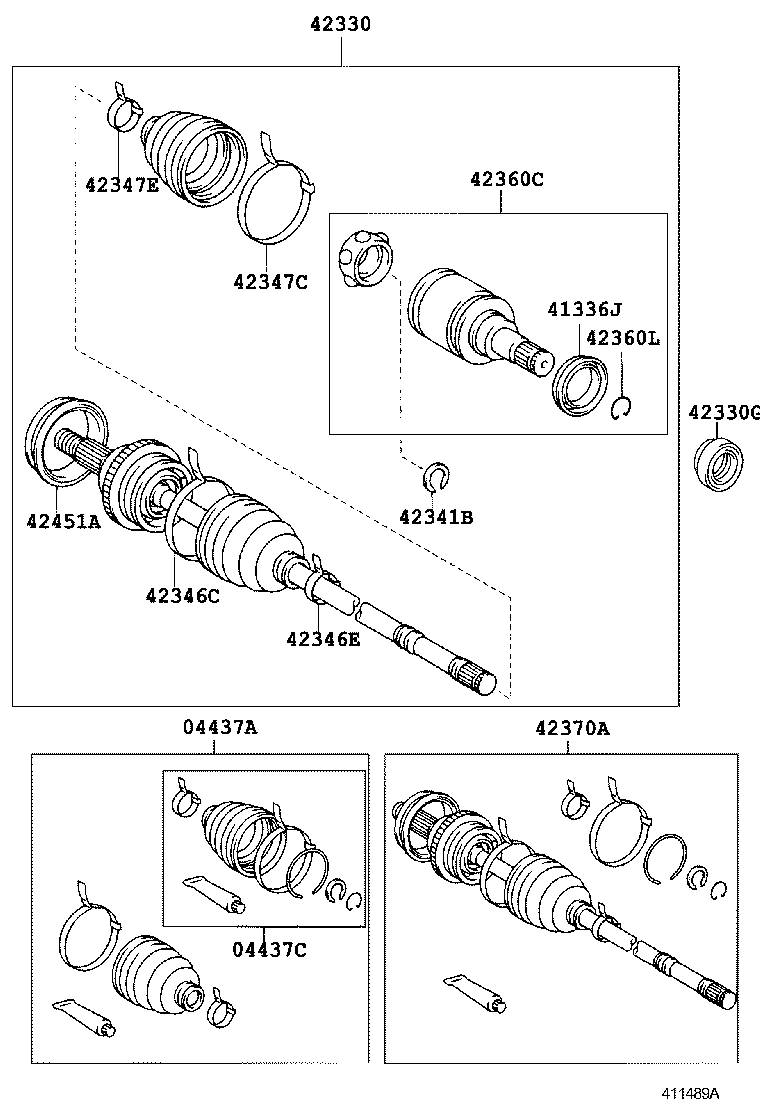

ILLUST NO. 1 OF 2(0109- )ACV35
Click highlighted areas on diagram
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437A - BOOT KIT, REAR DRIVE SHAFT, RH | ||||
| 04429-12020 |
ACV35 |
1 | ||
| 04437-21022 |
ACV35 |
1 | ||
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-21012 |
ACV35 |
1 | ||
| 04437-21012 |
ACV35 |
1 | ||
| 41336J - COVER, REAR DRIVE SHAFT DUST, RH | ||||
| 41336-33010 |
ACV35 |
1 | ||
| 41336-33010 |
ACV35 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-33020 |
ACV35 |
1 | ||
| 42330-33020 |
ACV35 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-42033 |
ACV35 |
1 | ||
| 90311-42033 |
ACV35 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-21020 |
ACV35 |
1 | ||
| 90520-21020 |
ACV35 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-12130 |
ACV35 |
1 | ||
| 42345-12130 |
ACV35 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-12130 |
ACV35 |
1 | ||
| 42345-12130 |
ACV35 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-33010 |
ACV35 |
1 | ||
| 42360-33010 |
ACV35 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90521-26004 |
ACV35 |
1 | ||
| 90521-26004 |
ACV35 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-39165 |
ACV35 |
1 | ||
| 42370-39165 |
ACV35 |
1 | ||
| 42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH | ||||
| 43247-12010 |
ACV35 |
1 | ||
| 43247-12010 |
ACV35 |
1 | ||

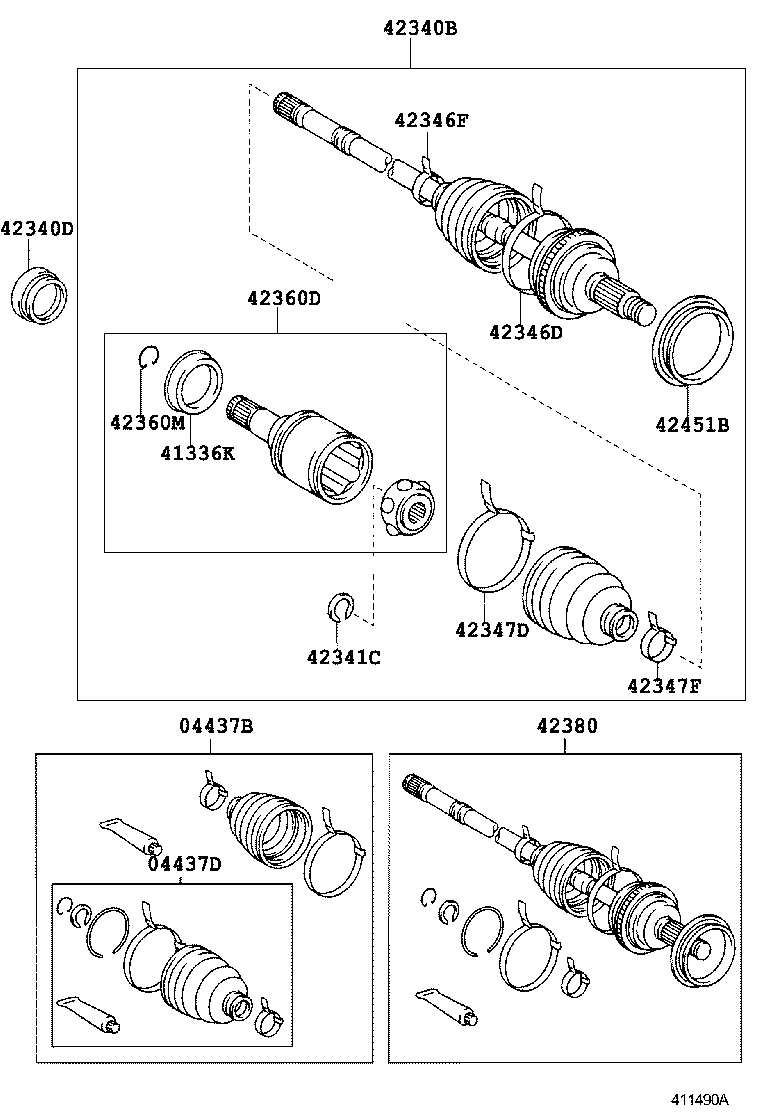

ILLUST NO. 1 OF 2(0109- )ACV35
Click highlighted areas on diagram
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437B - BOOT KIT, REAR DRIVE SHAFT, LH | ||||
| 04429-12020 |
ACV35 |
1 | ||
| 04437-21022 |
ACV35 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-21012 |
ACV35 |
1 | ||
| 04437-21012 |
ACV35 |
1 | ||
| 41336K - COVER, REAR DRIVE SHAFT DUST, LH | ||||
| 41336-33010 |
ACV35 |
1 | ||
| 41336-33010 |
ACV35 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-33020 |
ACV35 |
1 | ||
| 42340-33020 |
ACV35 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-42033 |
ACV35 |
1 | ||
| 90311-42033 |
ACV35 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-21020 |
ACV35 |
1 | ||
| 90520-21020 |
ACV35 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-12130 |
ACV35 |
1 | ||
| 42345-12130 |
ACV35 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42345-12120 |
ACV35 内径=74.3 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-12130 |
ACV35 |
1 | ||
| 42345-12130 |
ACV35 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-33010 |
ACV35 |
1 | ||
| 42360-33010 |
ACV35 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-26004 |
ACV35 |
1 | ||
| 90521-26004 |
ACV35 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42380-39075 |
ACV35 |
1 | ||
| 42380-39075 |
ACV35 |
1 | ||
| 42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH | ||||
| 43247-12010 |
ACV35 |
1 | ||
| 43247-12010 |
ACV35 |
1 | ||

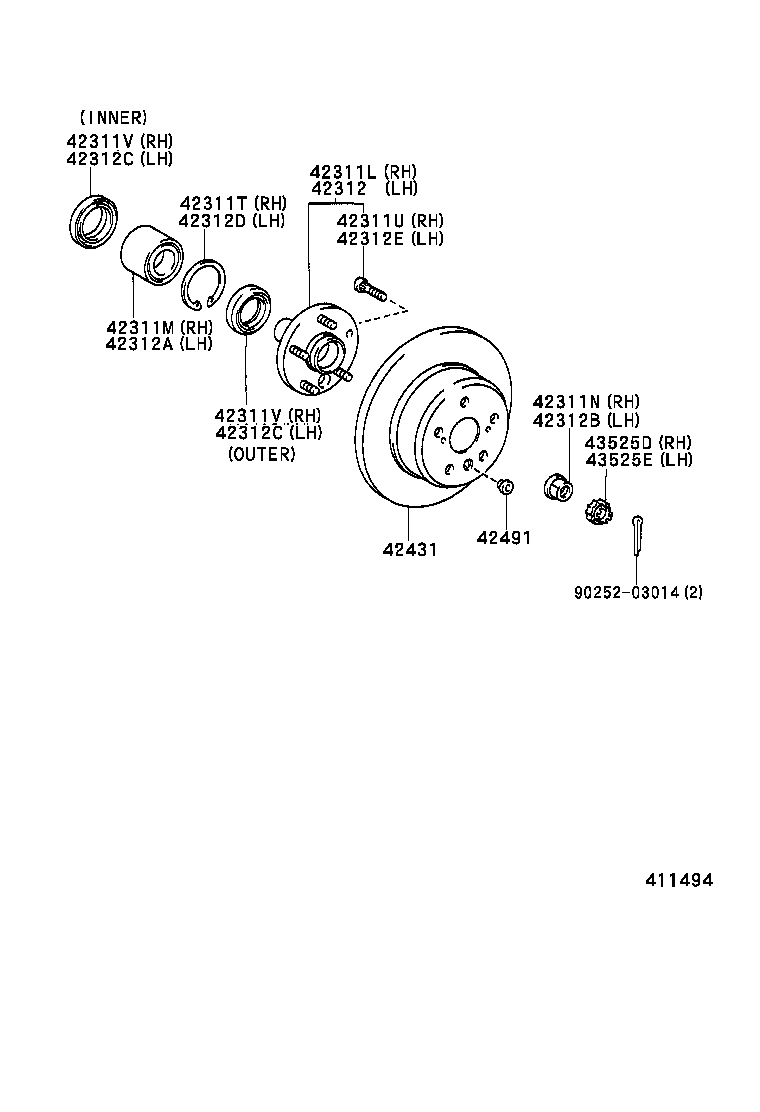

ILLUST NO. 2 OF 2(0109- )ACV35
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42301-32060 |
ACV35 |
1 | ||
| 42301-32060 |
ACV35 |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90369-38019 |
ACV35 |
1 | ||
| 90369-38003 |
ACV35 |
1 | ||
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90178-22001 |
ACV35 |
1 | ||
| 90178-22001 |
ACV35 |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90521-79002 |
ACV35 |
1 | ||
| 90521-79002 |
ACV35 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02070 |
ACV35 |
5 | ||
| 90942-02070 |
ACV35 |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42301-32060 |
ACV35 |
1 | ||
| 42301-32060 |
ACV35 |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90369-38019 |
ACV35 |
1 | ||
| 90369-38003 |
ACV35 |
1 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90178-22001 |
ACV35 |
1 | ||
| 90178-22001 |
ACV35 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 90311-52005 |
ACV35 外側 |
1 | ||
| 90311-56031 |
ACV35 内側 |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90521-79002 |
ACV35 |
1 | ||
| 90521-79002 |
ACV35 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02070 |
ACV35 |
5 | ||
| 90942-02070 |
ACV35 |
5 | ||
| 42431 - DISC, REAR | ||||
| 42431-33080 |
ACV35 |
2 | ||
| 42431-33080 |
ACV35 |
2 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
ACV3# |
2 | ||
| 47491-22020 |
ACV3# |
2 | ||
| 43525D - CAP, REAR WHEEL ADJUSTING LOCK, RH | ||||
| 43525-20040 |
ACV35 |
1 | ||
| 43525-20040 |
ACV35 |
1 | ||
| 43525E - CAP, REAR WHEEL ADJUSTING LOCK, LH | ||||
| 43525-20040 |
ACV35 |
1 | ||
| 43525-20040 |
ACV35 |
1 | ||
| Common parts | ||||
| 90252-03014 | ||||
