ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )

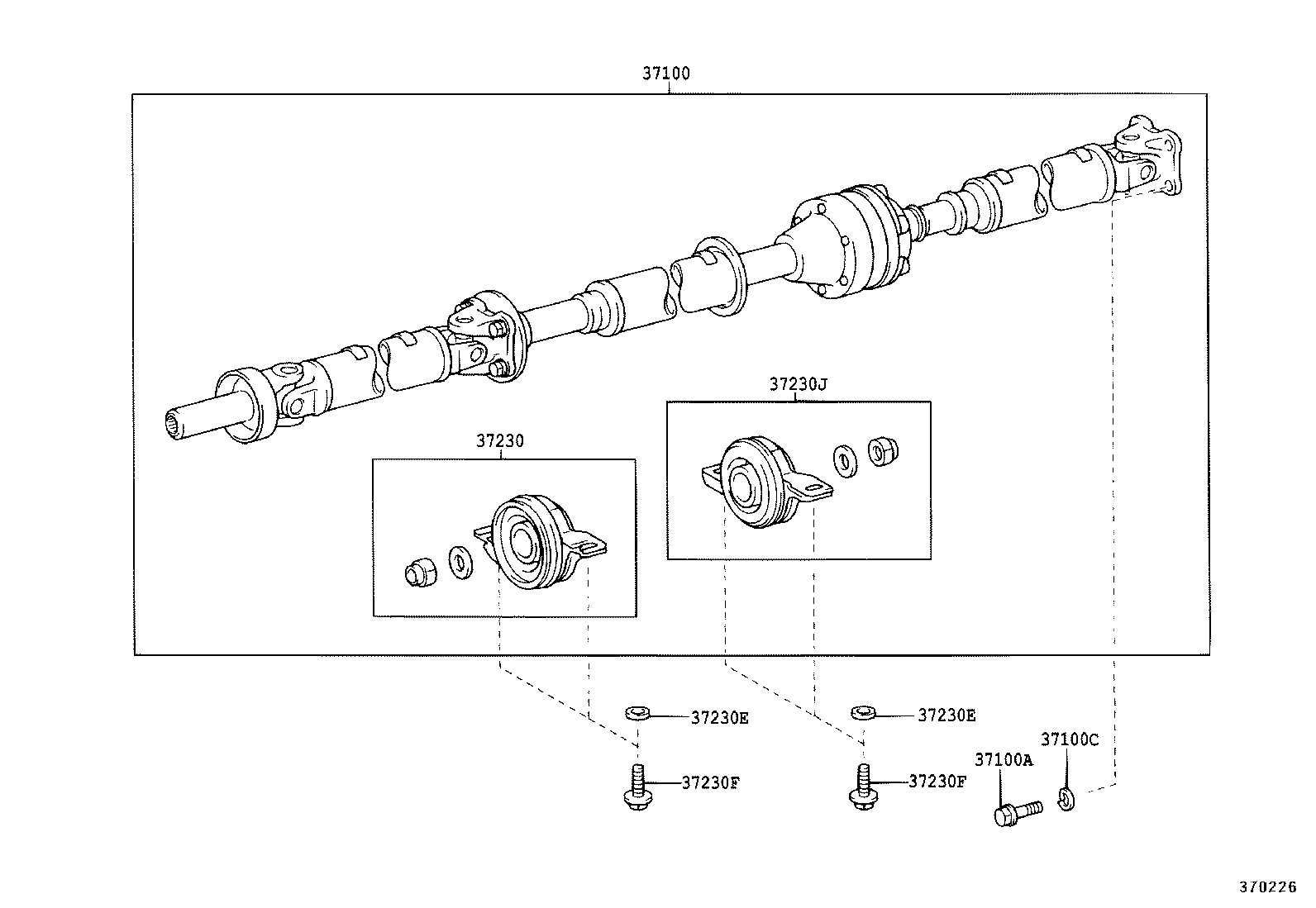

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-33020 |
ACV35 |
1 | ||
| 37100-33020 |
ACV35 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10423 |
ACV35 |
4 | ||
| 90105-10423 |
ACV35 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
ACV35 |
4 | ||
| 90204-10002 |
ACV35 |
4 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-39015 |
ACV35 |
1 | ||
| 37230-39015 |
ACV35 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10081 |
ACV35 厚さ=4.5 |
1 | ||
| 90201-10081 |
ACV35 厚さ=4.5 |
1 | ||
| 90201-10084 |
ACV35 厚さ=9.0 |
1 | ||
| 90201-10083 |
ACV35 厚さ=6.5 |
1 | ||
| 90201-10095 |
ACV35 厚さ=3.2 |
1 | ||
| 90201-10095 |
ACV35 厚さ=3.2 |
1 | ||
| 90201-10083 |
ACV35 厚さ=6.5 |
1 | ||
| 90201-10084 |
ACV35 厚さ=9.0 |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10081 |
ACV35 厚さ=4.5 |
1 | ||
| 90201-10081 |
ACV35 厚さ=4.5 |
1 | ||
| 90201-10084 |
ACV35 厚さ=9.0 |
1 | ||
| 90201-10083 |
ACV35 厚さ=6.5 |
1 | ||
| 90201-10095 |
ACV35 厚さ=3.2 |
1 | ||
| 90201-10095 |
ACV35 厚さ=3.2 |
1 | ||
| 90201-10083 |
ACV35 厚さ=6.5 |
1 | ||
| 90201-10084 |
ACV35 厚さ=9.0 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10444 |
ACV35 |
4 | ||
| 90119-10444 |
ACV35 |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10444 |
ACV35 |
4 | ||
| 90119-10444 |
ACV35 |
4 | ||
| 37230J - BEARING ASSY, CENTER SUPPORT, NO.2 | ||||
| 37230-39025 |
ACV35 |
1 | ||
| 37230-39025 |
ACV35 |
1 | ||
