ACV35-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )ACV35

Click highlighted areas on diagram

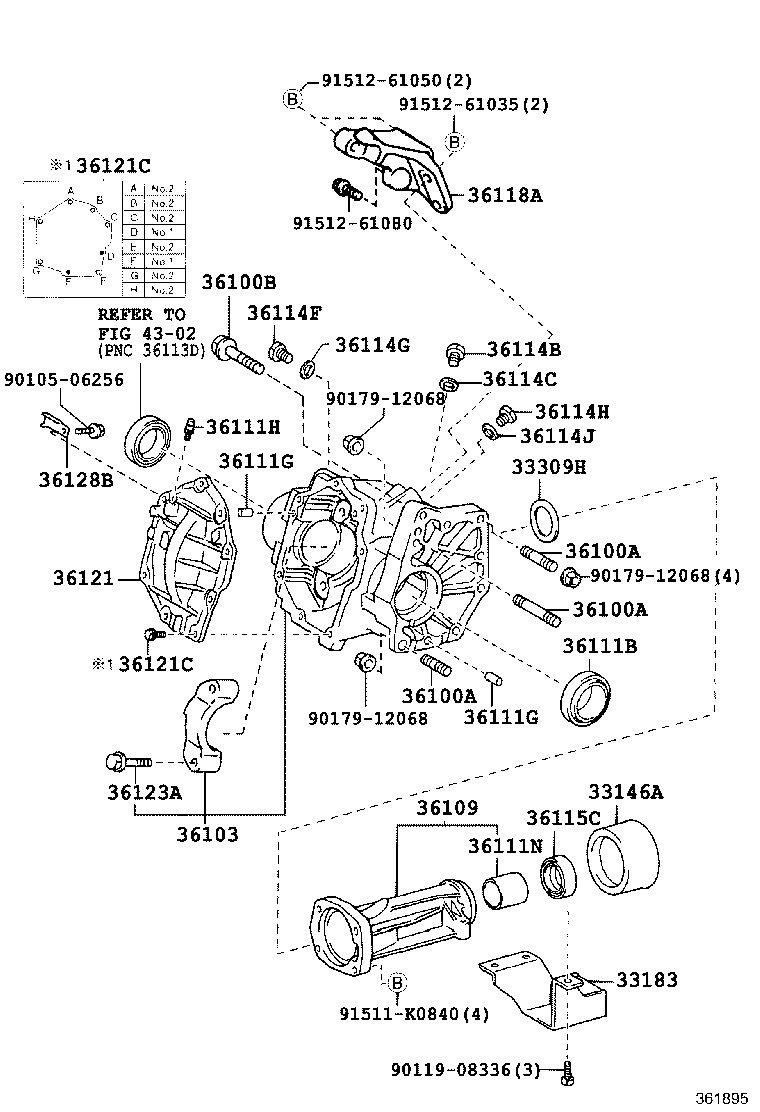

diagram 33146A 33183 33309H 36100A 36100A 36100A 36100B 36103 36109 36111B 36111G 36111G 36111H 36111N 36114B 36114C 36114F 36114G 36114H 36114J 36115C 36118A 36121 36121C 36121C 36123A 36128B 4302 9010506256 9011908336 9017912068 9017912068 9017912068 91511K0840 9151261035 9151261050 9151261080
Part # Description Qty Price
33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33146-30020

ACV35

 1
33146-30020

ACV35

 1
33183 - DAMPER, TRANSFER DYNAMIC
33183-21040

ACV35

 1
33183-21040

ACV35

 1
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-33110

ACV35

厚さ=2.20,ﾏｰｸ DB

 1
36275-33050

ACV35

厚さ=2.14,ﾏｰｸ BB

 1
36275-33030

ACV35

厚さ=2.12,ﾏｰｸ AC

 1
36275-33070

ACV35

厚さ=2.16,ﾏｰｸ CA

 1
36275-33010

ACV35

厚さ=2.10,ﾏｰｸ AA

 1
36275-33130

ACV35

厚さ=2.22,ﾏｰｸ EA

 1
36275-33190

ACV35

厚さ=2.28,ﾏｰｸ GA

 1
36275-33090

ACV35

厚さ=2.18,ﾏｰｸ CC

 1
36275-33210

ACV35

厚さ=2.30,ﾏｰｸ GC

 1
36275-33230

ACV35

厚さ=2.32,ﾏｰｸ HB

 1
36275-33150

ACV35

厚さ=2.24,ﾏｰｸ EC

 1
36275-33410

ACV35

厚さ=2.50,ﾏｰｸ PB

 1
36275-33290

ACV35

厚さ=2.38,ﾏｰｸ KB

 1
36275-33390

ACV35

厚さ=2.48,ﾏｰｸ NC

 1
36275-33170

ACV35

厚さ=2.26,ﾏｰｸ FB

 1
36275-33370

ACV35

厚さ=2.46,ﾏｰｸ NA

 1
36275-33250

ACV35

厚さ=2.34,ﾏｰｸ JA

 1
36275-33350

ACV35

厚さ=2.44,ﾏｰｸ MB

 1
36275-33330

ACV35

厚さ=2.42,ﾏｰｸ LC

 1
36275-33030

ACV35

厚さ=2.12,ﾏｰｸ AC

 1
36275-33310

ACV35

厚さ=2.40,ﾏｰｸ LA

 1
36275-33050

ACV35

厚さ=2.14,ﾏｰｸ BB

 1
36275-33070

ACV35

厚さ=2.16,ﾏｰｸ CA

 1
36275-33150

ACV35

厚さ=2.24,ﾏｰｸ EC

 1
36275-33430

ACV35

厚さ=2.52,ﾏｰｸ QA

 1
36275-33170

ACV35

厚さ=2.26,ﾏｰｸ FB

 1
36275-33010

ACV35

厚さ=2.10,ﾏｰｸ AA

 1
36275-33230

ACV35

厚さ=2.32,ﾏｰｸ HB

 1
36275-33270

ACV35

厚さ=2.36,ﾏｰｸ JC

 1
36275-33090

ACV35

厚さ=2.18,ﾏｰｸ CC

 1
36275-33210

ACV35

厚さ=2.30,ﾏｰｸ GC

 1
36275-33450

ACV35

厚さ=2.54,ﾏｰｸ QC

 1
36275-33350

ACV35

厚さ=2.44,ﾏｰｸ MB

 1
36275-33290

ACV35

厚さ=2.38,ﾏｰｸ KB

 1
36275-33130

ACV35

厚さ=2.22,ﾏｰｸ EA

 1
36275-33110

ACV35

厚さ=2.20,ﾏｰｸ DB

 1
36275-33310

ACV35

厚さ=2.40,ﾏｰｸ LA

 1
36275-33270

ACV35

厚さ=2.36,ﾏｰｸ JC

 1
36275-33250

ACV35

厚さ=2.34,ﾏｰｸ JA

 1
36275-33450

ACV35

厚さ=2.54,ﾏｰｸ QC

 1
36275-33390

ACV35

厚さ=2.48,ﾏｰｸ NC

 1
36275-33410

ACV35

厚さ=2.50,ﾏｰｸ PB

 1
36275-33330

ACV35

厚さ=2.42,ﾏｰｸ LC

 1
36275-33190

ACV35

厚さ=2.28,ﾏｰｸ GA

 1
36275-33370

ACV35

厚さ=2.46,ﾏｰｸ NA

 1
36275-33430

ACV35

厚さ=2.52,ﾏｰｸ QA

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACV35

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACV35

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACV35

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

ACV35

*12−1.25PX53−35

 2
90105-12298

ACV35

*12−1.25PX53−35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-28060

ACV35

 1
36103-28060

ACV35

 1
36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION
36109-33010

ACV35

 1
36109-33010

ACV35

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

ACV35

 1
90311-55002

ACV35

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ACV35

長さ=20,外径=10

 2
90250-08030

ACV35

長さ=16,外径=8

 2
90250-08046

ACV35

長さ=16,外径=8

 2
90250-10017

ACV35

長さ=20,外径=10

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ACV35

長さ=20,外径=10

 2
90250-08030

ACV35

長さ=16,外径=8

 2
90250-08046

ACV35

長さ=16,外径=8

 2
90250-10017

ACV35

長さ=20,外径=10

 2
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

ACV35

 1
90930-03133

ACV35

 1
36111N - BUSH (FOR TRANSFER CASE)
90999-73105

ACV35

 1
90999-73105

ACV35

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18055

ACV35

 1
90341-18055

ACV35

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

ACV35

 1
12157-10010

ACV35

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18057

ACV35

 1
90341-18057

ACV35

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

ACV35

 1
12157-10010

ACV35

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18006

ACV35

 1
90341-18006

ACV35

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

ACV35

 1
12157-10010

ACV35

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-38062

ACV35

 1
90311-38090

ACV35

 1
90311-38062

ACV35

 1
36118A - PLATE, TRANSFER STIFFENER, RH
36118-33020

ACV35

 1
36118-33020

ACV35

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-28010

ACV35

 1
36121-28010

ACV35

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
90105-08351

ACV35

NO.1

 2
91511-J0820

ACV35

NO.2

 6
91511-J0820

ACV35

NO.2

 6
90105-08351

ACV35

NO.1

 2
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
90105-08351

ACV35

NO.1

 2
91511-J0820

ACV35

NO.2

 6
91511-J0820

ACV35

NO.2

 6
90105-08351

ACV35

NO.1

 2
36123A - BOLT, DIFFERENTIAL BEARING CAP
41114-16010

ACV35

 2
41114-16010

ACV35

 2
36128B - DEFLECTOR, BREATHER OIL
36128-28010

ACV35

 1
36128-28010

ACV35

 1
Common parts
90105-06256
90119-08336
90179-12068
91511-K0840
91512-61035
91512-61050
91512-61080
Linked diagrams
4302
