Toyota Camry ACV35 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33502 - PLATE SUB-ASSY, SHIFT LEVER
33521-33050	ACV3#	06/2004 - 12/2999	1
33521-33050	ACV3#	09/2001 - 06/2004	1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40238	ACV3#	06/2004 - 12/2999	2
90159-40238	ACV3#	09/2001 - 06/2004	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-33190E0	ACV3#..24G ﾘﾐﾃﾂﾄﾞｴﾃﾞｲｼﾖﾝ,SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
33542-33180E0	ACV3#..24G SANDAL WOOD,TRIM4#	09/2001 - 06/2004	1
33542-33180E0	ACV3#..24G SANDAL WOOD,TRIM4#	06/2004 - 12/2999	1
33542-33190E0	ACV3#..24G ﾘﾐﾃﾂﾄﾞｴﾃﾞｲｼﾖﾝ,SANDAL WOOD,TRIM4#	09/2001 - 06/2004	1
33544 - INSERT, SHIFT LEVER, NO.1
33544-33010	ACV3#	06/2004 - 12/2999	4
33544-33010	ACV3#	09/2001 - 06/2004	4
33550D - BULB, POSITION INDICATOR LAMP
90981-11014	ACV3# 14V 1.4W	09/2001 - 06/2004	1
90981-11014	ACV3# 14V 1.4W	06/2004 - 12/2999	1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049	ACV3#	09/2001 - 06/2004	1
90339-04049	ACV3#	06/2004 - 12/2999	1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-33041	ACV3#	09/2001 - 06/2004	1
33560-33041	ACV3#	06/2004 - 12/2999	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-33150	ACV3#	09/2001 - 06/2004	1
33563-33150	ACV3#	06/2004 - 12/2999	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-33120	ACV3#	06/2004 - 12/2999	1
33623-33120	ACV3#	09/2001 - 06/2004	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07116	ACV3#	09/2001 - 06/2004	1
90501-07116	ACV3#	06/2004 - 12/2999	1
33866 - SPRING, SHIFT LOCK RELEASE
33866-33010	ACV3#	06/2004 - 12/2999	1
33866-33010	ACV3#	09/2001 - 06/2004	1
35586C - PIN, TOGGLE LEVER SUPPORT
35586-33010	ACV3#	09/2001 - 06/2004	1
35586-33010	ACV3#	06/2004 - 12/2999	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-33070	ACV3#	06/2004 - 12/2999	1
35906-33070	ACV3#	09/2001 - 06/2004	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-33150	ACV3#	06/2004 - 12/2999	1
35971-33150	ACV3#	09/2001 - 06/2004	1
35972 - COVER, POSITION INDICATOR HOUSING
35972-33010	ACV3#	09/2001 - 06/2004	1
35972-33010	ACV3#	06/2004 - 12/2999	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-33110	ACV3#	06/2004 - 12/2999	1
35974-33110	ACV3#	09/2001 - 06/2004	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-33060	ACV3#	09/2001 - 06/2004	1
35975-33060	ACV3#	06/2004 - 12/2999	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-06030	ACV3#	06/2004 - 12/2999	1
35976-06030	ACV3#	09/2001 - 06/2004	1
Common parts
91631-60825

Part #	Description	Period	Qty
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-33060	ACV3#	09/2001 - 06/2004	1
33574-33060	ACV3#	06/2004 - 12/2999	1
33723Q - NUT (FOR CONNECTING ROD SWIVEL)
90179-08054	ACV3#	06/2004 - 12/2999	1
90179-08054	ACV3#	09/2001 - 06/2004	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-33200	ACV3#	06/2004 - 12/2999	1
33820-33200	ACV3#	09/2001 - 06/2004	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48040	ACV3#	09/2001 - 06/2004	1
33823-48040	ACV3#	06/2004 - 12/2999	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-33010	ACV3#	09/2001 - 06/2004	1
33826-33010	ACV3#	06/2004 - 12/2999	1
33880A - CABLE ASSY, PARKING LOCK (FOR FLOOR SHIFT)
33880-33021	ACV3#	09/2001 - 06/2004	1
33880-33021	ACV3#	06/2004 - 12/2999	1
Common parts
90468-14004
90468-14016
91611-B0816
91621-J0614
Linked diagrams
3513

ACV35-AEPNK (2001)

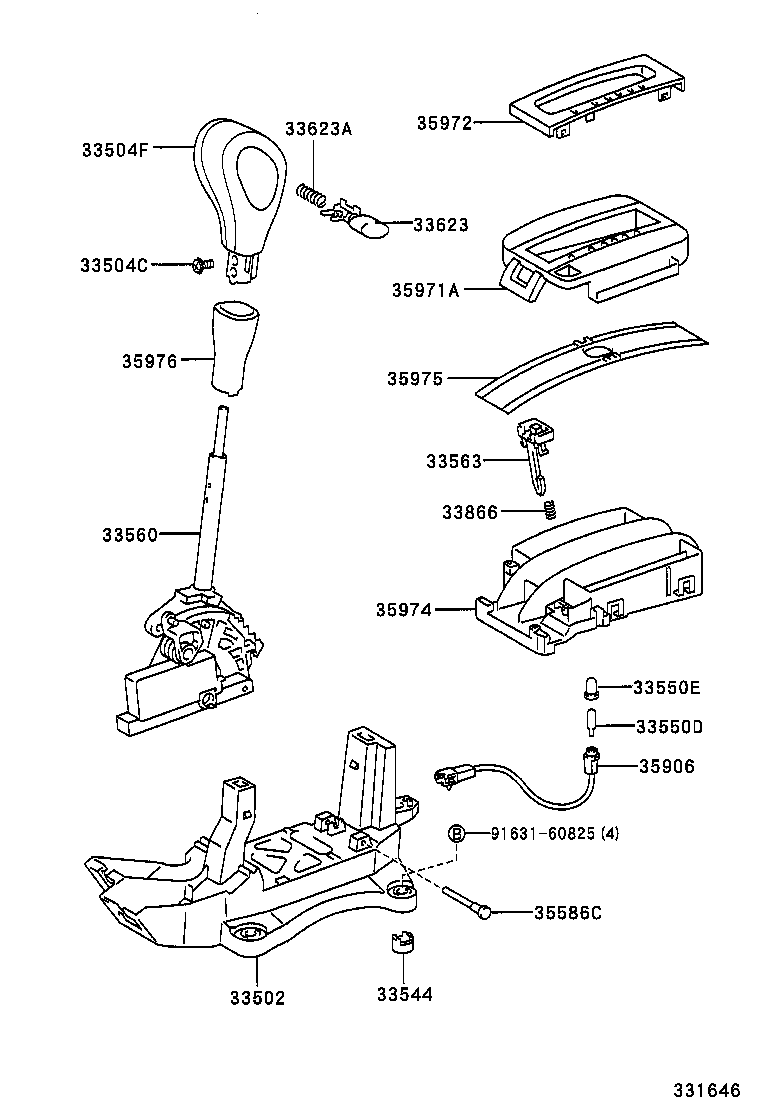

ILLUST NO. 1 OF 2(0109- )

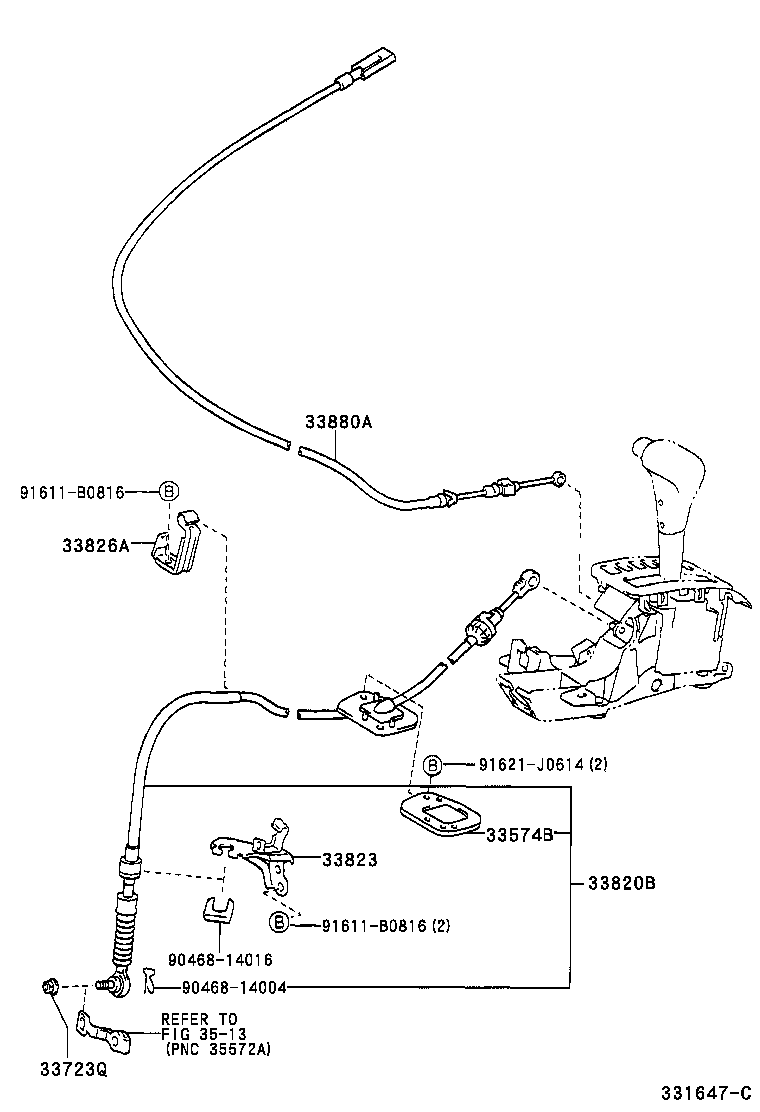

ILLUST NO. 2 OF 2(0109- )
