ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )2AZFE..ACV35

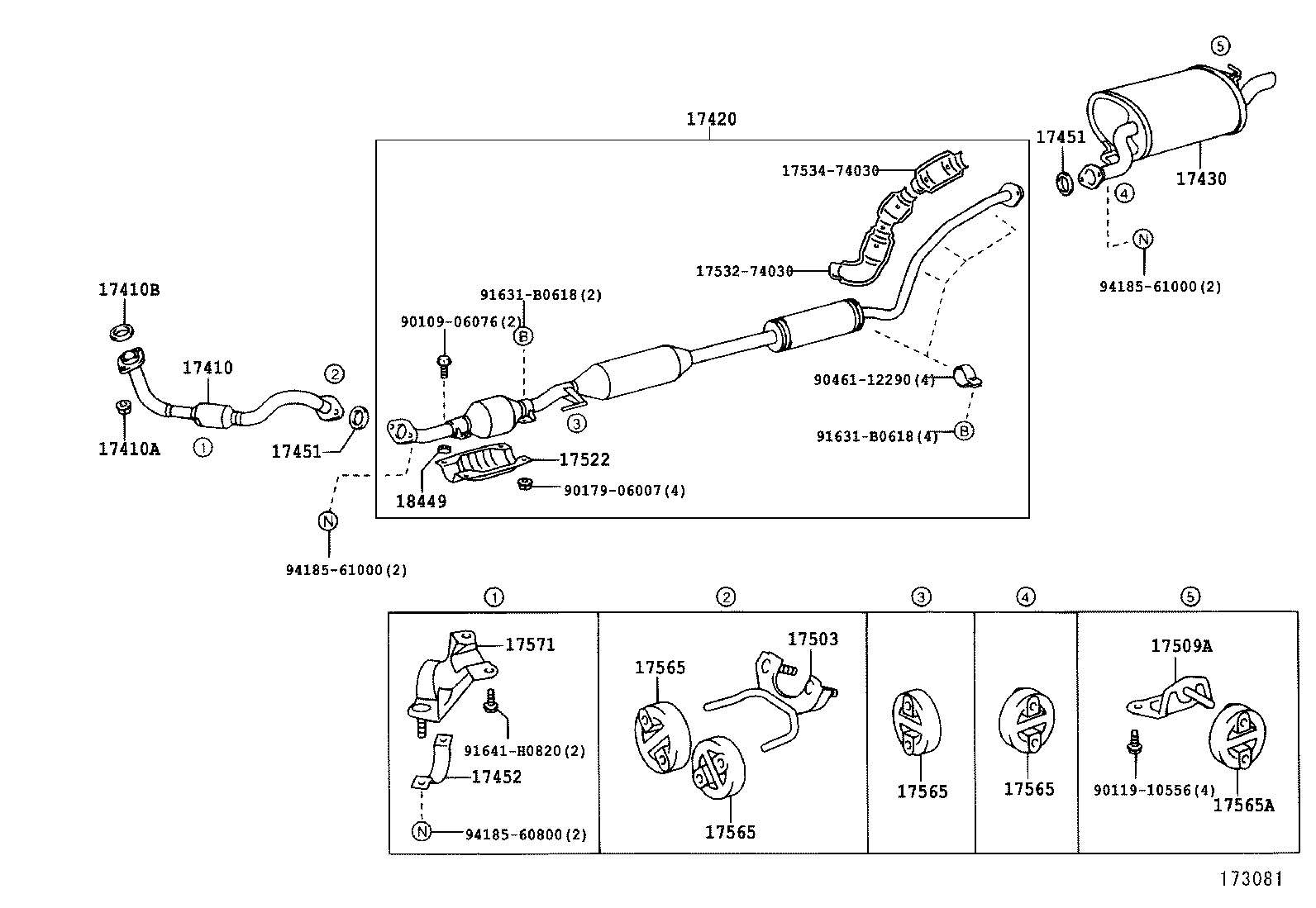

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-28360 |
2AZFE..ACV35 |
1 | ||
| 17410-28360 |
2AZFE..ACV35 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2AZFE..ACV3# |
2 | ||
| 90179-10070 |
2AZFE..ACV3# |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06090 |
2AZFE..ACV3# |
1 | ||
| 90917-06090 |
2AZFE..ACV3# |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-28160 |
2AZFE..ACV35 |
1 | ||
| 17420-28160 |
2AZFE..ACV35 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-28290 |
2AZFE..ACV35 |
1 | ||
| 17430-28290 |
2AZFE..ACV35 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
2AZFE..ACV35 |
2 | ||
| 90917-06078 |
2AZFE..ACV35 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06078 |
2AZFE..ACV35 |
2 | ||
| 90917-06078 |
2AZFE..ACV35 |
2 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 17452-74120 |
2AZFE..ACV35 |
1 | ||
| 17452-74120 |
2AZFE..ACV35 |
1 | ||
| 17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR | ||||
| 17503-28040 |
2AZFE..ACV35 |
1 | ||
| 17503-28040 |
2AZFE..ACV35 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-74201 |
2AZFE..ACV35 |
1 | ||
| 17509-74201 |
2AZFE..ACV35 |
1 | ||
| 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17522-21010 |
2AZFE..ACV35 |
1 | ||
| 17522-21010 |
2AZFE..ACV35 |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565-15140 |
2AZFE..ACV35 |
4 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-20060 |
2AZFE..ACV35 |
1 | ||
| 17565-20060 |
2AZFE..ACV35 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-28090 |
2AZFE..ACV35 |
1 | ||
| 17571-28090 |
2AZFE..ACV35 |
1 | ||
| 18449 - SPACER, CONVERTER PROTECTOR | ||||
| 18449-74010 |
2AZFE..ACV35 |
2 | ||
| 18449-74010 |
2AZFE..ACV35 |
2 | ||
| Common parts | ||||
| 17532-74030 | ||||
| 17534-74030 | ||||
| 90109-06076 | ||||
| 90119-10556 | ||||
| 90179-06007 | ||||
| 90461-12290 | ||||
| 91631-B0618 | ||||
| 91641-H0820 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
