ACV35-AEPNK (2001)
Toyota Camry
Production
Sep 2001
-
Jan 2006
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0109- )

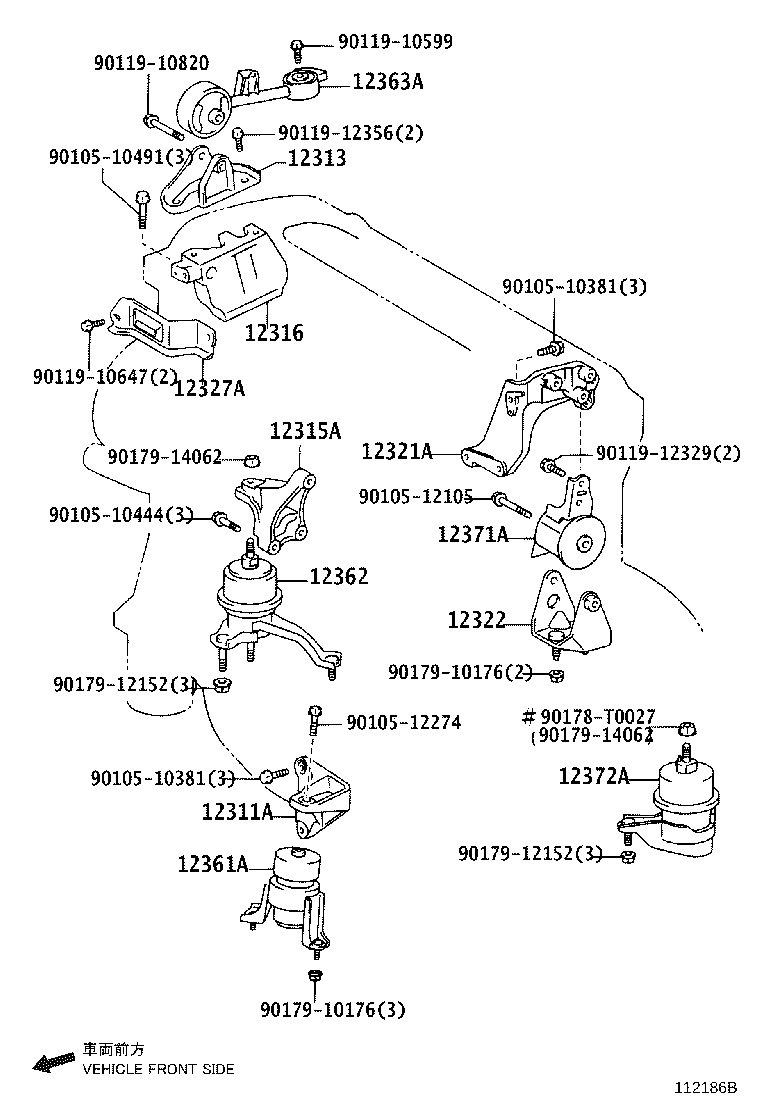

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-20060 |
2AZFE..ACV35 |
1 | ||
| 12311-20060 |
2AZFE..ACV35 |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-28020 |
2AZFE..ACV3# |
1 | ||
| 12313-28020 |
2AZFE..ACV3# |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-28020 |
2AZFE..ACV35 |
1 | ||
| 12315-28020 |
2AZFE..ACV35 |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-28061 |
2AZFE..ACV3# |
1 | ||
| 12316-28060 |
2AZFE..ACV3# |
1 | ||
| 12316-28060 |
2AZFE..ACV3# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-28031 |
2AZFE..ACV35 |
1 | ||
| 12321-28031 |
2AZFE..ACV35 |
1 | ||
| 12321-28030 |
2AZFE..ACV35 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-28020 |
2AZFE..ACV35 |
1 | ||
| 12322-28020 |
2AZFE..ACV35 |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-28030 |
2AZFE..ACV3# |
1 | ||
| 12327-28030 |
2AZFE..ACV3# |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-28110 |
2AZFE..ACV3# |
1 | ||
| 12361-28110 |
2AZFE..ACV3# |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-28100 |
2AZFE..ACV3# |
1 | ||
| 12362-28100 |
2AZFE..ACV3# |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-28070 |
2AZFE..ACV35 |
1 | ||
| 12363-28070 |
2AZFE..ACV35 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-28010 |
2AZFE..ACV35 |
1 | ||
| 12371-28010 |
2AZFE..ACV35 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-28020 |
2AZFE..ACV3# |
1 | ||
| 12372-28020 |
2AZFE..ACV3# |
1 | ||
| Common parts | ||||
| 90105-10381 | ||||
| 90105-10444 | ||||
| 90105-10491 | ||||
| 90105-12105 | ||||
| 90105-12274 | ||||
| 90119-10599 | ||||
| 90119-10647 | ||||
| 90119-10820 | ||||
| 90119-12329 | ||||
| 90119-12356 | ||||
| 90178-T0027 | ||||
| 90179-10176 | ||||
| 90179-12152 | ||||
| 90179-14062 | ||||
