ACV30-AEPNK (2001)

Toyota Camry

Production Sep 2001 - Jan 2006
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0109- )ACV30

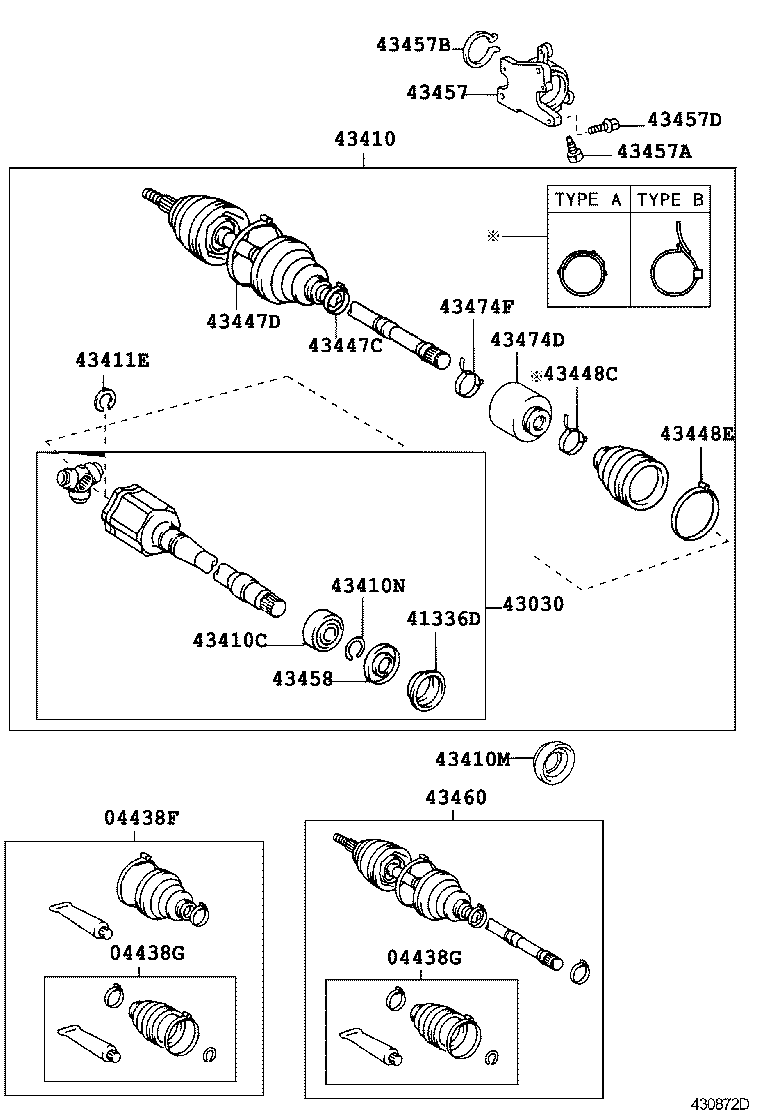

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 04438G 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457 43457A 43457B 43457D 43458 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-28052

ACV3#

 1
04438-28051

ACV3#

 1
04427-44020

ACV3#

 1
04438-28052

ACV3#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ACV3#

 1
04438-28040

ACV3#

 1
04438-42180

ACV3#

 1
04438-28041

ACV3#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ACV3#

 1
04438-28040

ACV3#

 1
04438-42180

ACV3#

 1
04438-28041

ACV3#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

ACV30

 1
41336-12020

ACV30

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-33051

ACV30

 1
43030-33051

ACV30

 1
43030-33050

ACV30

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-33240

ACV30

 1
43410-33240

ACV30

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-41002

ACV30

 1
90363-41002

ACV30

 1
90363-41003

ACV30

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-40031

ACV30

 1
90311-40026

ACV30

 1
90311-40026

ACV30

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

ACV30

 1
90520-38015

ACV30

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACV3#

 1
43425-28010

ACV3#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ACV3#

内径=33.9

 1
42345-20040

ACV3#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ACV3#

 1
42345-28020

ACV3#

内径=98.6

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01559

ACV3#

TYPE B:ｲﾗｽﾄ参照

 1
90949-01559

ACV3#

 1
42345-42010

ACV3#

TYPE A:ｲﾗｽﾄ参照

 1
42345-42010

ACV3#

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ACV3#

TYPE B:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACV3#

 1
90949-01076

ACV3#

 1
42345-12160

ACV3#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-33020

ACV30

 1
43457-33020

ACV30

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

ACV30

*10−1.25PX19.8−8.3

 1
90119-10461

ACV30

*10−1.25PX19.8−8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

ACV30

 1
90521-78002

ACV30

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

ACV30

 3
90105-10381

ACV30

 3
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

ACV30

 1
43458-12010

ACV30

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-29625

ACV30

 1
43470-29626

ACV30

 1
43470-29885

ACV30

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-48011

ACV3#

 1
43474-48020

ACV3#

 1
43474-48020

ACV3#

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ACV3#

 1
42345-14010

ACV3#

 1

(0109- )

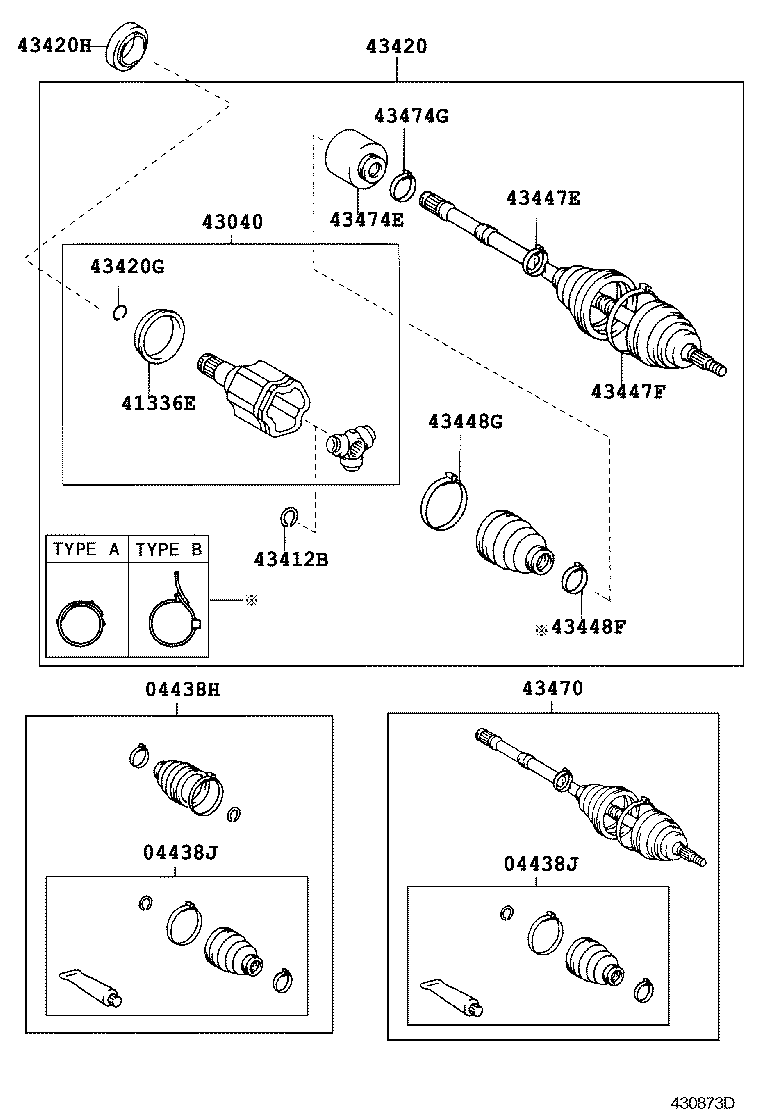

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-28052

ACV3#

 1
04428-42070

ACV3#

 1
04438-28052

ACV3#

 1
04438-28051

ACV3#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ACV3#

 1
04438-28040

ACV3#

 1
04438-28041

ACV3#

 1
04438-28041

ACV3#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ACV3#

 1
04438-28040

ACV3#

 1
04438-28041

ACV3#

 1
04438-28041

ACV3#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ACV30

 1
41336-28020

ACV30

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28010

ACV30

 1
43040-28011

ACV30

 1
43040-28011

ACV30

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACV3#

 1
43425-28010

ACV3#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-28030

ACV30

 1
43420-48090

ACV30

 1
43420-28030

ACV30

 1
43420-48091

ACV30

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACV3#

 1
90521-33002

ACV3#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50028

ACV30

 1
90311-50033

ACV30

 1
90311-50028

ACV30

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ACV3#

 1
42345-20040

ACV3#

内径=33.9

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ACV3#

 1
42345-28020

ACV3#

内径=98.6

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACV3#

TYPE B:ｲﾗｽﾄ参照

 1
90949-01559

ACV3#

 1
90949-01559

ACV3#

TYPE B:ｲﾗｽﾄ参照

 1
42345-42010

ACV3#

TYPE A:ｲﾗｽﾄ参照

 1
42345-42010

ACV3#

TYPE A:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

ACV3#

 1
42345-12160

ACV3#

 1
42345-12160

ACV3#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29625

ACV30

 1
43470-29626

ACV30

 1
43470-29885

ACV30

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-48020

ACV30

 1
43474-28010

ACV3#

 1
43474-48011

ACV30

 1
43474-28010

ACV3#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ACV3#

 1
42345-14010

ACV3#

 1
