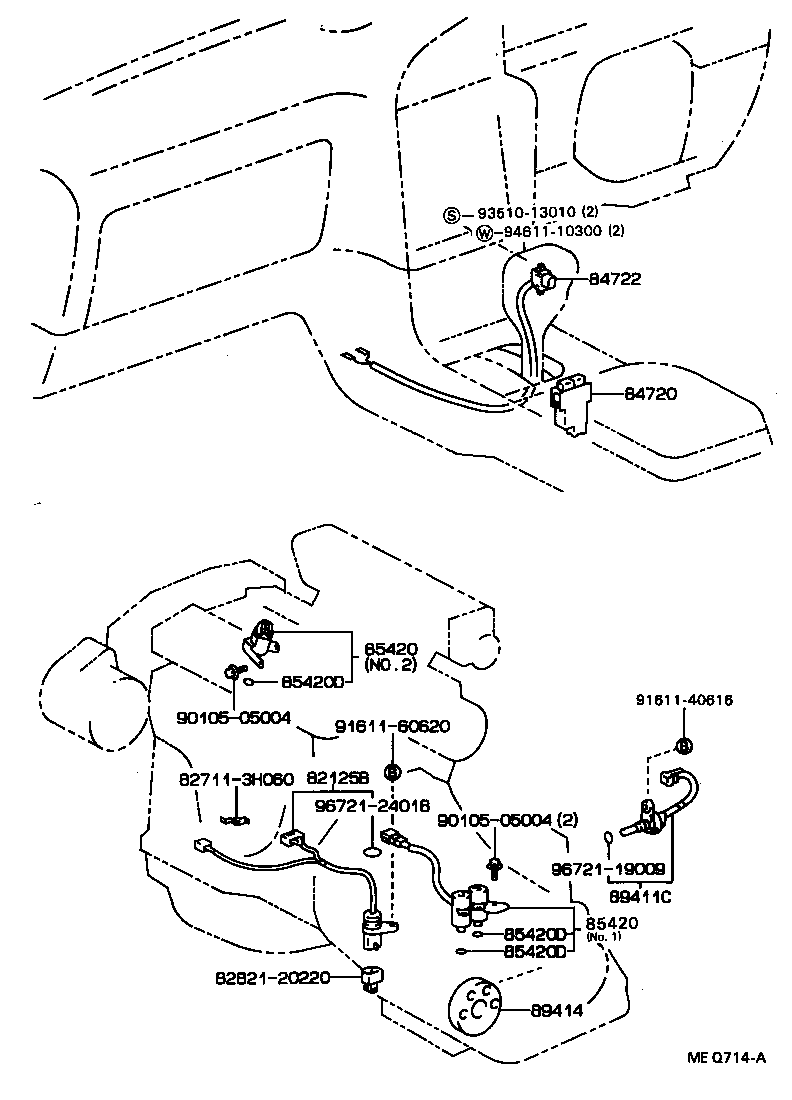

VZV33-ATPQK (1991)
Toyota Camry/Vista
(9007-9406)SV32,33..4FC
ECT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-32050 |
SV35,VZV3#..4FC |
1 | ||
| 82125-20150 |
SV32,33..4FC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-32060 |
SV32,33,35,VZV3#..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-32070K0 |
CV30,SV3#,VZV3#..4FC TAUPE,TRIM9# |
1 | ||
| 84722-3206002 |
CV30,SV3#,VZV3#..4FC TAUPE,TRIM9# |
1 | ||
| 84722-3206003 |
CV30,SV3#,VZV3#..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 84722-3206006 |
CV30,SV3#,VZV3#..HT..4FC SABLE,TRIM4# |
1 | ||
| 84722-32070E0 |
CV30,SV3#,VZV3#..4FC OAK,TRIM4# |
1 | ||
| 84722-32070B0 |
CV30,SV3#,VZV3#..4FC MI.GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32041 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32102 |
SV35,VZV3#..4FC NO.1 |
1 | ||
| 85420-20130 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-20110 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-32120 |
SV35,VZV3#..4FC NO.2 |
1 | ||
| 85420-32140 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32021 |
SV32,33..4FC NO.1 |
1 | ||
| 85420-32120 |
VZV3# NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32041 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32102 |
SV35,VZV3#..4FC NO.1 |
1 | ||
| 85420-20130 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-20110 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-32120 |
SV35,VZV3#..4FC NO.2 |
1 | ||
| 85420-32140 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32021 |
SV32,33..4FC NO.1 |
1 | ||
| 85420-32120 |
VZV3# NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32041 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32102 |
SV35,VZV3#..4FC NO.1 |
1 | ||
| 85420-20130 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-20110 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-32120 |
SV35,VZV3#..4FC NO.2 |
1 | ||
| 85420-32140 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32021 |
SV32,33..4FC NO.1 |
1 | ||
| 85420-32120 |
VZV3# NO.2 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-32020 |
VZV3#..4FC |
1 | ||
| 89411-20060 |
SV32,33..4FC |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-32020 |
VZV3#..4FC |
1 | ||
| 89414-32010 |
SV32,33..4FC |
1 | ||
| Common parts | ||||
| 35188-32011 | ||||
| 82821-20210 | ||||
| 82821-20220 | ||||
| 90301-67001 | ||||
| 91611-60614 | ||||
| 91611-60814 | ||||
| 93510-13010 | ||||
| 94611-10300 | ||||
(9007-9406)VZV3#
ECT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-32050 |
SV35,VZV3#..4FC |
1 | ||
| 82125-20150 |
SV32,33..4FC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-32060 |
SV32,33,35,VZV3#..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-32070K0 |
CV30,SV3#,VZV3#..4FC TAUPE,TRIM9# |
1 | ||
| 84722-3206002 |
CV30,SV3#,VZV3#..4FC TAUPE,TRIM9# |
1 | ||
| 84722-3206003 |
CV30,SV3#,VZV3#..4FC MEDIUM GRAY,TRIM1# |
1 | ||
| 84722-3206006 |
CV30,SV3#,VZV3#..HT..4FC SABLE,TRIM4# |
1 | ||
| 84722-32070E0 |
CV30,SV3#,VZV3#..4FC OAK,TRIM4# |
1 | ||
| 84722-32070B0 |
CV30,SV3#,VZV3#..4FC MI.GRAY,TRIM1# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32041 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32102 |
SV35,VZV3#..4FC NO.1 |
1 | ||
| 85420-20130 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-20110 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-32120 |
SV35,VZV3#..4FC NO.2 |
1 | ||
| 85420-32140 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32021 |
SV32,33..4FC NO.1 |
1 | ||
| 85420-32120 |
VZV3# NO.2 |
2 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-32041 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32102 |
SV35,VZV3#..4FC NO.1 |
1 | ||
| 85420-20130 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-20110 |
SV32,33..4FC NO.3 |
1 | ||
| 85420-32120 |
SV35,VZV3#..4FC NO.2 |
1 | ||
| 85420-32140 |
SV32,33..4FC NO.2 |
1 | ||
| 85420-32021 |
SV32,33..4FC NO.1 |
1 | ||
| 85420-32120 |
VZV3# NO.2 |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06005 |
SV32,33..4FC NO.3,ID=7 |
1 | ||
| 90301-06004 |
SV32,33..4FC |
2 | ||
| 96721-19017 |
SV32,33..4FC NO.3,ID=17 |
1 | ||
| 90301-06004 |
SV32,33..4FC NO.1 & NO.2 |
2 | ||
| 90301-06004 |
SV35,VZV3#..4FC |
3 | ||
| 90301-06004 |
SV32,33,35..4FC |
2 | ||
| 90301-06004 |
VZV3# NO. 1 & NO.2, |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-32020 |
VZV3#..4FC |
1 | ||
| 89411-20060 |
SV32,33..4FC |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-32020 |
VZV3#..4FC |
1 | ||
| 89414-32010 |
SV32,33..4FC |
1 | ||
| Common parts | ||||
| 82711-3H060 | ||||
| 82821-20220 | ||||
| 90105-05004 | ||||
| 91611-40616 | ||||
| 91611-60620 | ||||
| 93510-13010 | ||||
| 94611-10300 | ||||
| 96721-19009 | ||||
| 96721-24018 | ||||
