VZV32-ATPQK (1991)
Toyota Camry/Vista
ILLUST NO. 1 OF 3(9007-9406)ETO,LUM,VE,VL,XT,ZV

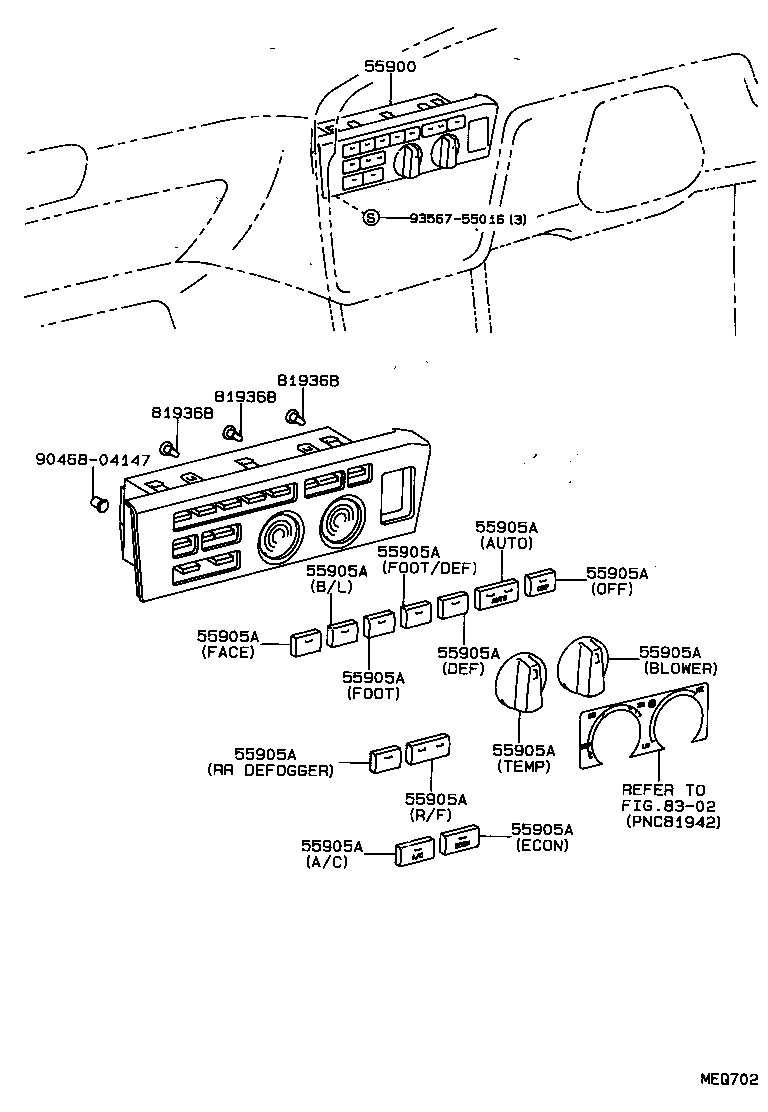

HEATER CONTROL(LOW)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-32280 |
VZV3# |
1 | ||
| 55900-32220 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 55900-32230 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾌﾛﾝﾄ ﾈﾂｾﾝ ｶﾞﾗｽ) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
3 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
3 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 90480-13024 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

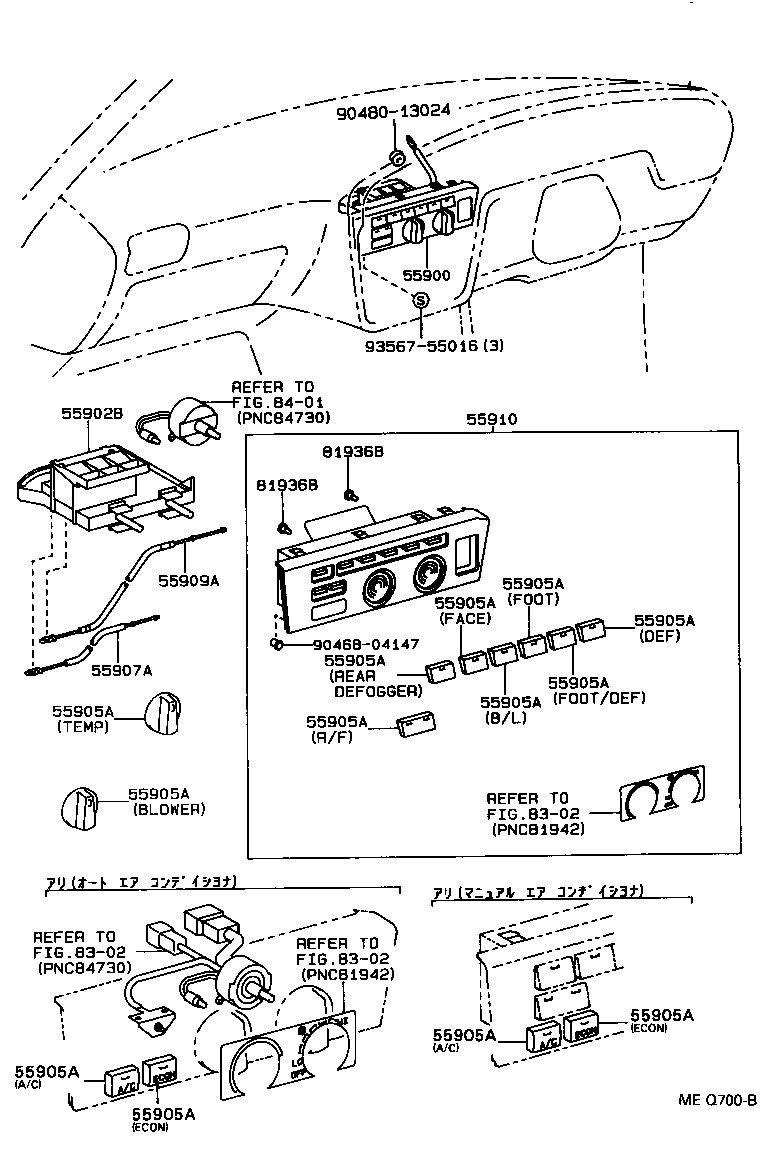

ILLUST NO. 1 OF 3(9007-9206)VZV3# ; (9206-9406)PRO,VR,VX,ZE,ZX
HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-32280 |
VZV3# |
1 | ||
| 55900-32220 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 55900-32230 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｱﾘ(ﾌﾛﾝﾄ ﾈﾂｾﾝ ｶﾞﾗｽ) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-32490 |
VZV3# A/C |
1 | ||
| 55905-32500 |
VZV3# ECON |
1 | ||
| 55905-32440 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT |
1 | ||
| 55905-32430 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX B/L |
1 | ||
| 55905-32420 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FACE |
1 | ||
| 55905-32530 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX TEMP & BLOWER |
2 | ||
| 55905-32510 |
VZV3# ｵｰﾄ |
1 | ||
| 55905-32450 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX FOOT/DEF |
1 | ||
| 55905-32480 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32490 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX A/C |
1 | ||
| 55905-32680 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX REAR DEFOGGER |
1 | ||
| 55905-32460 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX DEF |
1 | ||
| 55905-32520 |
VZV3# OFF |
1 | ||
| 55905-32470 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX R/F |
1 | ||
| 55905-32520 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX OFF |
1 | ||
| 55905-32500 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ECON |
1 | ||
| 55905-32670 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX ｵｰﾄ |
1 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
3 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
3 | ||
| 81936B - BULB ASSY, COOLER CONTROL | ||||
| 81936-32010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
3 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

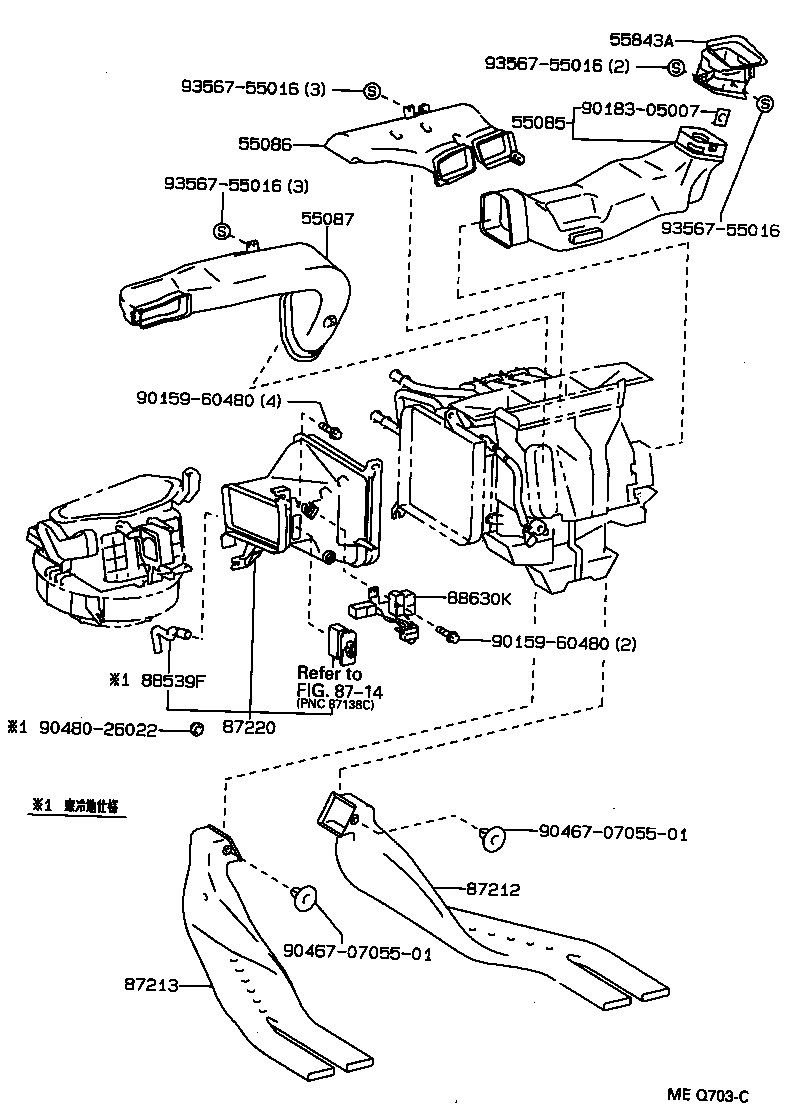

ILLUST NO. 2 OF 3(9007-9406)
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-32120 |
VZV3# |
1 | ||
| 55085-32120 |
CV30,SV3#,VZV3# |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-32070 |
CV30,SV3#,VZV3# |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-32060 |
CV30,SV3#,VZV3# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-32030 |
CV30,SV3#,VZV3# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-32020 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90159-60480 | ||||
| 90183-05007 | ||||
| 90467-0705501 | ||||
| 90480-26022 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8714 | ||||

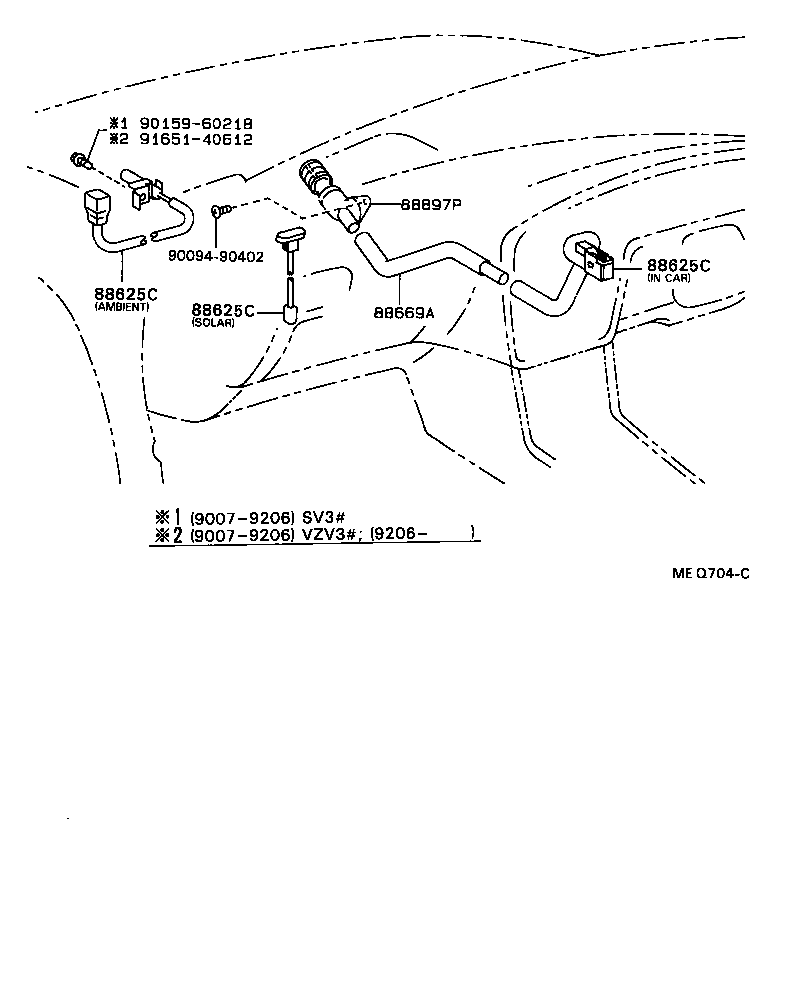

ILLUST NO. 3 OF 3(9007-9406)
AUTO AIR CONDITIONER SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32110 |
VZV3# AMBIENT SENSOR |
1 | ||
| 88625-32100 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX SOLAR SENSOR |
1 | ||
| 88625-32130 |
CV30,SV3#,VZV3# AMBIENT |
1 | ||
| 88625-32140 |
VZV3# AMBIENT |
1 | ||
| 88790-32020 |
CV30,SV3#,VZV3# IN CAR |
1 | ||
| 88625-32100 |
CV30,SV3#,VZV3# SOLAR |
1 | ||
| 88790-32020 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX IN CAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32110 |
VZV3# AMBIENT SENSOR |
1 | ||
| 88625-32100 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX SOLAR SENSOR |
1 | ||
| 88625-32130 |
CV30,SV3#,VZV3# AMBIENT |
1 | ||
| 88625-32140 |
VZV3# AMBIENT |
1 | ||
| 88790-32020 |
CV30,SV3#,VZV3# IN CAR |
1 | ||
| 88625-32100 |
CV30,SV3#,VZV3# SOLAR |
1 | ||
| 88790-32020 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX IN CAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32110 |
VZV3# AMBIENT SENSOR |
1 | ||
| 88625-32100 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX SOLAR SENSOR |
1 | ||
| 88625-32130 |
CV30,SV3#,VZV3# AMBIENT |
1 | ||
| 88625-32140 |
VZV3# AMBIENT |
1 | ||
| 88790-32020 |
CV30,SV3#,VZV3# IN CAR |
1 | ||
| 88625-32100 |
CV30,SV3#,VZV3# SOLAR |
1 | ||
| 88790-32020 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX IN CAR SENSOR |
1 | ||
| 88669A - HOSE (FOR COOLER THERMISTOR) | ||||
| 88669-32040 |
CV30,SV3#,VZV3# |
1 | ||
| 88669-32040 |
SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
1 | ||
| Common parts | ||||
| 90094-90402 | ||||
| 90159-60218 | ||||
| 91651-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
