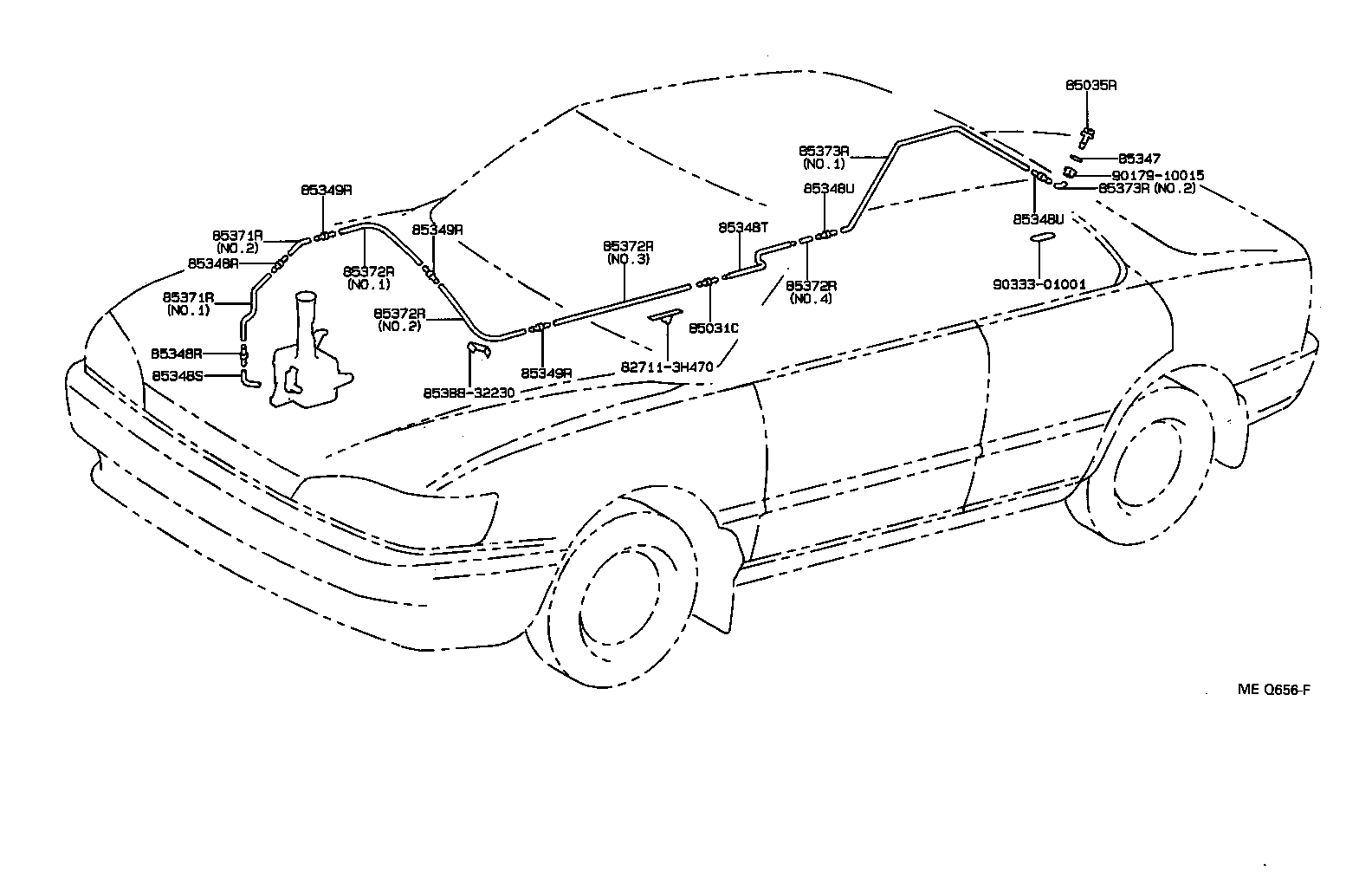

VZV32-ATPQK (1991)
Toyota Camry/Vista
(9007-9406)HT..GT,PRO,VR,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-90A00 |
VZV3# |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-32020 |
VZV3# |
1 | ||
| 85391-32020 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 85391-32020 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) |
1 | ||
| 85347 - PACKING, REAR WASHER | ||||
| 85347-12010 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 85347-12010 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 85347-12010 |
VZV3# |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX |
1 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
2 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-32260 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) |
1 | ||
| 85375-32260 |
VZV3# |
1 | ||
| 85375-32260 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(TEMS) |
2 | ||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) |
2 | ||
| 85349-89122 |
VZV32,33 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
2 | ||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
2 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(TEMS) |
2 | ||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) |
2 | ||
| 85349-89122 |
VZV32,33 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
2 | ||
| 85349-89122 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-) |
2 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
VZV3# |
3 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) |
1 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
3 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
VZV3# |
3 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) |
1 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
3 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
VZV3# |
3 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) |
1 | ||
| 85349-89122 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
3 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1 |
1 | ||
| 90099-33299 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=1000,NO.2 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1 |
1 | ||
| 90099-33299 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=1000,NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1,NO.2 |
1 | ||
| 85379-32240 |
VZV3# 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
VZV3# NO.1,NO.3,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX *H,L=480,NO.1,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) *H,L=1130,NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) 長さ=30,NO.4 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1,NO.2 |
1 | ||
| 85379-32240 |
VZV3# 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
VZV3# NO.1,NO.3,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX *H,L=480,NO.1,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) *H,L=1130,NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) 長さ=30,NO.4 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1,NO.2 |
1 | ||
| 85379-32240 |
VZV3# 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
VZV3# NO.1,NO.3,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX *H,L=480,NO.1,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) *H,L=1130,NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) 長さ=30,NO.4 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90446-07001 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX NO.1,NO.2 |
1 | ||
| 85379-32240 |
VZV3# 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
VZV3# NO.1,NO.3,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..PRO,VR,VX,ZE,ZX *H,L=480,NO.1,NO.2 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) *H,L=1130,NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX 長さ=30,NO.4 |
1 | ||
| 90446-07001 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) NO.3 |
1 | ||
| 85379-32240 |
CV30,SV3#,VZV3#..HT..(PRO,VR,VX) 長さ=30,NO.4 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
VZV3# L=1450,ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.2 |
1 | ||
| 90446-07001 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.1 |
1 | ||
| 90446-07001 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.1 |
1 | ||
| 90099-33080 |
VZV3# L=1450,ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.2 |
1 | ||
| 90099-33080 |
VZV32,33 L=1450,ｶﾝﾚｲﾁ ｽﾍﾟﾂｸ OR ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ-),NO.2 |
1 | ||
| 90446-07001 |
VZV32,33 ｶﾝﾚｲﾁ ｽﾍﾟﾂｸ OR ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ-),NO.1 |
1 | ||
| 90099-33080 |
VZV3# *H,L=40,ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),NO.2 |
1 | ||
| 90446-07001 |
VZV3# *H,L=1760,ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),NO.1 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
VZV3# L=1450,ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.2 |
1 | ||
| 90446-07001 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.1 |
1 | ||
| 90446-07001 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(*66) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.1 |
1 | ||
| 90099-33080 |
VZV3# L=1450,ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(TEMS) OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ),NO.2 |
1 | ||
| 90099-33080 |
VZV32,33 L=1450,ｶﾝﾚｲﾁ ｽﾍﾟﾂｸ OR ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ-),NO.2 |
1 | ||
| 90446-07001 |
VZV32,33 ｶﾝﾚｲﾁ ｽﾍﾟﾂｸ OR ﾌﾟﾛﾐﾈﾝﾄG OR ｱﾘ(ﾚｻﾞ-ﾊﾟﾂｹ-ｼﾞ) OR ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ-),NO.1 |
1 | ||
| 90099-33080 |
VZV3# *H,L=40,ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),NO.2 |
1 | ||
| 90446-07001 |
VZV3# *H,L=1760,ﾌﾟﾛﾐﾈﾝﾄG OR ﾚｻﾞ- ﾊﾟﾂｹ-ｼﾞ OR ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) OR ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-),NO.1 |
1 | ||
| Common parts | ||||
| 82711-3H470 | ||||
| 85388-32230 | ||||
| 90179-10015 | ||||
| 90333-01001 | ||||
