VZV32-ATPQK (1991)

Toyota Camry/Vista

Production May 1991 - Jun 1994
Engine 4VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9105- )1VZFE,4VZFE

Click highlighted areas on diagram

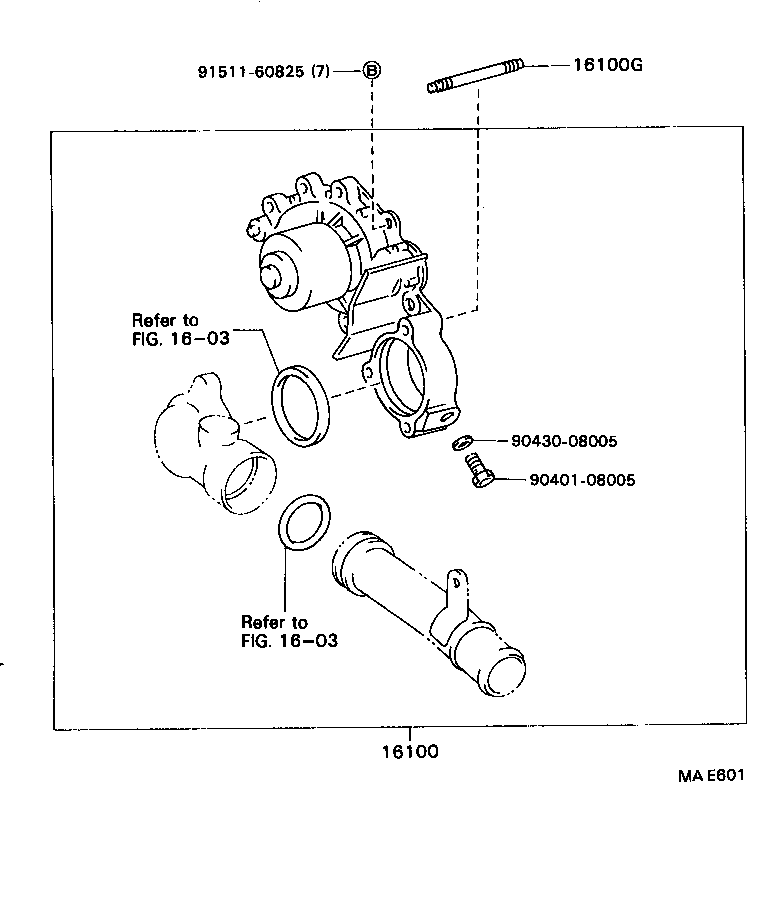

diagram 1603 1603 16100 16100G 9040108005 9043008005 9151160825
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69335

4VZFE..VZV3#

 1
16100-69305

1VZFE,4VZFE..VZV3#

 1
16100G - BOLT, STUD(FOR WATER PUMP SET)
90116-08270

1VZFE,4VZFE..VZV3#

 3
Common parts
90401-08005
90430-08005
91511-60825
Linked diagrams
1603
