VZV31-ATPQK (1990)
Toyota Camry/Vista

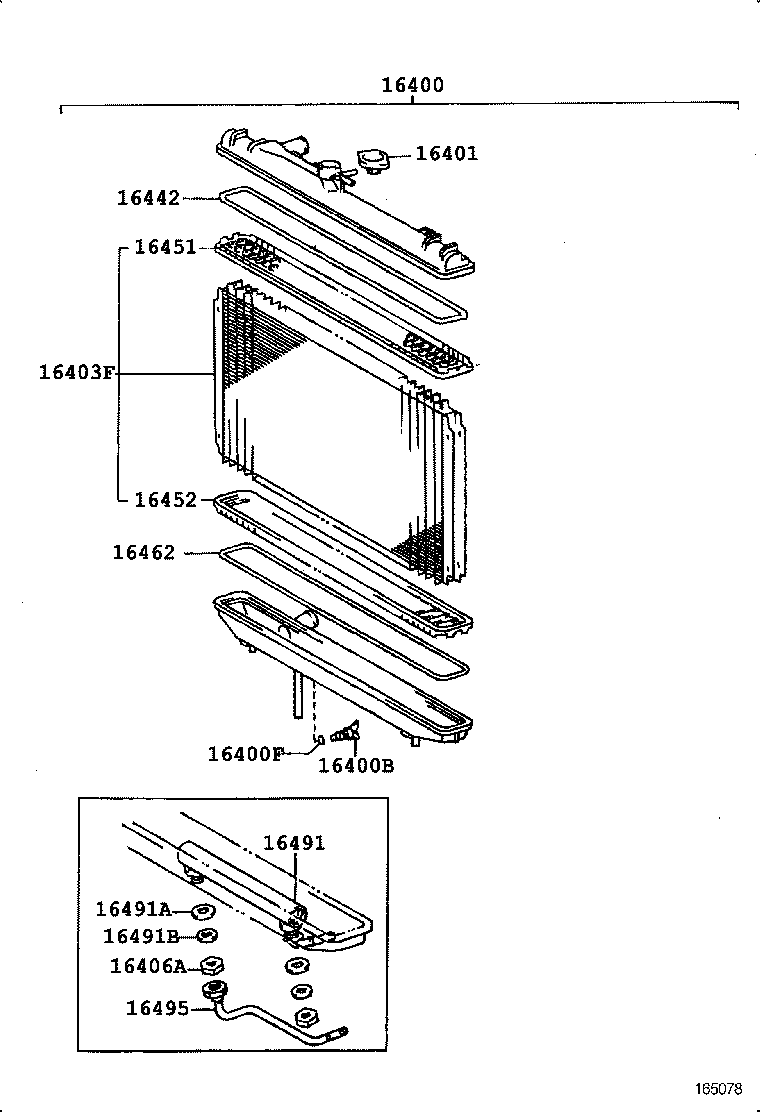

ILLUST NO. 2 OF 2(9007- )1VZFE,4VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-62080 |
1VZFE,4VZFE..VZV3#..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-62080 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16406A - SUPPORT(FOR OIL COOLER) | ||||
| 16406-62060 |
1VZFE,4VZFE..VZV3#..4FC |
2 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-74670 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-74680 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-74680 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-74670 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16491 - COOLER, OIL(FOR ATM) | ||||
| 16491-62060 |
1VZFE,4VZFE..VZV3#..4FC |
1 | ||
| 16491A - RING, O(FOR ATM OIL COOLER) | ||||
| 16492-62060 |
1VZFE,4VZFE..VZV3#..4FC |
2 | ||
| 16491B - WASHER, PLATE(FOR ATM OIL COOLER) | ||||
| 16493-62060 |
1VZFE,4VZFE..VZV3#..4FC |
2 | ||
| 16495 - NUT, FLARE(FOR ATM OIL COOLER) | ||||
| 16495-74690 |
1VZFE,4VZFE..VZV3#..4FC |
1 | ||

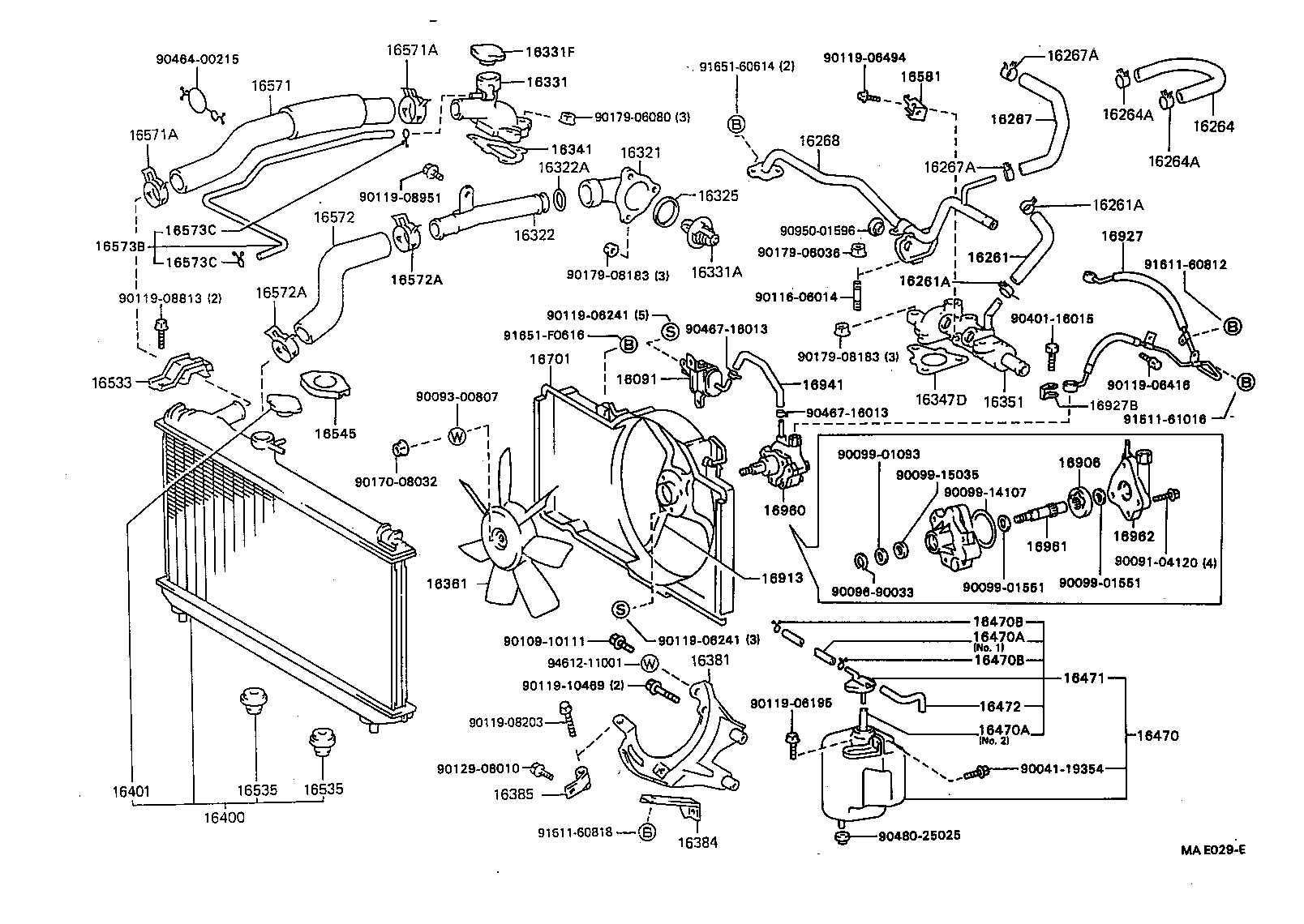

ILLUST NO. 1 OF 2(9007-9206)1VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16091 - FILTER SUB-ASSY, HYDRAULIC MOTER OIL | ||||
| 16091-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62010 |
1VZFE..VZV3# |
1 | ||
| 16268-62011 |
1VZFE..VZV30,31 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-62010 |
1VZFE..VZV3# |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35031 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62020 |
1VZFE..VZV30,31 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
1VZFE,4VZFE..VZV3# *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62070 |
1VZFE..VZV3# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62020 |
1VZFE..VZV30,31 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-62020 |
1VZFE..VZV30,31 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-62011 |
1VZFE..VZV30,31 |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62012 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-62030 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-62080 |
1VZFE,4VZFE..VZV3#..4FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-62030 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1VZFE,4VZFE..VZV3# 長さ=600,NO.2 |
1 | ||
| 85338-62030 |
1VZFE,4VZFE..VZV3# NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1VZFE,4VZFE..VZV3# 長さ=600,NO.2 |
1 | ||
| 85338-62030 |
1VZFE,4VZFE..VZV3# NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-62020 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74140 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-62010 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64070 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-64070 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-62030 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-62020 |
1VZFE..VZV3# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1VZFE..VZV3# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1VZFE..VZV3# WATER INLET SIDE |
1 | ||
| 90467-37002 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
1VZFE..VZV3# ﾗｼﾞｴｰﾀ側 |
1 | ||
| 90467-37002 |
1VZFE..VZV3# WATER INLET SIDE |
1 | ||
| 90467-37002 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-11085 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-11085 |
1VZFE,4VZFE..VZV3# |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16912-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16906 - GEAR SET, HYDRAULIC | ||||
| 16906-50010 |
1VZFE,4VZFE..VZV3# ﾏｰｸ 1 |
1 | ||
| 16906-50020 |
1VZFE,4VZFE..VZV3# ﾏｰｸ 2 |
1 | ||
| 16906-50030 |
1VZFE,4VZFE..VZV3# ﾏｰｸ 3 |
1 | ||
| 16913 - STAY, HYDRAULIC MOTOR FAN SHROUD | ||||
| 16913-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16927 - HOSE, HYDRAULIC MOTOR PRESSURE | ||||
| 16927-62010 |
1VZFE..VZV30,31 |
1 | ||
| 16927B - GASKET(FOR PRESSURE HOSE) | ||||
| 44327-12010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 | ||||
| 16941-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16960 - MOTOR ASSY, HYDRAULIC GEAR | ||||
| 16960-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16961 - SHAFT, HYDRAULIC GEAR MOTOR | ||||
| 16961-50010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| 16962 - COVER, HYDRAULIC GEAR MOTOR | ||||
| 16962-62010 |
1VZFE,4VZFE..VZV3# |
1 | ||
| Common parts | ||||
| 90041-19354 | ||||
| 90091-04120 | ||||
| 90093-00807 | ||||
| 90096-90033 | ||||
| 90099-01093 | ||||
| 90099-01551 | ||||
| 90099-14107 | ||||
| 90099-15035 | ||||
| 90109-10111 | ||||
| 90116-06014 | ||||
| 90119-06195 | ||||
| 90119-06241 | ||||
| 90119-06416 | ||||
| 90119-06494 | ||||
| 90119-08203 | ||||
| 90119-08813 | ||||
| 90119-08951 | ||||
| 90119-10469 | ||||
| 90129-08010 | ||||
| 90170-08032 | ||||
| 90179-06036 | ||||
| 90179-06080 | ||||
| 90179-08183 | ||||
| 90401-16015 | ||||
| 90464-00215 | ||||
| 90467-16013 | ||||
| 90480-25025 | ||||
| 90950-01596 | ||||
| 91511-61016 | ||||
| 91611-60812 | ||||
| 91611-60818 | ||||
| 91651-60614 | ||||
| 91651-F0616 | ||||
| 94612-11001 | ||||
