VZV31-ATPQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE..4FC

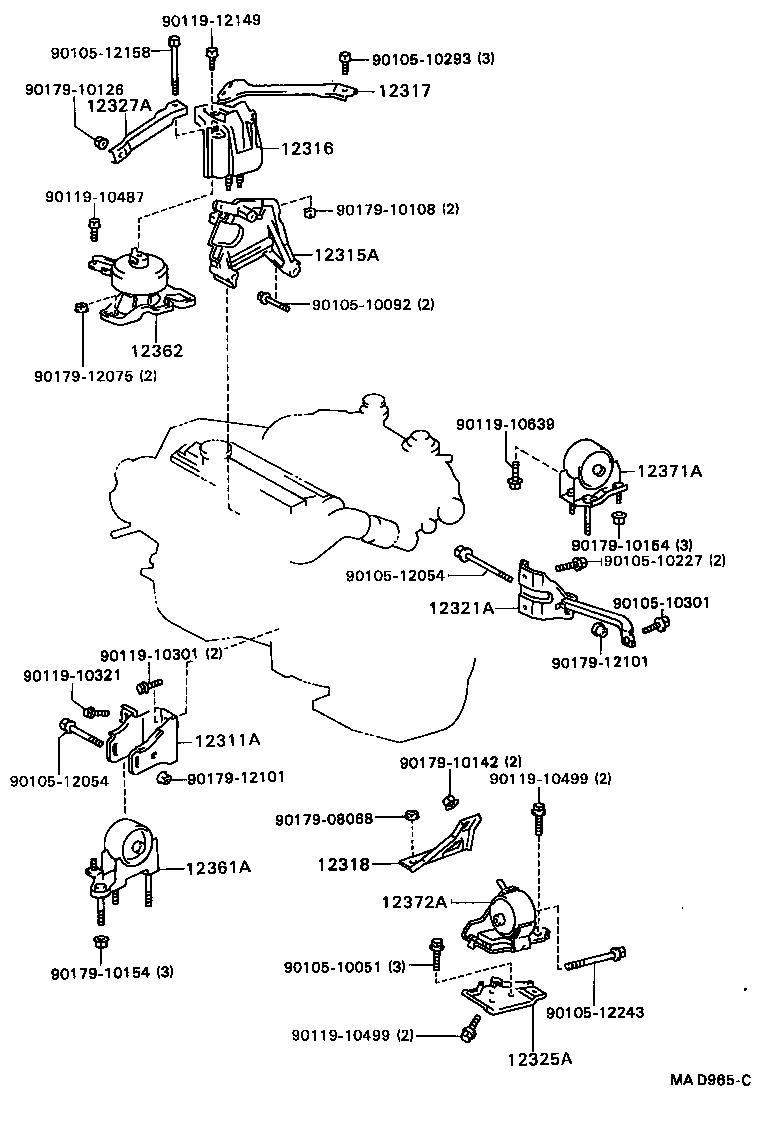

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12317 12318 12321A 12325A 12327A 12361A 12362 12371A 12372A 9010510051 9010510092 9010510227 9010510293 9010510301 9010512054 9010512054 9010512158 9010512243 9011910301 9011910321 9011910487 9011910499 9011910499 9011910639 9011912149 9017908068 9017910108 9017910126 9017910142 9017910154 9017910154 9017912075 9017912101 9017912101
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-62010

1VZFE,4VZFE..VZV3#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-62020

1VZFE,4VZFE..VZV3#

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-62010

1VZFE,4VZFE..VZV3#

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-62020

1VZFE..VZV30,31

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-62030

1VZFE..VZV30,31..4FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-62050

1VZFE..VZV3#..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-62020

1VZFE,4VZFE..VZV3#..4FC

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-62020

1VZFE,4VZFE..VZV3#

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-62060

1VZFE,4VZFE..VZV3#..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-62040

1VZFE,4VZFE..VZV3#

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-62040

1VZFE,4VZFE..VZV3#..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-62060

1VZFE,4VZFE..VZV3#..4FC

 1
Common parts
90105-10051
90105-10092
90105-10227
90105-10293
90105-10301
90105-12054
90105-12158
90105-12243
90119-10301
90119-10321
90119-10487
90119-10499
90119-10639
90119-12149
90179-08068
90179-10108
90179-10126
90179-10142
90179-10154
90179-12075
90179-12101
