VZV31-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

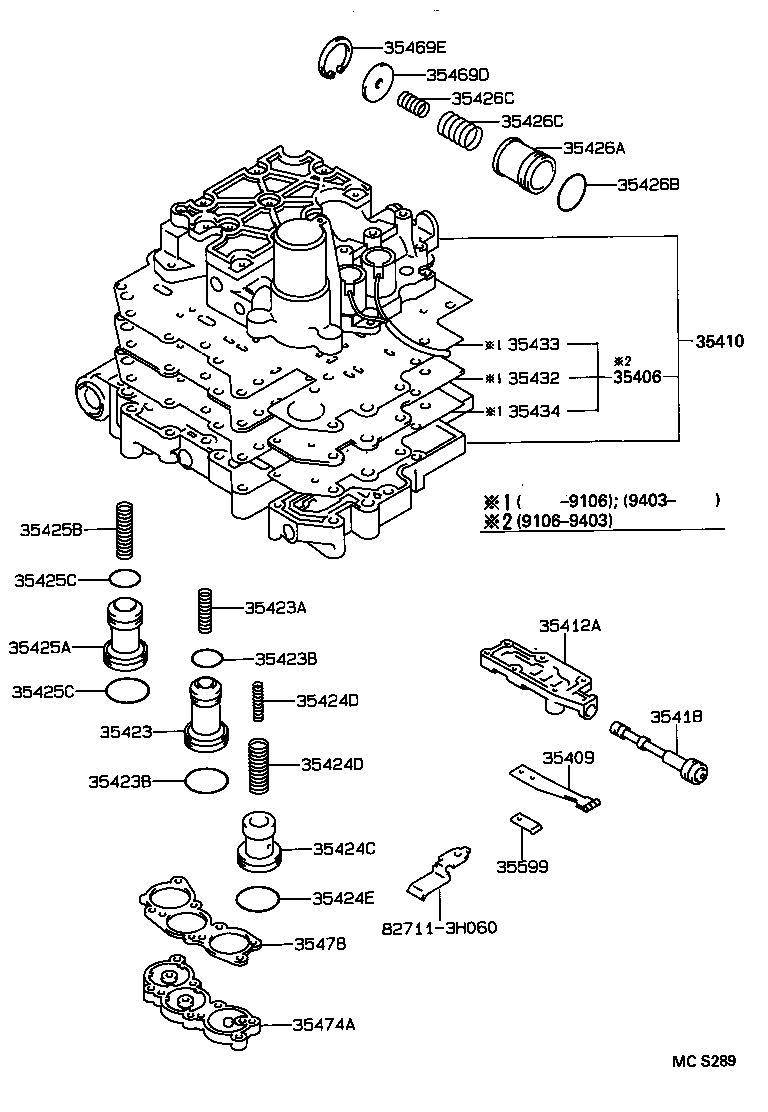

ILLUST NO. 1 OF 5(9007- )SV35,VZV3#

Click highlighted areas on diagram

A540E,A540H

diagram 35406 35409 35410 35412A 35418 35423 35423A 35423B 35423B 35424C 35424D 35424D 35424E 35425A 35425B 35425C 35425C 35426A 35426B 35426C 35426C 35432 35433 35434 35469D 35469E 35474A 35478 35599 827113H060
Part # Description Qty Price
Common parts
82711-3H060

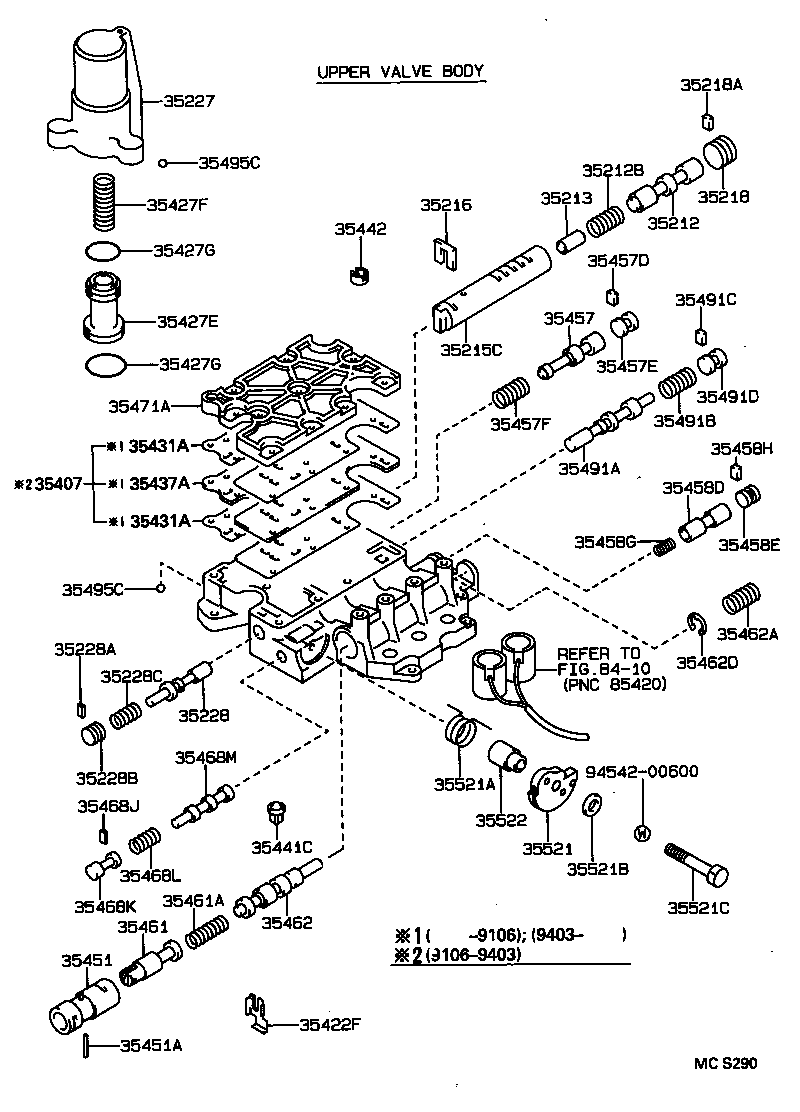

ILLUST NO. 2 OF 5(9007- )SV35,VZV3#

Click highlighted areas on diagram

A540E,A540H

diagram 35212 35212B 35213 35215C 35216 35218 35218A 35227 35228 35228A 35228B 35228C 35407 35422F 35427E 35427F 35427G 35427G 35431A 35431A 35437A 35441C 35442 35451 35451A 35457 35457D 35457E 35457F 35458D 35458E 35458G 35458H 35461 35461A 35462 35462A 35462D 35468J 35468K 35468L 35468M 35471A 35491A 35491B 35491C 35491D 35495C 35495C 35521 35521A 35521B 35521C 35522 8410 9454200600
Part # Description Qty Price
Common parts
94542-00600
Linked diagrams
8410

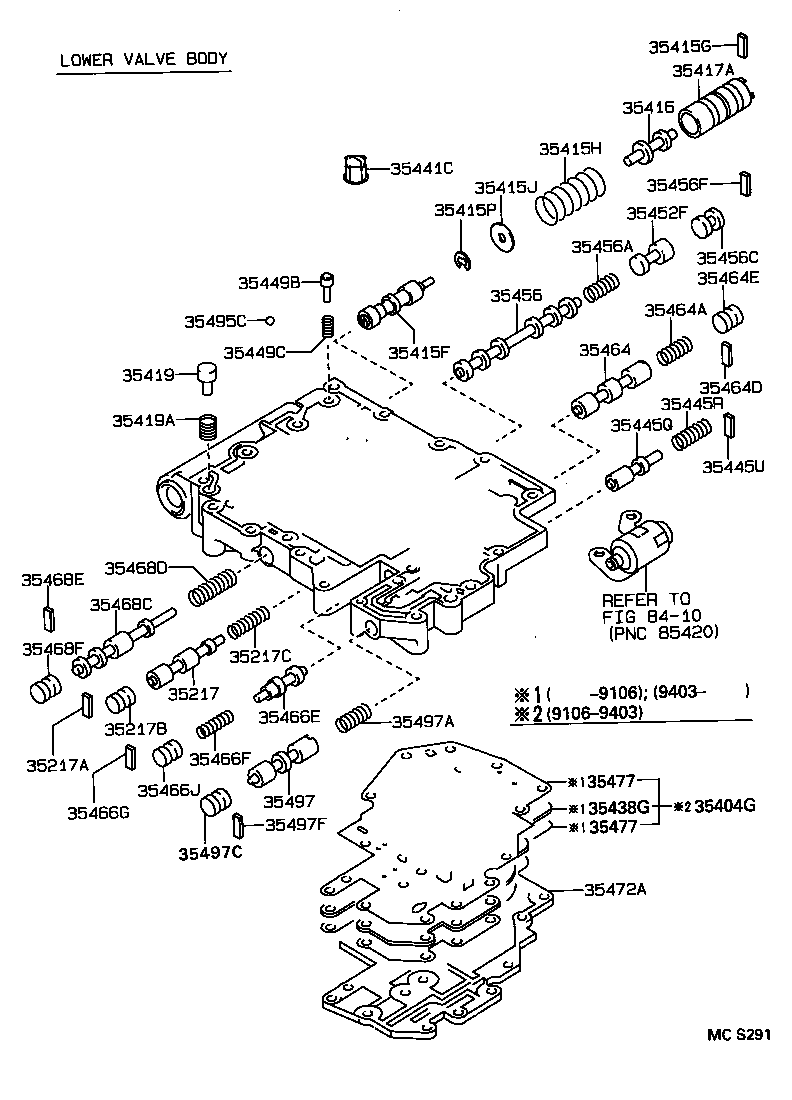

ILLUST NO. 3 OF 5(9007- )SV35,VZV3#

Click highlighted areas on diagram

A540E,A540H

diagram 35217 35217A 35217B 35217C 35404G 35415F 35415G 35415H 35415J 35415P 35416 35417A 35419 35419A 35438G 35441C 35445Q 35445R 35445U 35449B 35449C 35452F 35456 35456A 35456C 35456F 35464 35464A 35464D 35464E 35466E 35466F 35466G 35466J 35468C 35468D 35468E 35468F 35472A 35477 35477 35495C 35497 35497A 35497C 35497F 8410
Part # Description Qty Price
Linked diagrams
8410

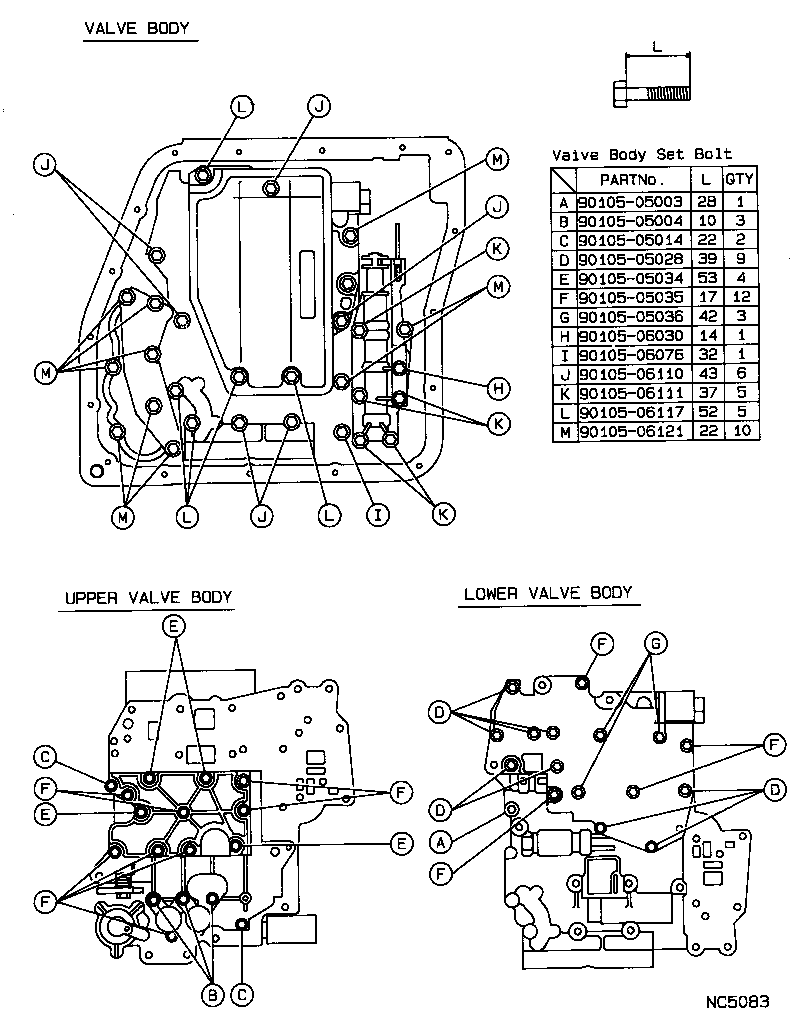

ILLUST NO. 5 OF 5(9007-9403)SV35,VZV3#

Click highlighted areas on diagram

A540E,A540H

diagram 9010505003 9010505004 9010505014 9010505028 9010505034 9010505035 9010505036 9010506030 9010506076 9010506110 9010506111 9010506117 9010506121
Part # Description Qty Price
Common parts
90105-05003
90105-05004
90105-05014
90105-05028
90105-05034
90105-05035
90105-05036
90105-06030
90105-06076
90105-06110
90105-06111
90105-06117
90105-06121

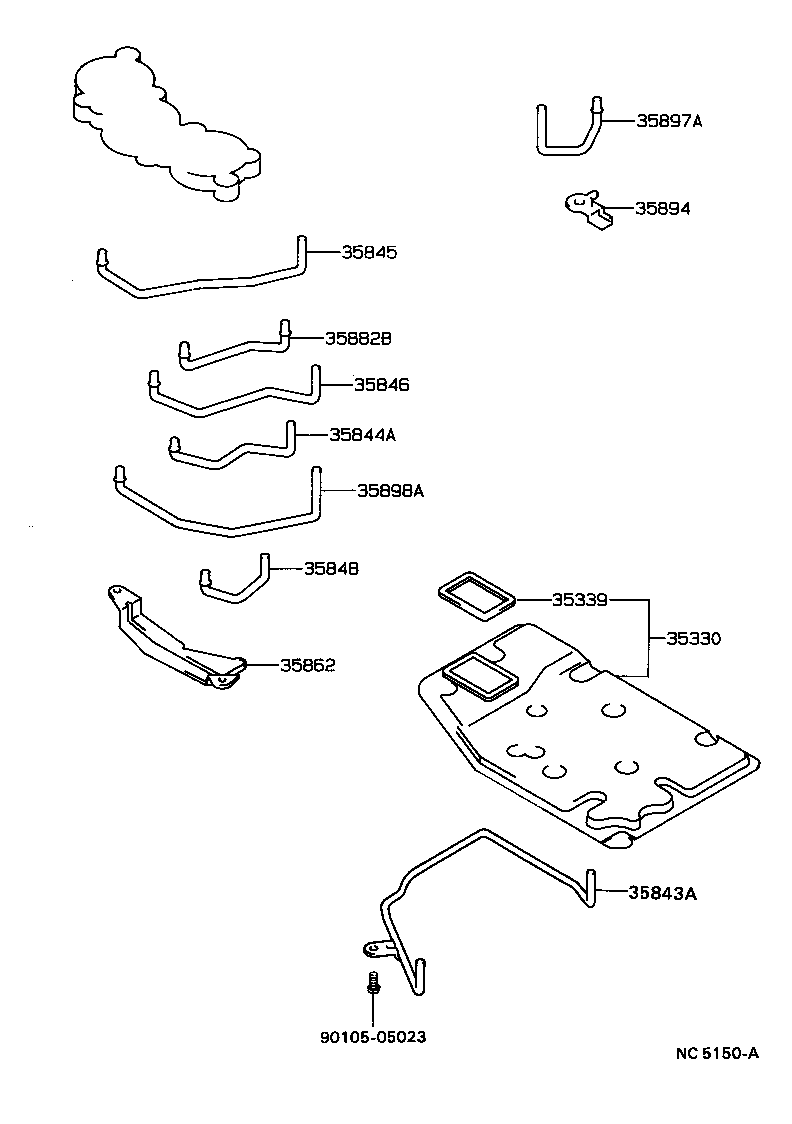

ILLUST NO. 4 OF 5(9007- )SV35,VZV3#

Click highlighted areas on diagram

A540E,A540H

diagram 35330 35339 35843A 35844A 35845 35846 35848 35862 35882B 35894 35897A 35898A 9010505023
Part # Description Qty Price
Common parts
90105-05023
