VZV31-ATMQK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
1VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9206)1VZFE

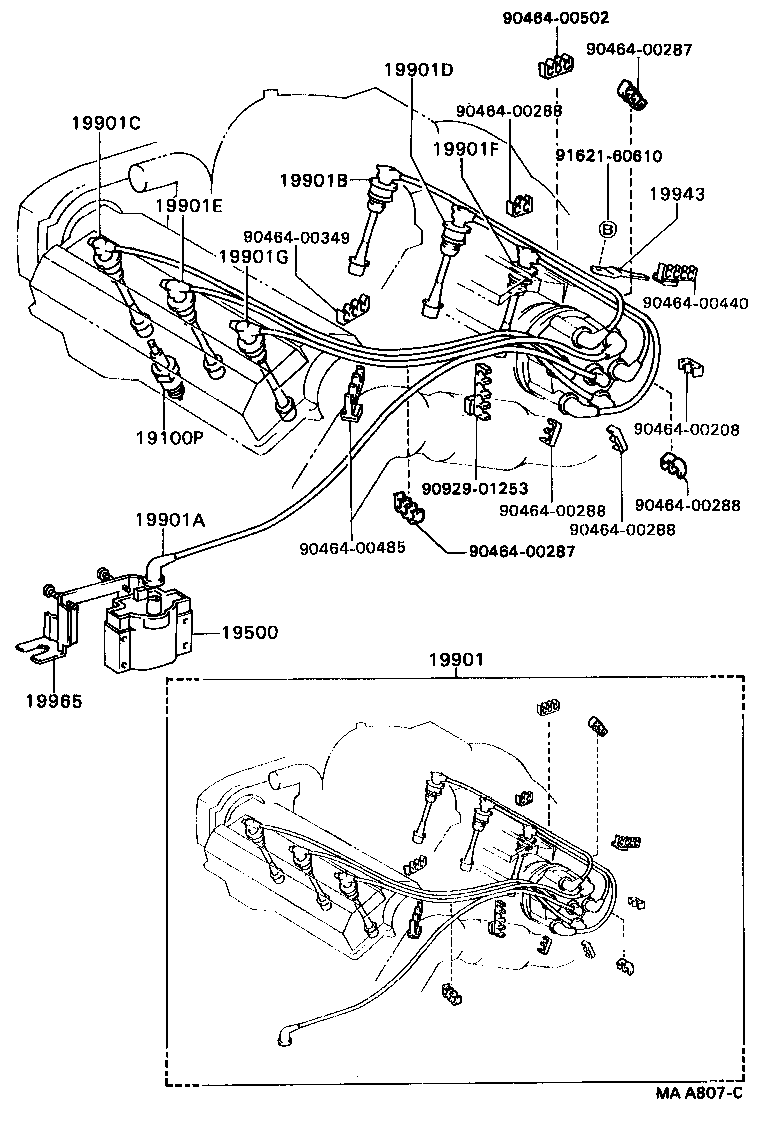

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01127 |
1VZFE,4VZFE..VZV3# PQ20R |
6 | ||
| 90919-01128 |
1VZFE,4VZFE..VZV3# BCPR6EP |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02175 |
1VZFE..VZV30,31 |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21499 |
1VZFE..VZV30,31 |
1 | ||
| 90919-21530 |
1VZFE..VZV30,31 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13376 |
1VZFE..VZV30,31 |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-15159 |
1VZFE..VZV30,31 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-15160 |
1VZFE..VZV30,31 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-15161 |
1VZFE..VZV30,31 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-15162 |
1VZFE..VZV30,31 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-15163 |
1VZFE..VZV30,31 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-15164 |
1VZFE..VZV30,31 |
1 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19943-62010 |
1VZFE..VZV30,31 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03120 |
1VZFE,4VZFE..VZV3# |
1 | ||
| Common parts | ||||
| 90464-00208 | ||||
| 90464-00287 | ||||
| 90464-00288 | ||||
| 90464-00349 | ||||
| 90464-00440 | ||||
| 90464-00485 | ||||
| 90464-00502 | ||||
| 90929-01253 | ||||
| 91621-60610 | ||||
