VZV30-ATPQK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
1VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9406)VZV3#

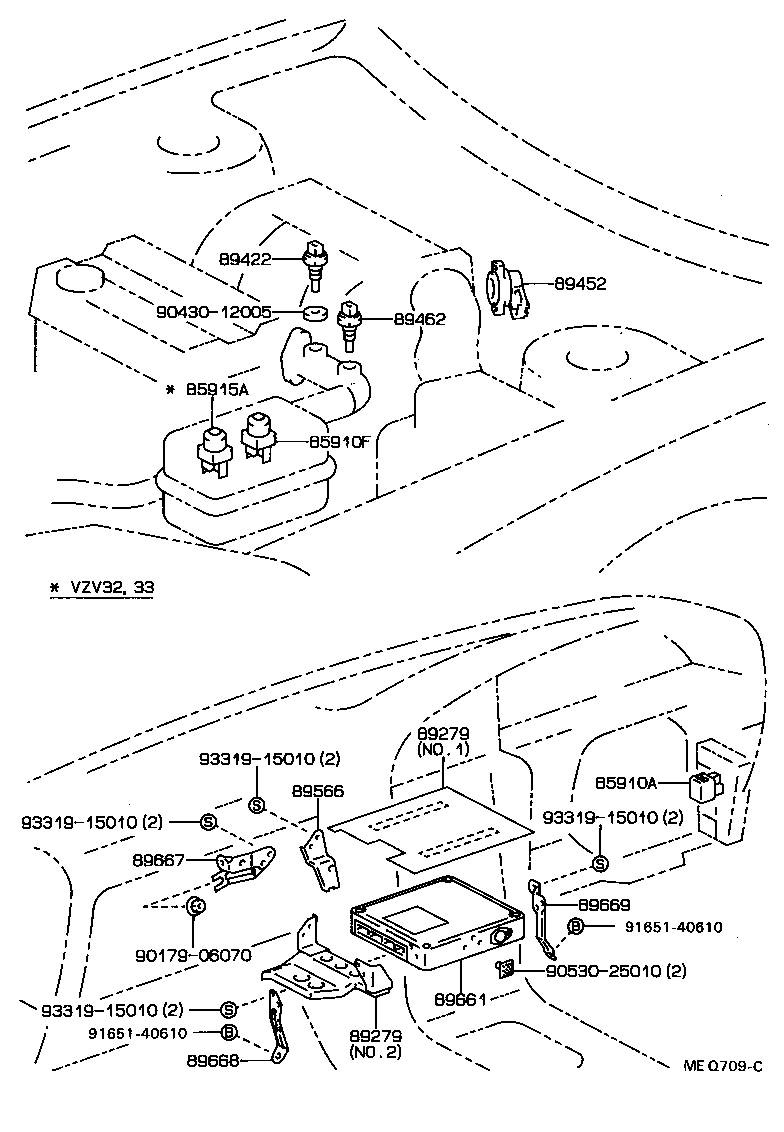

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
SV3#,VZV3# |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02004 |
SV3#,VZV3# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32170 |
SV3#,VZV3# NO.1 |
1 | ||
| 89279-32180 |
SV3#,VZV30,31 NO.2 |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32170 |
SV3#,VZV3# NO.1 |
1 | ||
| 89279-32180 |
SV3#,VZV30,31 NO.2 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
SV3#,VZV3# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-32060 |
VZV3# |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20030 |
VZV30,31 |
1 | ||
| 89566 - BRACKET, FUEL INJECTION COMPUTER | ||||
| 89566-32050 |
VZV30,31;SV35,VZV32,33..4FC |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-32710 |
VZV3#..4FC |
1 | ||
| 89661-32711 |
VZV30,31..4FC |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-32030 |
SV3#,VZV3# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-32040 |
SV3#,VZV30,31 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-32050 |
SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90430-12005 | ||||
| 90530-25010 | ||||
| 91651-40610 | ||||
| 93319-15010 | ||||
