VZV30-ATPQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

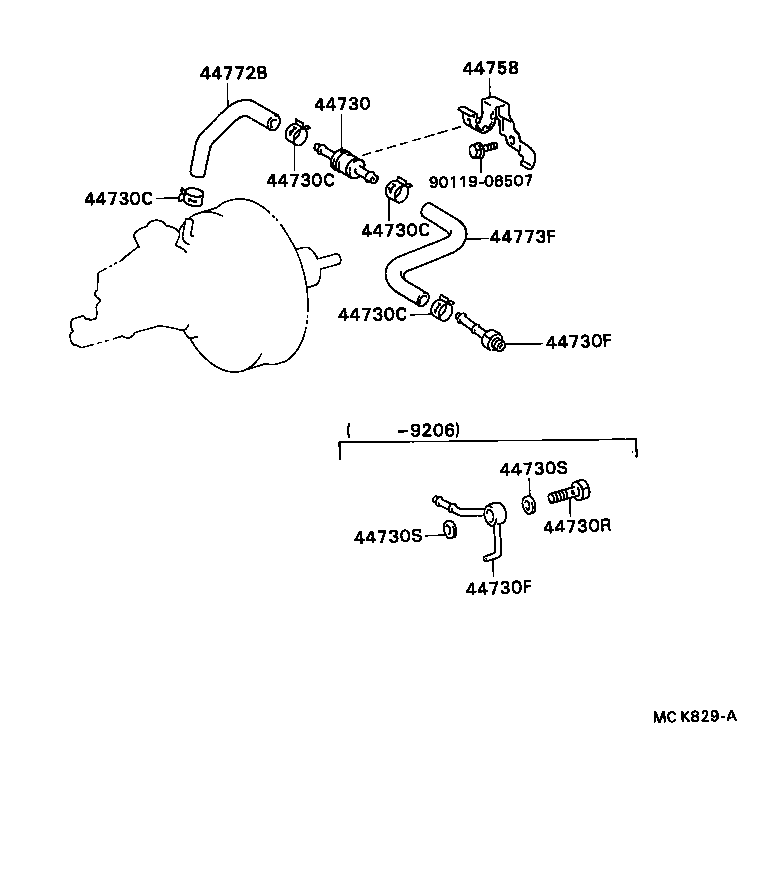

ILLUST NO. 2 OF 2(9007- )VZV3#

Click highlighted areas on diagram

diagram 44730 44730C 44730C 44730C 44730C 44730F 44730F 44730R 44730S 44730S 44758 44772B 44773F 9011906507
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20120

SV3#,VZV3#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730C - CLIP(FOR VACUUM HOSE)
90467-16017

CV30,SV3#,VZV3#

 4
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09125

VZV3#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09125

VZV3#

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

VZV3#

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

VZV3#

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12005

VZV3#

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-32050

SV3#,VZV3#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-32090

VZV3#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-32150

VZV30,31

 1
Common parts
90119-06507

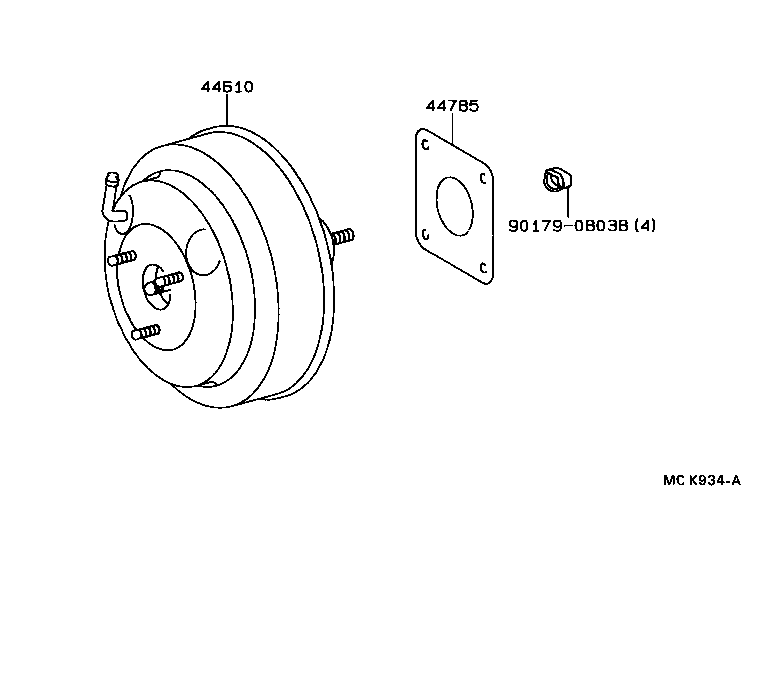

ILLUST NO. 1 OF 2(9007- )

Click highlighted areas on diagram

diagram 44610 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-32410

SV35;SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*66)

 1
44610-32410

SV3#,VZV30,31

ｱﾘ(*66)

 1
44610-32430

SV32,33,VZV3#..GT,PRO

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

CV30,SV3#,VZV3#

 1
Common parts
90179-08038
