VZV30-ATPQK (1990)
Toyota Camry/Vista
(9007- )SV35,VZV3#
A540E,A540H

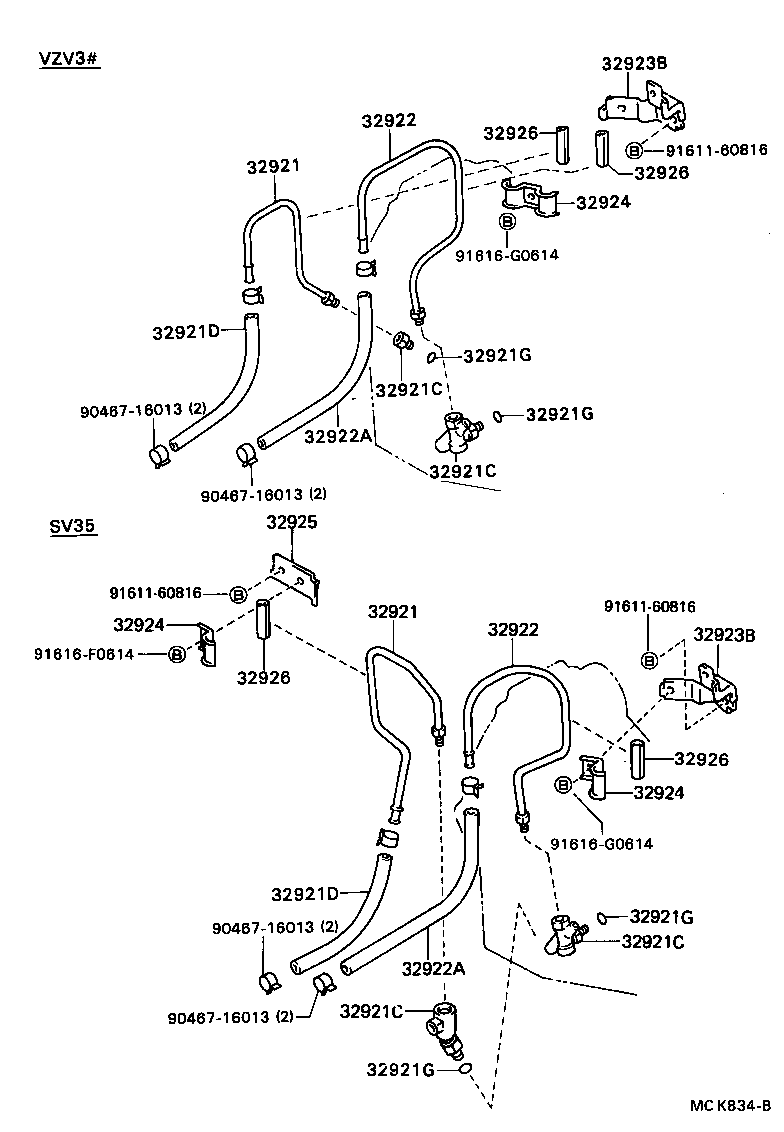

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-32130 |
VZV3#..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-32130 |
VZV3#..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
VZV3#..4FC INLET |
1 | ||
| 32901-32030 |
SV35,VZV3#..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
VZV3#..4FC INLET |
1 | ||
| 32901-32030 |
SV35,VZV3#..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
VZV3#..4FC INLET |
1 | ||
| 32901-32030 |
SV35,VZV3#..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16021 |
VZV3#..4FC INLET |
1 | ||
| 32901-32030 |
SV35,VZV3#..4FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17117 |
VZV3#..4FC |
1 | ||
| 90445-17124 |
VZV3#..4FC |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17117 |
VZV3#..4FC |
1 | ||
| 90445-17124 |
VZV3#..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CV30,SV3#,VZV3#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CV30,SV3#,VZV3#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CV30,SV3#,VZV3#..4FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
CV30,SV3#,VZV3#..4FC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-32070 |
SV35,VZV3#..4FC |
1 | ||
| 32922-32071 |
SV35,VZV3#..4FC |
1 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-32070 |
SV35,VZV3#..4FC |
1 | ||
| 32922-32071 |
SV35,VZV3#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17106 |
SV35,VZV3#..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17106 |
SV35,VZV3#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-32040 |
VZV3#..4FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-32040 |
VZV3#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12044 |
VZV3#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12044 |
VZV3#..4FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-12044 |
VZV3#..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-32010 |
SV35,VZV3#..4FC 長さ=40,内径=10 |
1 | ||
| 32926-30020 |
SV35,VZV3#..4FC 長さ=35,内径=10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-32010 |
SV35,VZV3#..4FC 長さ=40,内径=10 |
1 | ||
| 32926-30020 |
SV35,VZV3#..4FC 長さ=35,内径=10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-32010 |
SV35,VZV3#..4FC 長さ=40,内径=10 |
1 | ||
| 32926-30020 |
SV35,VZV3#..4FC 長さ=35,内径=10 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-32010 |
SV35,VZV3#..4FC 長さ=40,内径=10 |
1 | ||
| 32926-30020 |
SV35,VZV3#..4FC 長さ=35,内径=10 |
1 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60816 | ||||
| 91616-F0614 | ||||
| 91616-G0614 | ||||
