VZV30-ATPQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)1VZFE

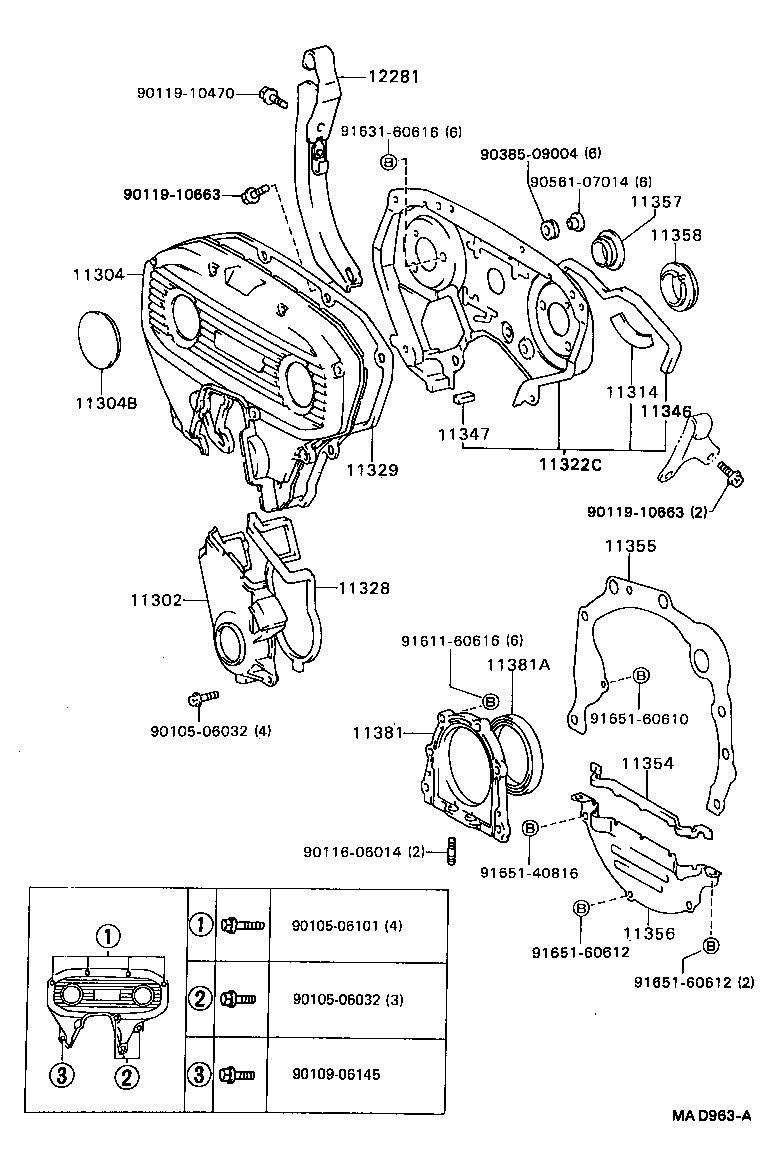

Click highlighted areas on diagram

diagram 11302 11304 11304B 11314 11322C 11328 11329 11346 11347 11354 11355 11356 11357 11358 11381 11381A 12281 9010506032 9010506032 9010506101 9010906145 9011606014 9011910470 9011910663 9011910663 9038509004 9056107014 9161160616 9163160616 9165140816 9165160610 9165160612 9165160612
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-62020

1VZFE,4VZFE..VZV3#

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11303-62020

1VZFE,4VZFE..VZV3#

 1
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01554

1VZFE,4VZFE..VZV3#

 2
11314 - GASKET, TIMING CHAIN NO.2 COVER
11319-62010

1VZFE..VZV3#

 1
11319-62020

1VZFE..VZV30,31

 1
11322C - COVER, TIMING BELT, NO.3
11304-62020

1VZFE..VZV3#

 1
11304-62021

1VZFE..VZV30,31

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-62020

1VZFE,4VZFE..VZV3#

 1
11329 - GASKET, TIMING GEAR REAR COVER
11329-62010

1VZFE,4VZFE..VZV3#

 1
11346 - GASKET, TIMING BELT COVER, NO.4
11346-62011

1VZFE..VZV30,31

 1
11346-62010

1VZFE..VZV3#

 1
11347 - GASKET, TIMING BELT COVER, NO.5
11347-62010

1VZFE,4VZFE..VZV3#

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-62020

1VZFE,4VZFE..VZV3#

 1
11355 - PLATE, REAR END
11355-62010

1VZFE,4VZFE..VZV3#

 1
11356 - PLATE, REAR END, NO.2
11356-62010

1VZFE,4VZFE..VZV3#

 1
11357 - GASKET, TIMING BELT COVER, NO.6
11357-62010

1VZFE,4VZFE..VZV3#

 1
11358 - GASKET,TIMING BELT COVER, NO.7
11358-62010

1VZFE,4VZFE..VZV3#

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-62010

1VZFE,4VZFE..VZV3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-92005

1VZFE,4VZFE..VZV3#

 1
12281 - HANGER, ENGINE, NO.1
12281-62012

1VZFE..VZV3#

 1
12281-62013

1VZFE..VZV30,31

 1
Common parts
90105-06032
90105-06101
90109-06145
90116-06014
90119-10470
90119-10663
90385-09004
90561-07014
91611-60616
91631-60616
91651-40816
91651-60610
91651-60612
