VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)CV30,VZV3#

Click highlighted areas on diagram

diagram 88431 88431 9009904345 9009904356 9151161020 9151161060
Part # Description Qty Price

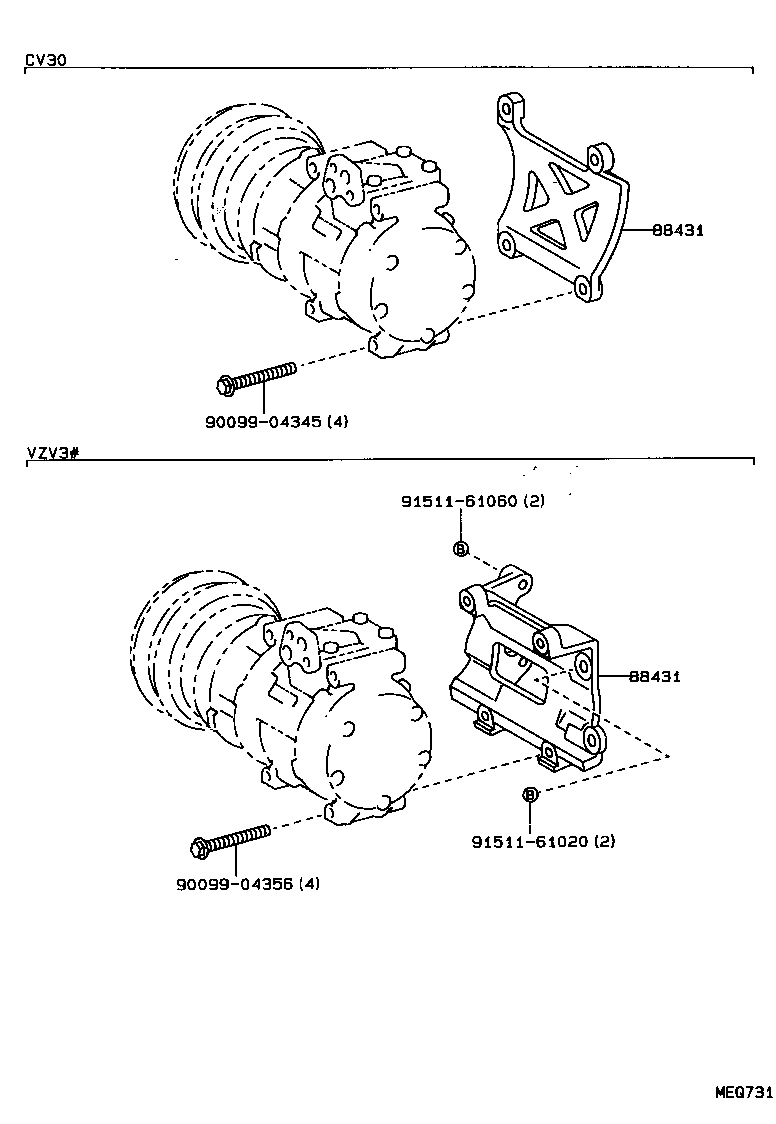

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-32020

VZV3#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-32020

VZV3#

 1
Common parts
90099-04345
90099-04356
91511-61020
91511-61060

(9007-9406)

Click highlighted areas on diagram

diagram 8271112200 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-32050

VZV3#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-32070

VZV3#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-32131

VZV3#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

SV3#,VZV3#

3PIECE SET

 1
90099-01555

SV3#,VZV3#

厚さ=0.5

 1
90099-01553

SV3#,VZV3#

厚さ=0.1

 1
90099-01554

SV3#,VZV3#

厚さ=0.3

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

SV3#,VZV3#

 1
88410 - CLUTCH ASSY, MAGNET
88410-32080

VZV3#

 1
Common parts
82711-12200
90099-04349
90099-07114
90099-07125
93319-15008
