VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914067 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

(9007-9206)ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX

Click highlighted areas on diagram

diagram 88453 88454A 88460 88467 88467 8846714070 8846714070 8846714070 8846730270 88467A 88467A 88471 88472 88550 88590 88596B 8868832330 8868832380 8868832390 88723B 9009120612 9009904431 9009904431 9009905164 9009932130 9011906142 9017906032 9017906032 9165640616 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32140

VZV3#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010

SV3#,VZV3#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32040

VZV3#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22040

SV3#,VZV3#

 1
Common parts
88467-14070
88467-30270
88688-32330
88688-32380
88688-32390
90091-20612
90099-04431
90099-05164
90099-32130
90119-06142
90179-06032
91656-40616
93385-16016

(9007-9206)VZV3#

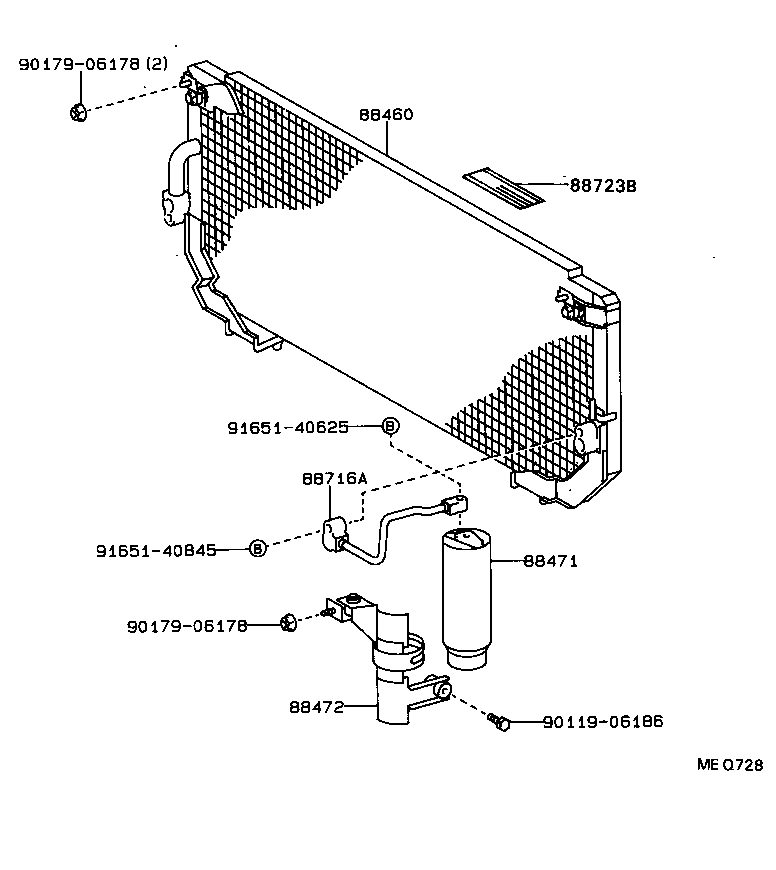

Click highlighted areas on diagram

diagram 88460 88471 88472 88716A 88723B 9011906186 9017906178 9017906178 9165140625 9165140845
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-32140

VZV3#

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010

SV3#,VZV3#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-32040

VZV3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-32380

SV3#,VZV3#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22040

SV3#,VZV3#

 1
Common parts
90119-06186
90179-06178
91651-40625
91651-40845

(9007-9206)VZV3#

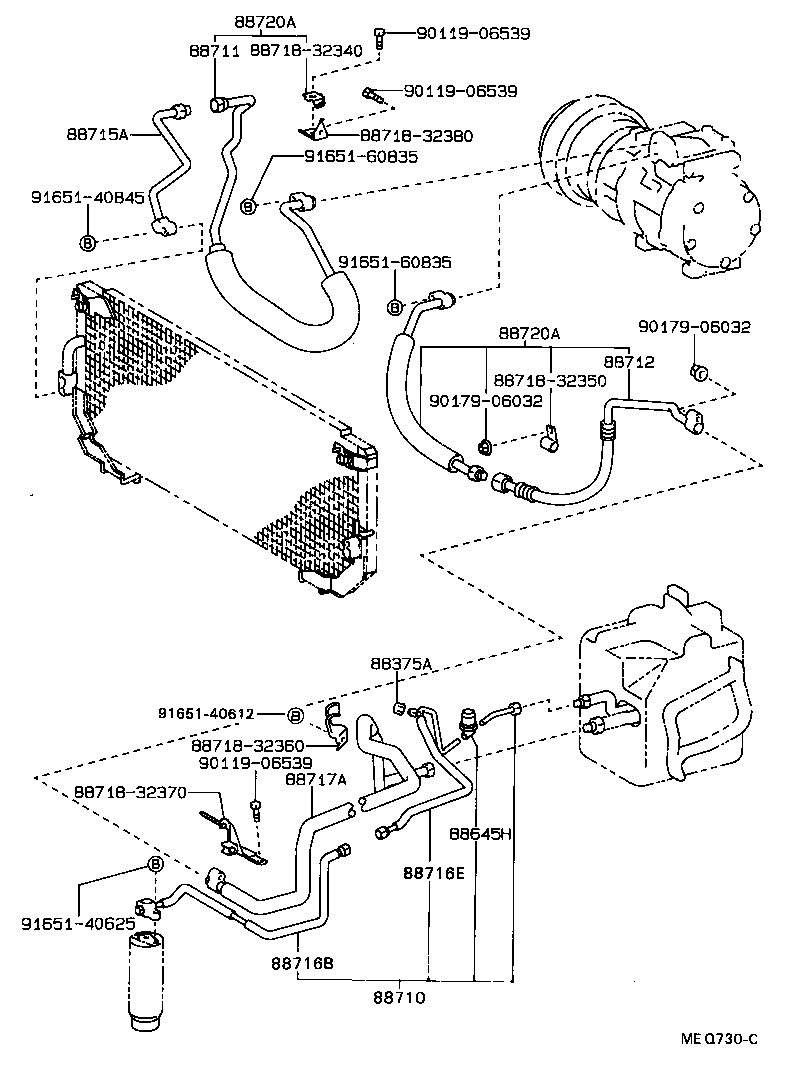

Click highlighted areas on diagram

diagram 88375A 88645H 88710 88711 88712 88715A 88716B 88716E 88717A 8871832340 8871832350 8871832360 8871832370 8871832380 88720A 88720A 9011906539 9011906539 9011906539 9017906032 9017906032 9165140612 9165140625 9165140845 9165160835 9165160835
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

VZV3#

 1
88645H - SWITCH, PRESSURE NO.1
88645-20040

VZV3#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-32090

SV3#,VZV3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-32090

VZV3#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-32010

VZV3#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-32450

VZV3#

RECEIVER SIDE

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-32390

VZV3#

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-32350

SV3#,VZV3#

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-32130

VZV3#

SUCTION

 1
88720-32120

VZV3#

DISCHARGE

 1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-32130

VZV3#

SUCTION

 1
88720-32120

VZV3#

DISCHARGE

 1
Common parts
88718-32340
88718-32350
88718-32360
88718-32370
88718-32380
90119-06539
90179-06032
91651-40612
91651-40625
91651-40845
91651-60835
