VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9406)VZV3# ; (9106-9406)SV32,33,35..HT..VX

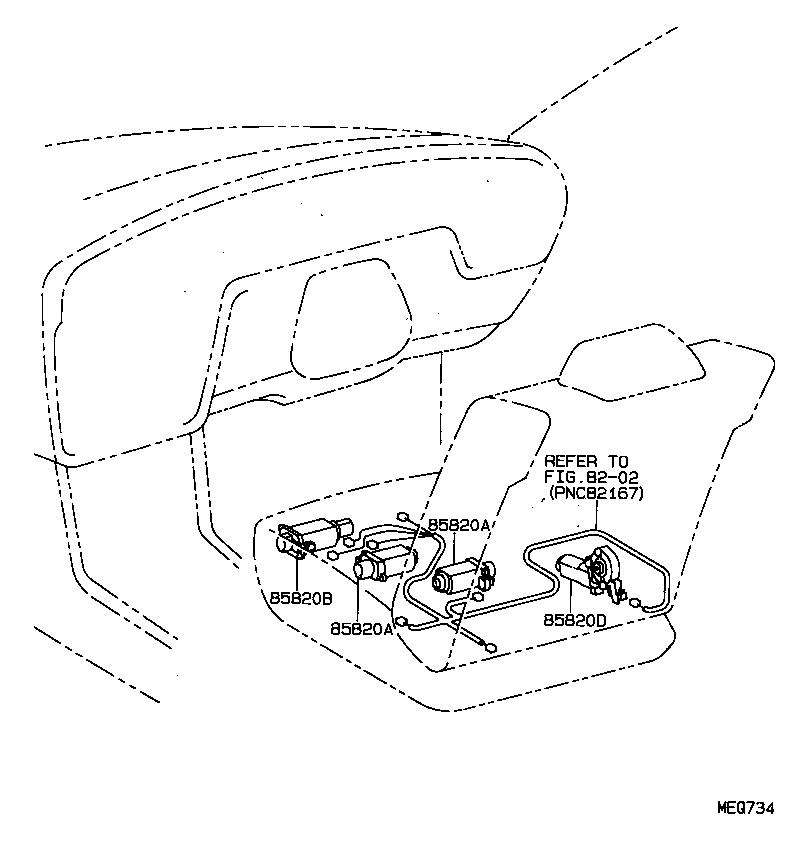

Click highlighted areas on diagram

diagram 8202 85820A 85820A 85820B 85820D
Part # Description Qty Price
85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)
85820-22030

VZV30,31

 2
85820A - MOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)
85820-22030

VZV30,31

 2
85820B - MOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)
85820-50090

VZV30,31

 1
85820D - MOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)
85820-32020

VZV30,31

 1
Linked diagrams
8202
