VZV30-ATMQK (1990)
Toyota Camry/Vista
Production
Jul 1990
-
Jun 1992
Engine
1VZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9007-9406)SV32,33,VZV3#..GT,PRO,VX,ZX

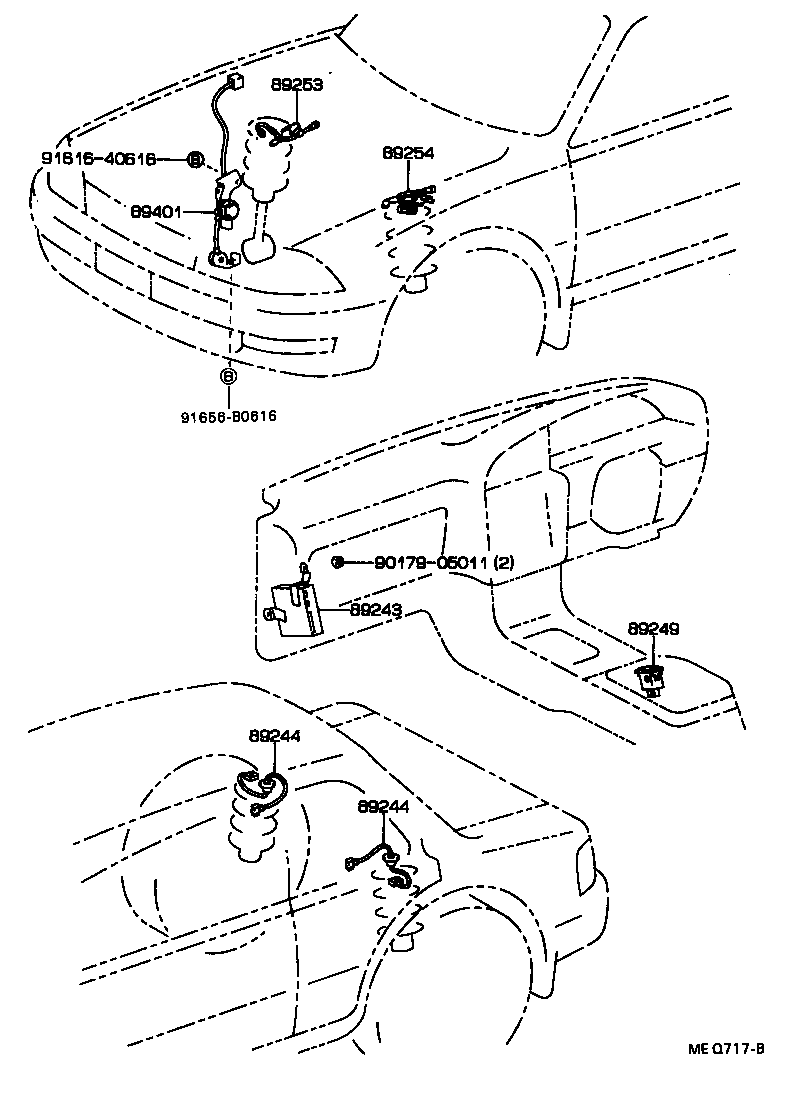

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89243 - COMPUTER, ABSORBER CONTROL | ||||
| 89243-32050 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-32010 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
2 | ||
| 89244 - WIRE, ABSORBER CONTROL, REAR | ||||
| 89244-32010 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
2 | ||
| 89249 - SWITCH, ABSORBER CONTROL | ||||
| 89249-32030 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 89253 - WIRE, ABSORBER CONTROL, FRONT RH | ||||
| 89253-32020 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 89254 - WIRE, ABSORBER CONTROL, FRONT LH | ||||
| 89254-32020 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 89401 - SENSOR SUB-ASSY, SUSPENSION STROKE, FRONT | ||||
| 89401-32010 |
SV32,33,VZV3#..GT,PRO,VX,ZX |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
| 91616-40616 | ||||
| 91656-B0616 | ||||
