VZV30-ATMQK (1990)
Toyota Camry/Vista
ILLUST NO. 1 OF 8(9007-9406)
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-32670 |
VZV30 ｱﾘ(*66) |
1 | ||
| 82111-32660 |
VZV30 |
1 | ||
| 82111-32661 |
VZV30 |
1 | ||
| 82111-32671 |
VZV30 ｱﾘ(*66) |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32040 |
CV30,SV3#,VZV3# NO.1 JUNCTION BLOCK |
1 | ||
| 82241-32060 |
SV32,33,35,VZV3# TEMS CHECK CONECTOR |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B730 |
CV30,SV3#,VZV3# |
1 | ||
| 82817-32840 |
CV30,SV3#,VZV3# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32730 |
CV30,SV3#,VZV3# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-2B730 |
CV30,SV3#,VZV3# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-32760 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91651-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

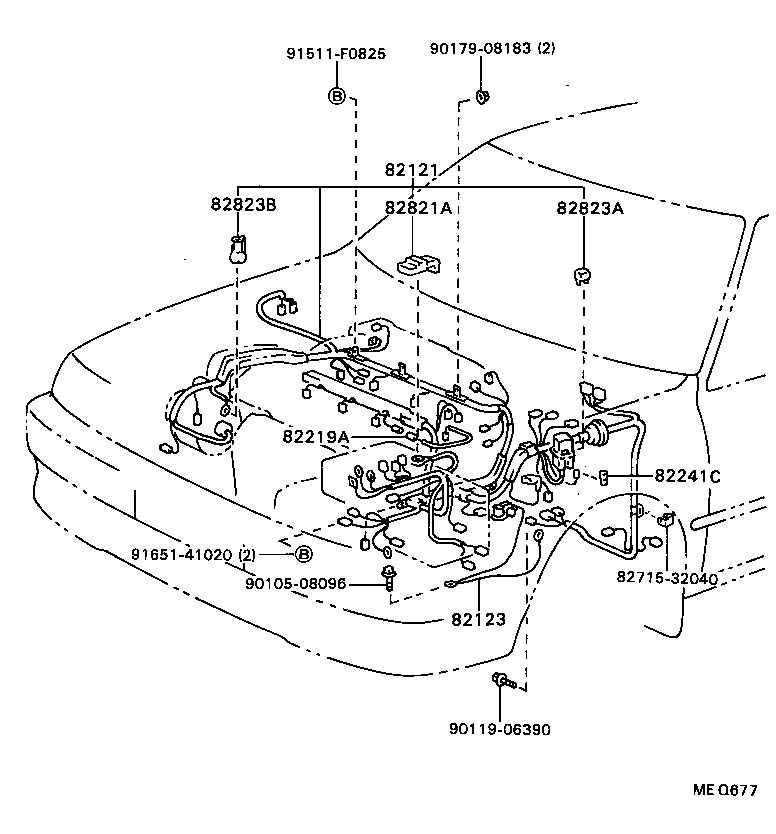

ILLUST NO. 2 OF 8(9007-9206)VZV30,31
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3H540 |
VZV3#..5F |
1 | ||
| 82121-3H541 |
VZV30,31..5F |
1 | ||
| 82121-3H542 |
VZV30,31..5F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-32130 |
VZV30,31..5F |
1 | ||
| 82123-32140 |
VZV30,31..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-32060 |
VZV30,31 |
1 | ||
| 82219-32010 |
VZV30,31 |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-32040 |
CV30,SV3#,VZV3# NO.1 JUNCTION BLOCK |
1 | ||
| 82241-32060 |
SV32,33,35,VZV3# TEMS CHECK CONECTOR |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-32110 |
CV30,SV3#,VZV3# YAZAKI |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-50020 |
CV30,SV3#,VZV3# |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-22060 |
VZV30,31 |
1 | ||
| Common parts | ||||
| 82715-32040 | ||||
| 90105-08096 | ||||
| 90119-06390 | ||||
| 90179-08183 | ||||
| 91511-F0825 | ||||
| 91651-41020 | ||||
ILLUST NO. 3 OF 8(9007-9406)
ENGINE WIRE CLAMPS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-22270 | ||||
| 82711-24420 | ||||
| 82711-32780 | ||||
| 82711-82650 | ||||
| 82715-20010 | ||||
| 82715-20110 | ||||
| 82715-32060 | ||||
| 82715-32070 | ||||
| 82715-32080 | ||||
| 82715-32090 | ||||
| 82715-32100 | ||||
| 82715-32120 | ||||
| 82715-32170 | ||||
| 82715-33060 | ||||
| 83715-32012 | ||||
| 90119-06120 | ||||
| 90119-06423 | ||||
| 90159-60125 | ||||
| 90461-08066 | ||||
| 91511-60610 | ||||
| 91621-40610 | ||||
ILLUST NO. 4 OF 8(9007-9406)
COWL,INSTRUMENT & CONSOLE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-3P250 |
VZV3# |
1 | ||
| 82131-3P260 |
VZV3# ｱﾘ(*66) |
1 | ||
| 82131-3P251 |
VZV3# |
1 | ||
| 82131-3P261 |
VZV3# ｱﾘ(*66) |
1 | ||
| 82131-3P252 |
VZV30,31 |
1 | ||
| 82131-3P262 |
VZV30,31 ｱﾘ(*66) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-32570 |
CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-32590 |
SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82141-32550 |
CV30,SV3#,VZV3#..5F..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 82141-32571 |
CV30,SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82141-32551 |
CV30,SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX) |
1 | ||
| 82141-32591 |
SV3#,VZV30,31..5F..(GT,PRO,VR,VX,ZE,ZX) ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-32060 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(*AF ﾂｷ 1DIN ﾗｼﾞｵ) |
1 | ||
| 82166-32060 |
SV32,33,35,VZV3#..GT,PRO,VX,ZX |
1 | ||
| 82166-32070 |
CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(*AF,CD ﾌﾟﾚ-ﾔ ﾂｷ 2DIN ﾗｼﾞｵ) |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4 |
1 | ||
| 82345-12030 |
CV30,SV3#,VZV3# COWL,NO.1 |
1 | ||
| 82345-20040 |
SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2 |
2 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4 |
1 | ||
| 82345-12030 |
CV30,SV3#,VZV3# COWL,NO.1 |
1 | ||
| 82345-20040 |
SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2 |
2 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) OR ｱﾘ(*WDL),INPANE WIRE,NO.4 |
1 | ||
| 82345-12030 |
CV30,SV3#,VZV3# COWL,NO.1 |
1 | ||
| 82345-20040 |
SV32,33..GT,VX,ZX;SV32,33..4FC..(LUM,VE);SV30,35,VZV3#..LUM,PRO,VE,VR,VX,ZE,ZX COWL,NO.2 |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06032 | ||||
| 91651-40620 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 5 OF 8(9007-9406)
DOOR & FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-32850 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｳﾃｷｼﾞﾖｷﾖ ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 82151-32830 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-32750 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82152-32770 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｳﾃｷｼﾞﾖｷﾖ ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 82152-32740 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-32210 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-32160 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-32510 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E ﾀｲﾌﾟ |
1 | ||
| 82171-32530 |
VZV3# |
1 | ||
| 82171-32540 |
VZV3# ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-32510 |
CV30,SV3#,VZV30,31..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 82171-32520 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E ﾀｲﾌﾟ & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-32020 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82344-32030 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｳﾃｷｼﾞﾖｷﾖ ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-32030 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｳﾃｷｼﾞﾖｷﾖ ﾄﾞｱ ﾐﾗ-) |
1 | ||
| 82344-32020 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82521A - WIRE, VANITY LAMP | ||||
| 82521-32020 |
VZV3# |
2 | ||
| 82521A - WIRE, VANITY LAMP | ||||
| 82521-32020 |
VZV3# |
2 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 90119-06390 | ||||
| 90950-01060 | ||||
| 90950-01275 | ||||
ILLUST NO. 6 OF 8(9007-9406)
FLOOR & REAR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3H480 |
VZV30 ｱﾘ(*66) OR ｱﾘ(TEMS) |
1 | ||
| 82161-3H470 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄG OR ﾌﾟﾛﾐﾈﾝﾄG & ｱﾘ(*66) OR ﾌﾟﾛﾐﾈﾝﾄG & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82161-3H460 |
CV30,SV30,32,33,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82161-3H520 |
CV30,SV30,32,33,VZV3#..HT..(GT,PRO,VR,VX) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ-) |
1 | ||
| 82161-3H461 |
CV30,SV30,32,33,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82161-3H481 |
CV30,SV30,VZV3#..HT..(PRO,VR) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-32620 |
CV30,SV30,32,35,VZV30..HT..(GT,PRO,VR,VX) ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱ ﾛﾂｸ) |
1 | ||
| 82162-32650 |
CV30,SV30,32,35,VZV30..HT..(GT,PRO,VR,VX) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-32050 |
VZV3# ﾌﾟﾛﾐﾈﾝﾄG |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-32400 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-32130 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-32130 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-32020 |
CV30,SV30,32,33..SED..(ETO,LUM,VE);CV30,SV30,32,33,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-32020 |
CV30,SV30,32,33..SED..(ETO,LUM,VE);CV30,SV30,32,33,VZV3#..HT..(GT,PRO,VR,VX) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-32810 |
CV30,SV3#,VZV3#..HT |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-2A420 | ||||
| 82715-32150 | ||||
| 90119-06230 | ||||
| 90119-06356 | ||||
| 90119-06390 | ||||

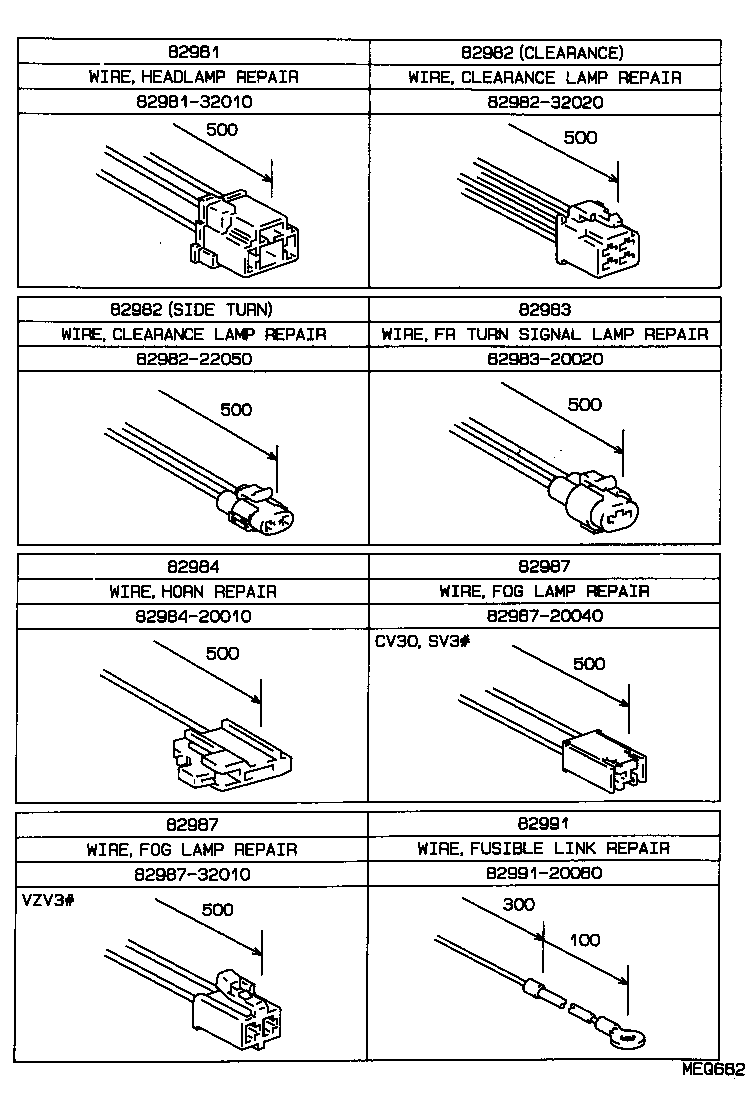

ILLUST NO. 7 OF 8(9007- )
REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-32020 |
CV30,SV3#,VZV3# CLEARANCE |
1 | ||
| 82982-22050 |
CV30,SV3#,VZV3# SIDE TURN |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-32020 |
CV30,SV3#,VZV3# CLEARANCE |
1 | ||
| 82982-22050 |
CV30,SV3#,VZV3# SIDE TURN |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20020 |
CV30,SV3#,VZV3# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CV30,SV3#,VZV3# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-32010 |
VZV3# |
1 | ||
| 82987 - WIRE, FOG LAMP REPAIR | ||||
| 82987-32010 |
VZV3# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
CV30,SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 82981-32010 | ||||
| 82982-22050 | ||||
| 82982-32020 | ||||
| 82983-20020 | ||||
| 82984-20010 | ||||
| 82987-20040 | ||||
| 82987-32010 | ||||
| 82991-20080 | ||||

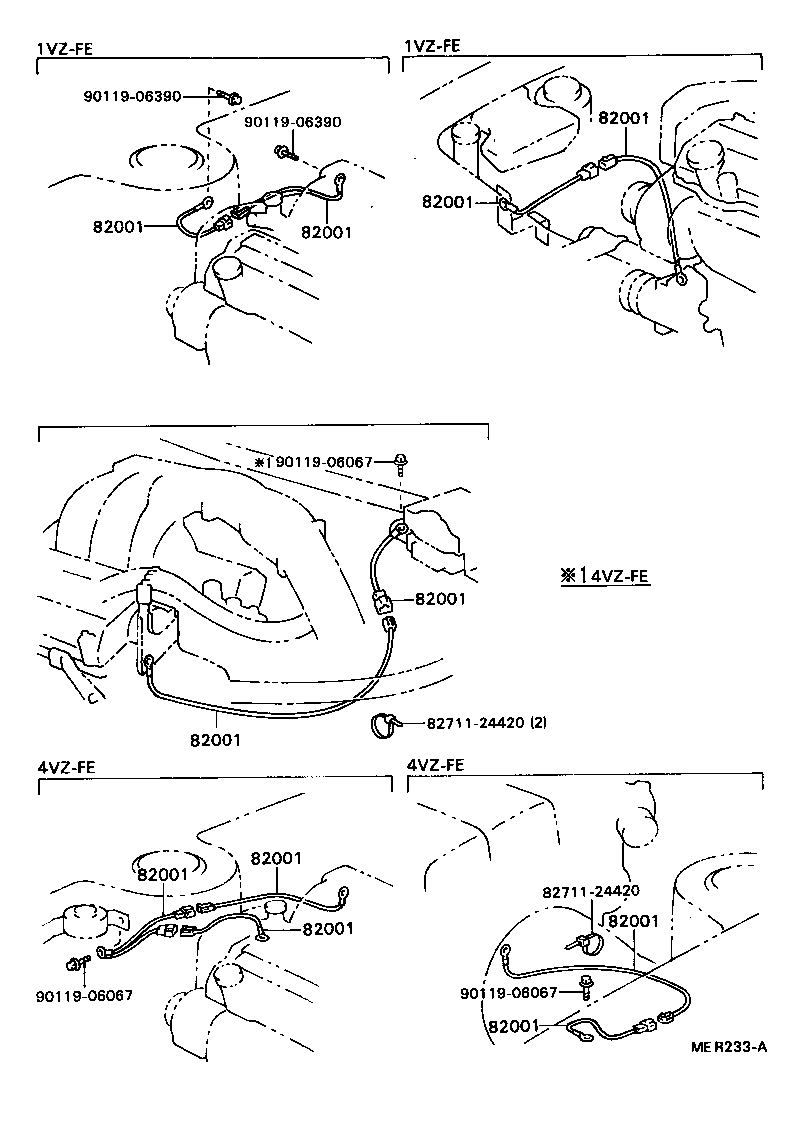

ILLUST NO. 8 OF 8(9007-9406)VZV3#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07337 |
VZV30,31 INTAKE MANIFOLD |
1 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
3 | ||
| 90980-07206 |
VZV30,31 IG COIL,A/C BKT,SUS |
4 | ||
| 90980-07335 |
VZV3# ENGINE,LH |
1 | ||
| 90980-07333 |
VZV3# A/C COMPRESSOR |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06067 | ||||
| 90119-06390 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
