VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)VZV3#

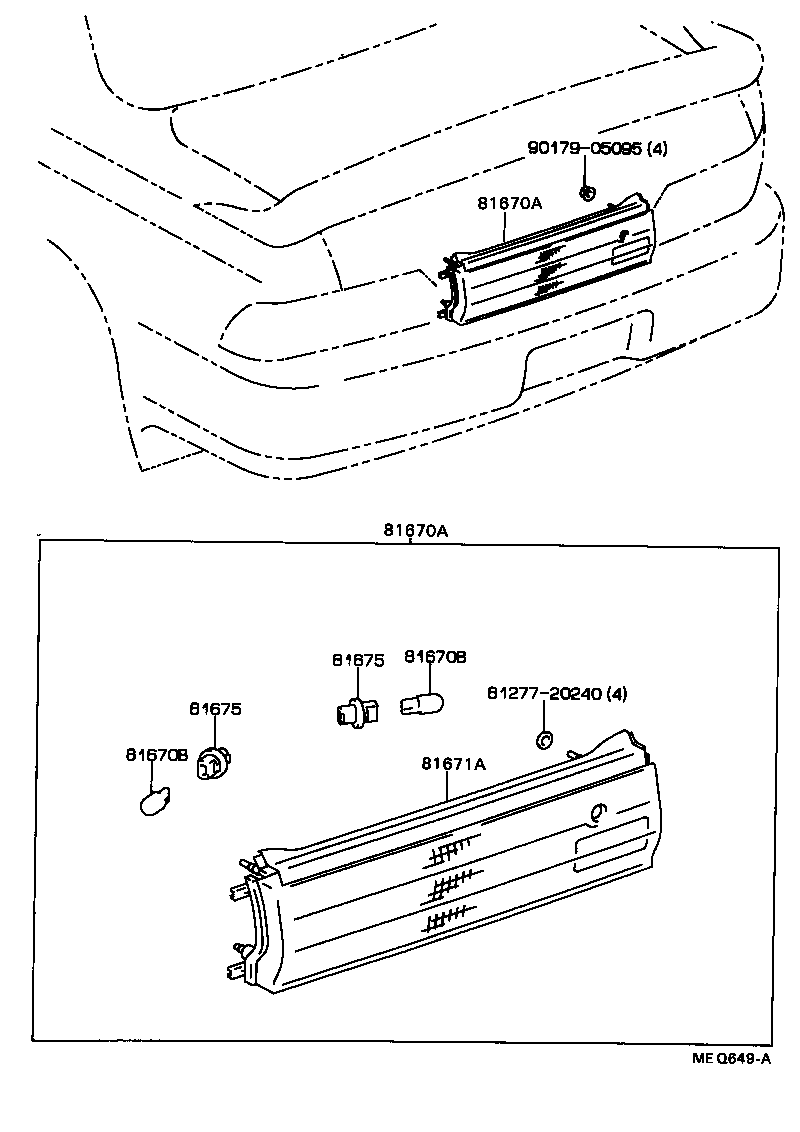

Click highlighted areas on diagram

diagram 8127720240 81670A 81670A 81670B 81670B 81671A 81675 81675 9017905095
Part # Description Qty Price
81670A - LAMP ASSY, BACK-UP
81670-32080

VZV3#

 1
81670A - LAMP ASSY, BACK-UP
81670-32080

VZV3#

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-13050

VZV3#

12V 21W

 2
81670B - BULB(FOR BACK-UP LAMP)
90981-13050

VZV3#

12V 21W

 2
81671A - LENS & BODY, BACK-UP LAMP
81671-32080

VZV3#

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
90075-99032

VZV3#

 2
81675 - SOCKET & WIRE, BACK-UP LAMP
90075-99032

VZV3#

 2
Common parts
81277-20240
90179-05095
