VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)VZV3#

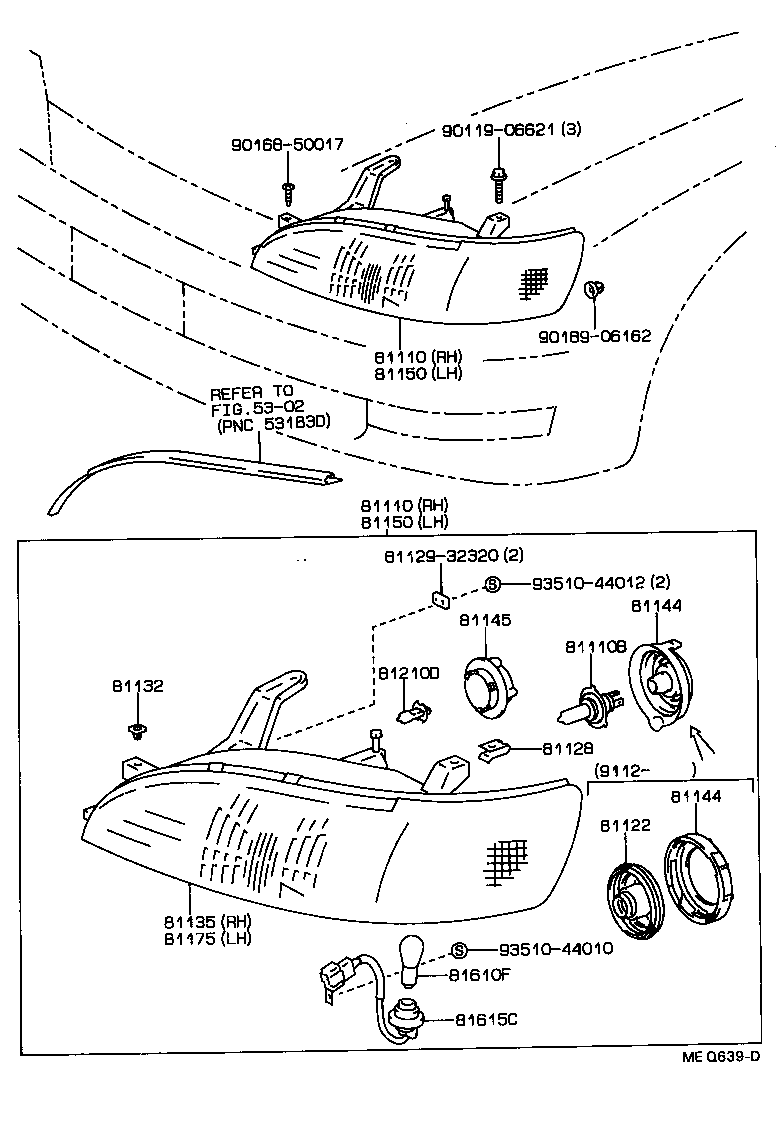

Click highlighted areas on diagram

diagram 5302 81110 81110 81110B 81122 81128 8112932320 81132 81135 81144 81144 81145 81150 81150 81175 81210D 81610F 81615C 9011906621 9016850017 9018906162 9351044010 9351044012
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-32310

VZV3#

 1
81110 - HEADLAMP ASSY, RH
81110-32310

VZV3#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

CV30,SV3#,VZV3#

12V 60/55W,*HAL *WH

 2
81122 - HOLDER, HEADLAMP
81122-32310

VZV3#

 2
81128 - NUT, HEADLAMP
81128-91606

CV30,SV3#,VZV3#..HT

 2
81132 - NUT, HEADLAMP SELF LOCKING
81119-16430

CV30,SV3#,VZV3#..HT

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-32310

VZV3#

 1
81130-32311

VZV3#

 1
81144 - COVER, HEADLAMP, NO.1
81139-23010

CV30,SV3#,VZV3#..HT

 2
81179-32310

VZV3#

 2
81144 - COVER, HEADLAMP, NO.1
81139-23010

CV30,SV3#,VZV3#..HT

 2
81179-32310

VZV3#

 2
81145 - COVER, HEADLAMP, NO.2
81139-32310

VZV3#

 2
81150 - HEADLAMP ASSY, LH
81150-32310

VZV3#

 1
81150 - HEADLAMP ASSY, LH
81150-32310

VZV3#

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-32311

VZV3#

 1
81170-32310

VZV3#

 1
81210D - BULB, FOG LAMP
90981-13018

VZV3#

12V 55W,ﾊﾛｹﾞﾝ

 2
81610F - BULB(FOR CLEARANCE LAMP)
90981-13036

CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX

12V 35/5W

 2
81615C - SOCKET & WIRE, CLEARANCE LAMP
81138-32310

CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX)

 2
Common parts
81129-32320
90119-06621
90168-50017
90189-06162
93510-44010
93510-44012
Linked diagrams
5302
