VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )VZV3#

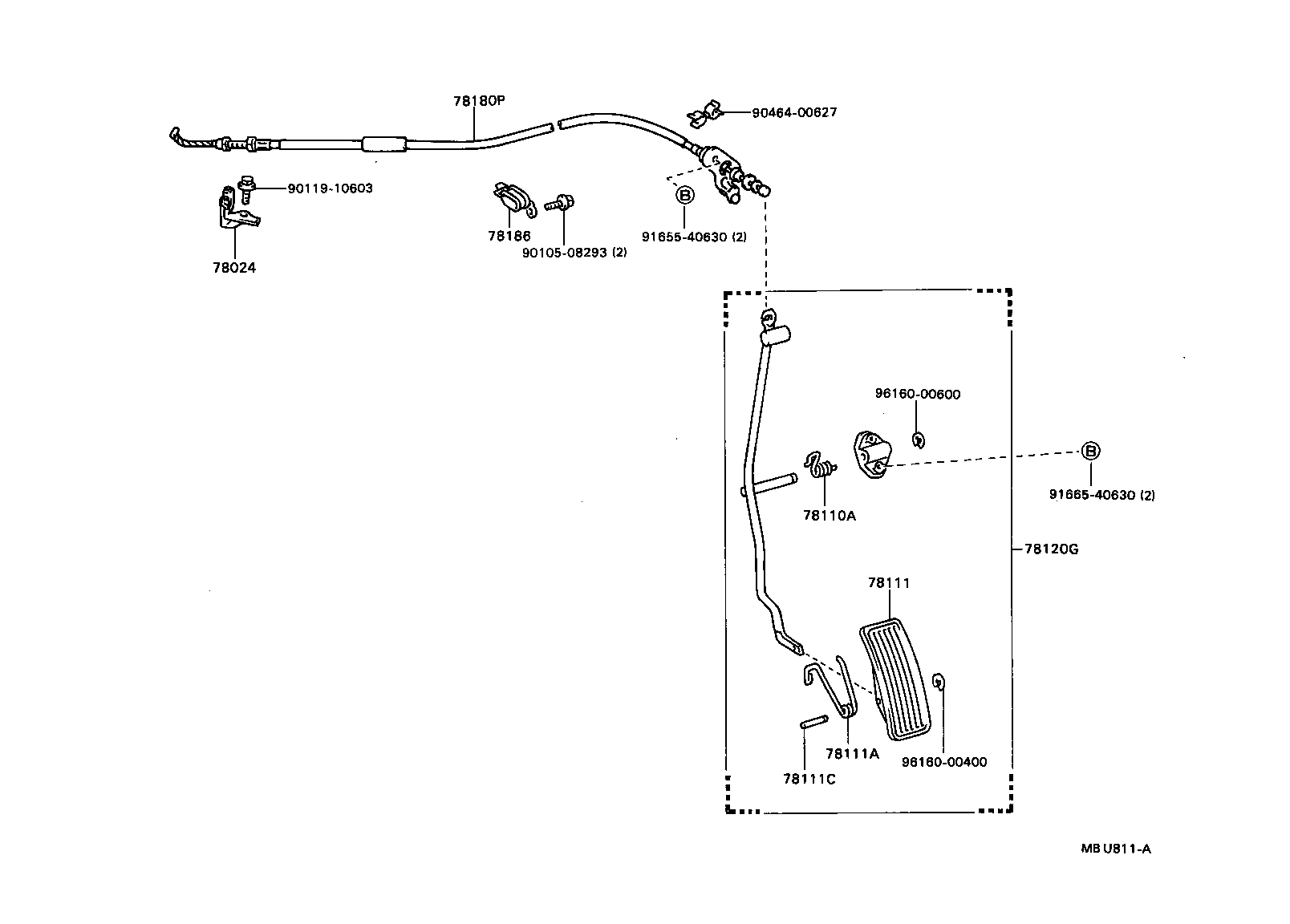

Click highlighted areas on diagram

diagram 78024 78110A 78111 78111A 78111C 78120G 78180P 78186 9010508293 9011910603 9046400627 9165540630 9166540630 9616000400 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-32110

VZV30,31

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-28004

CV30,SV3#,VZV30,31..5F

 1
78111 - PEDAL, ACCELERATOR
78111-12100

CV30,SV3#,VZV3#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-23119

CV30,SV3#,VZV3#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

CV30,SV3#,VZV3#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-32120

SV3#,VZV30,31..5F

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-32420

VZV3#

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-32050

VZV30,31

 1
Common parts
90105-08293
90119-10603
90464-00627
91655-40630
91665-40630
96160-00400
96160-00600
