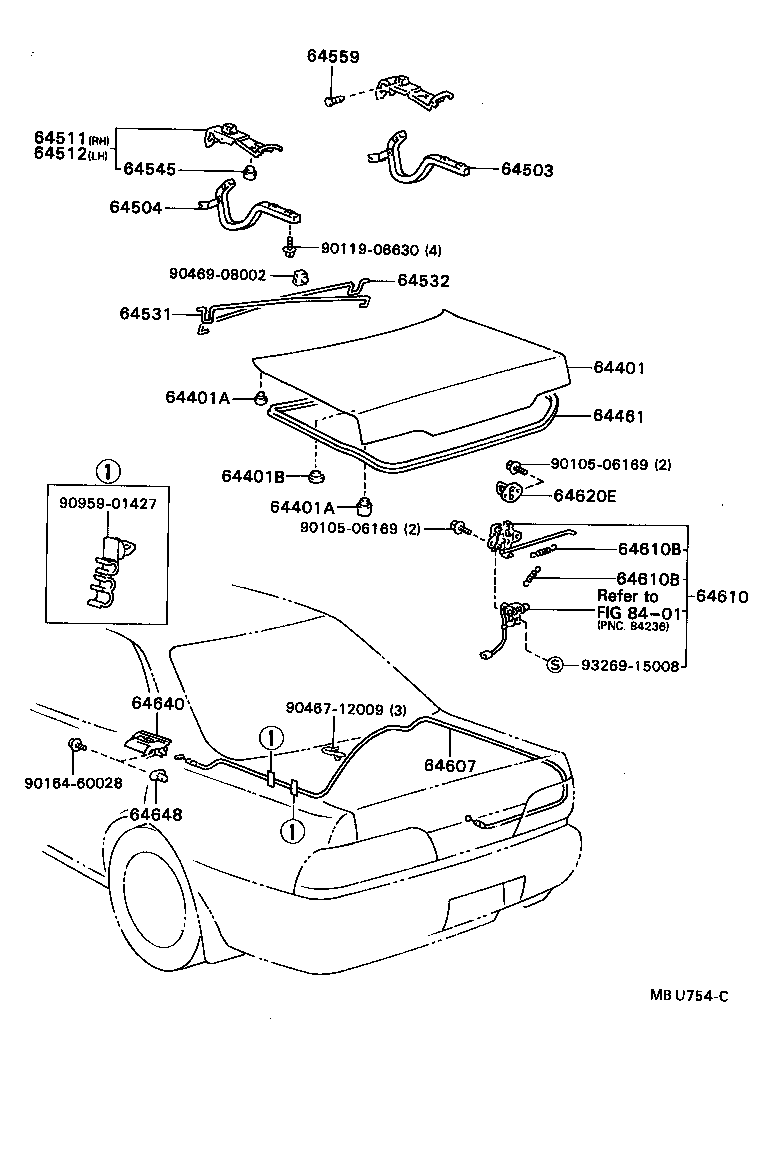

Toyota Camry/vista VZV30 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-32900	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64401-32901	CV30,SV3#,VZV3#..HT ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1994	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07046	CV30,SV3#,VZV3#..HT FRONT (OD=14)	07/1990 - 02/1992	2
90541-09082	CV30,SV3#,VZV3#..HT REAR	07/1990 - 06/1994	2
90541-06076	CV30,SV3#,VZV3#..HT FRONT (OD=10)	07/1990 - 06/1992	2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07046	CV30,SV3#,VZV3#..HT FRONT (OD=14)	07/1990 - 02/1992	2
90541-09082	CV30,SV3#,VZV3#..HT REAR	07/1990 - 06/1994	2
90541-06076	CV30,SV3#,VZV3#..HT FRONT (OD=10)	07/1990 - 06/1992	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-32090	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-32030	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64504-32020	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-32060	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-32060	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-32100	CV30,SV32,33,35,VZV3#..HT..(GT,PRO,VX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1994	1
64531-32110	CV30,SV32,33,35,VZV3#..HT..(GT,PRO,VX)	07/1990 - 06/1994	1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-32100	CV30,SV32,33,35,VZV3#..HT..(GT,PRO,VX) ｱﾘ(ﾘﾔｽﾎﾟｲﾗ)	07/1990 - 06/1994	1
64532-32110	CV30,SV32,33,35,VZV3#..HT..(GT,PRO,VX)	07/1990 - 06/1994	1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-10144	CV30,SV3#,VZV3#	07/1990 - 06/1994	2
64559 - PIN, LUGGAGE DOOR HINGE
64559-22020	CV30,SV3#,VZV3#	07/1990 - 06/1994	2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-32230	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-32090	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64610B - SPRING, TENSION(FOR LOCK)
90506-06011	CV30,SV3#,VZV3#..HT WD=0.55,CW=21.25	07/1990 - 06/1994	1
90506-05001	CV30,SV3#,VZV3#..HT WD=0.55,CW=17.5,WD=0.55,CW=17.5	07/1990 - 06/1994	1
64610B - SPRING, TENSION(FOR LOCK)
90506-05001	CV30,SV3#,VZV3#..HT WD=0.55,CW=17.5,WD=0.55,CW=17.5	07/1990 - 06/1994	1
90506-06011	CV30,SV3#,VZV3#..HT WD=0.55,CW=21.25	07/1990 - 06/1994	1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-32050	CV30,SV3#,VZV3#..HT	07/1990 - 06/1994	1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-3209006	CV30,SV3#,VZV3#..HT SABLE,TRIM4#	07/1990 - 06/1992	1
64640-3209003	CV30,SV3#,VZV3# MEDIUM GRAY,TRIM1#	07/1990 - 06/1992	1
64640-3209002	CV30,SV3#,VZV3# TAUPE,TRIM9#	07/1990 - 06/1992	1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010	CV30,SV3#,VZV3#	07/1990 - 06/1994	2
Common parts
90105-06169
90119-06630
90164-60028
90467-12009
90469-08002
90959-01427
93269-15008
Linked diagrams
8401

VZV30-ATMQK (1990)

(9007- )HT
