VZV30-ATMQK (1990)
Toyota Camry/Vista

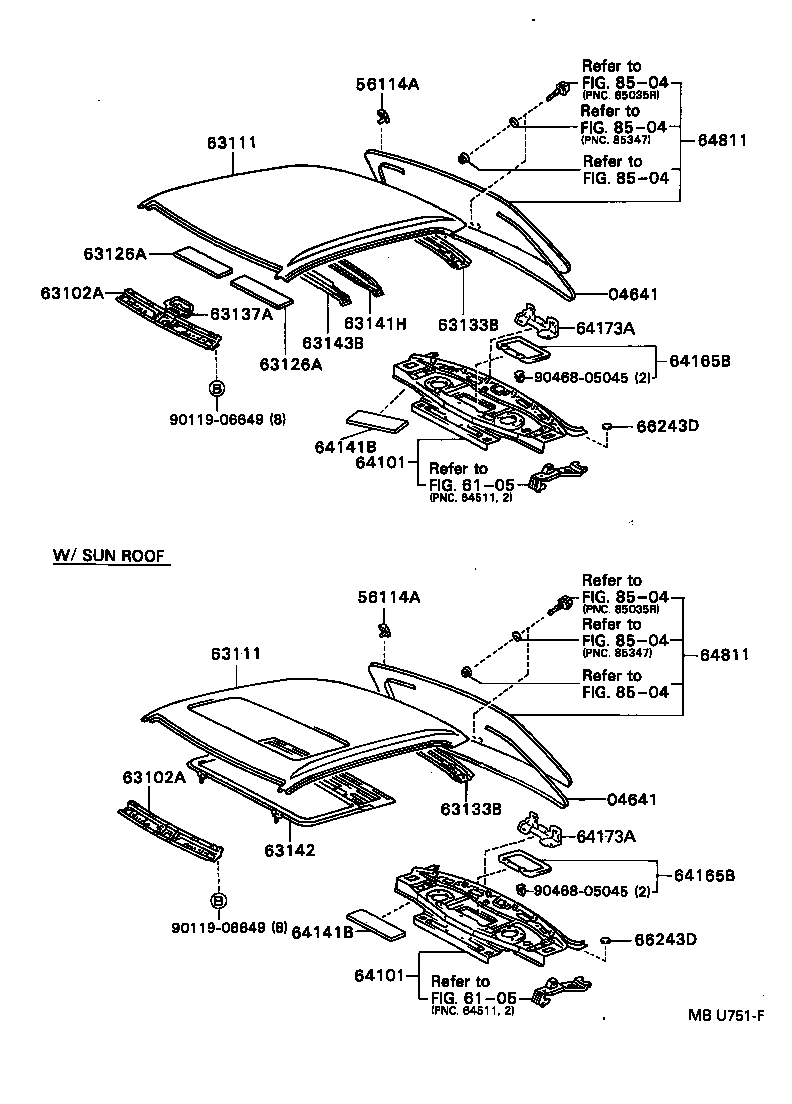

ILLUST NO. 1 OF 2(9007- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
CV30,SV3#,VZV3# |
1 | ||
| 04641 - DAM KIT, BACK WINDOW GLASS | ||||
| 04562-12010 |
CV30,SV3#,VZV3# |
1 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
CV30,SV3#,VZV3# |
2 | ||
| 56114A - RETAINER, BACK WINDOW GLASS | ||||
| 56114-20010 |
CV30,SV3#,VZV3# |
2 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32120 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-32120 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32150 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63111-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-32150 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) ｱﾘ(ｻﾝ ﾙ-ﾌ) |
1 | ||
| 63111-32140 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32020 |
CV30,SV3#,VZV3#..HT |
2 | ||
| 63126-32010 |
CV30,SV3#,VZV3# |
2 | ||
| 63126A - DAMPER, WINDSHIELD HEADER PANEL | ||||
| 63126-32020 |
CV30,SV3#,VZV3#..HT |
2 | ||
| 63126-32010 |
CV30,SV3#,VZV3# |
2 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63133B - FRAME, BACK WINDOW | ||||
| 63133-32050 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-32060 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-32070 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-32900 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-32040 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32170 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 64101 - PANEL SUB-ASSY, UPPER BACK | ||||
| 64101-32170 |
CV30,SV3#,VZV3#..HT |
1 | ||
| 64141B - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-32010 |
VZV3# |
2 | ||
| 64141B - SILENCER, BACK PANEL, NO.1 | ||||
| 64141-32010 |
VZV3# |
2 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-32020 |
VZV30 E TYPE |
1 | ||
| 64165-32020 |
CV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,XT,ZV |
1 | ||
| 64165B - COVER, UPPER BACK PANEL HOLE, NO.1 | ||||
| 64165-32020 |
VZV30 E TYPE |
1 | ||
| 64165-32020 |
CV30,SV3#,VZV30,31..ETO,LUM,PRO,VE,VL,XT,ZV |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32420 |
CV30,SV3#,VZV3#..HT *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 64811-32410 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-32400 |
CV30,SV3#,VZV3#..HT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-32430 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) *EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811 - GLASS, BACK WINDOW | ||||
| 64811-32420 |
CV30,SV3#,VZV3#..HT *EHTT,厚さ=3.5,ｸﾞﾚｰ |
1 | ||
| 64811-32410 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 64811-32400 |
CV30,SV3#,VZV3#..HT *EHTT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ |
1 | ||
| 64811-32430 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VR,VX) *EHTT,厚さ=3.5,ｸﾞﾚｰ,ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
CV30,SV3#,VZV3# |
2 | ||
| 66243D - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
CV30,SV3#,VZV3# |
2 | ||
| Common parts | ||||
| 90119-06649 | ||||
| 90468-05045 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 8504 | ||||

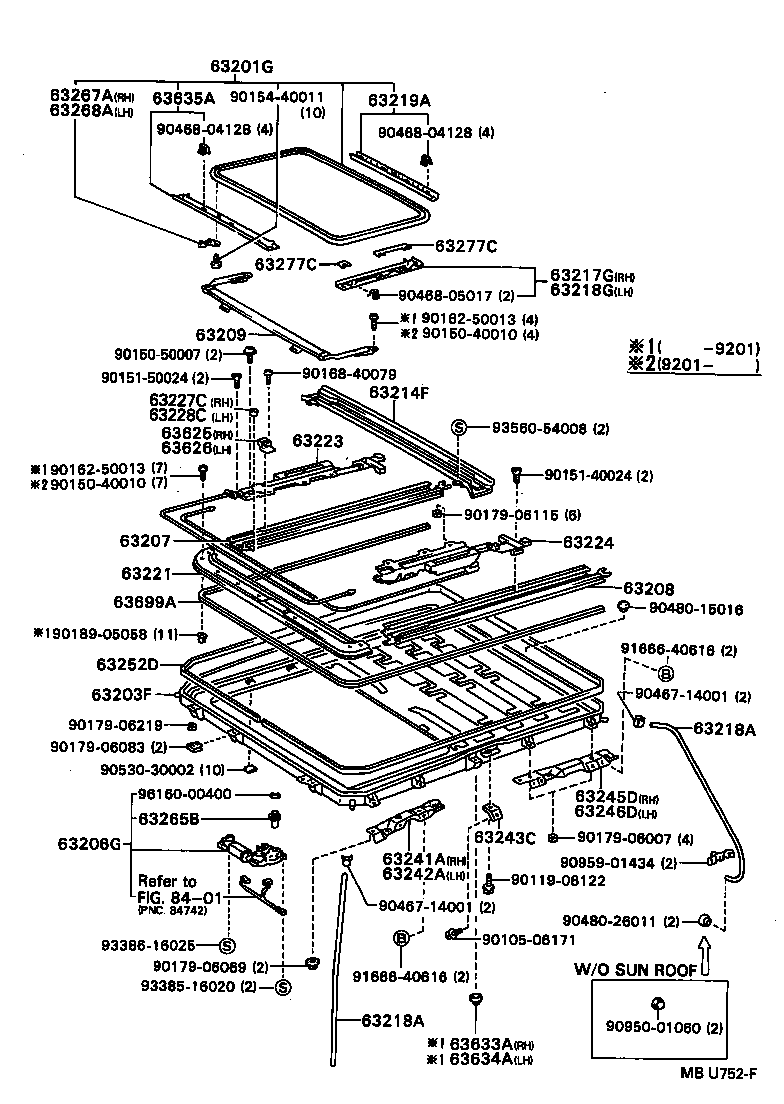

ILLUST NO. 2 OF 2(9007- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-3205006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) *SERT,厚さ=4.0,ﾌﾞﾛﾝｽﾞ,SABLE,TRIM4# |
1 | ||
| 63201-3206003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX *SERT,厚さ=4.0,ｸﾞﾚｰ,MEDIUM GRAY,TRIM1# |
1 | ||
| 63201-3206002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX *SERT,厚さ=4.0,ｸﾞﾚｰ,TAUPE,TRIM9# |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-32070 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-32023 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 63260-32021 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63260-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-32040 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3203002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 63217-3203003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 63217-3203006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) SABLE,TRIM4# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32100 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 長さ=1340 |
4 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-32100 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 長さ=1340 |
4 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-3203002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 63218-3203006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) SABLE,TRIM4# |
1 | ||
| 63218-3203003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-3203006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) SABLE,TRIM4# |
1 | ||
| 63219-3203002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 63219-3203003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63227C - STOPPER, SLIDING ROOF SUNSHADE, FRONT RH | ||||
| 63227-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63228C - STOPPER, SLIDING ROOF SUNSHADE, FRONT LH | ||||
| 63228-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-32020 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-32020 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
2 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-32010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-32010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-32020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=1.0,T=1.0,124 X 30 |
1 | ||
| 63277-20040 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=2.0,T=2.0,28 X 30 |
1 | ||
| 63277-20030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=1.0,T=1.0,28 X 30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=1.0,T=1.0,124 X 30 |
1 | ||
| 63277-20040 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=2.0,T=2.0,28 X 30 |
1 | ||
| 63277-20030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX 厚さ=1.0,T=1.0,28 X 30 |
1 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-20010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-20010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63633A - BUSH, SLIDING ROOF HOUSING, NO.1 | ||||
| 63633-50010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63634A - BUSH, SLIDING ROOF HOUSING, NO.2 | ||||
| 63634-50010 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-3203002 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX TAUPE,TRIM9# |
1 | ||
| 63635-3203003 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX MEDIUM GRAY,TRIM1# |
1 | ||
| 63635-3203006 |
CV30,SV3#,VZV3#..HT..(GT,PRO,VE,VR,VX) SABLE,TRIM4# |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-32030 |
CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
1 | ||
| Common parts | ||||
| 90105-06171 | ||||
| 90119-06122 | ||||
| 90150-40010 | ||||
| 90150-50007 | ||||
| 90151-40024 | ||||
| 90151-50024 | ||||
| 90154-40011 | ||||
| 90162-50013 | ||||
| 90168-40079 | ||||
| 90179-06007 | ||||
| 90179-06069 | ||||
| 90179-06083 | ||||
| 90179-06115 | ||||
| 90179-06219 | ||||
| 90189-05058 | ||||
| 90467-14001 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-15016 | ||||
| 90480-26011 | ||||
| 90530-30002 | ||||
| 90950-01060 | ||||
| 90959-01434 | ||||
| 91666-40616 | ||||
| 93385-16020 | ||||
| 93386-16025 | ||||
| 93560-54008 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 8401 | ||||
