VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007-9206)VZV3#

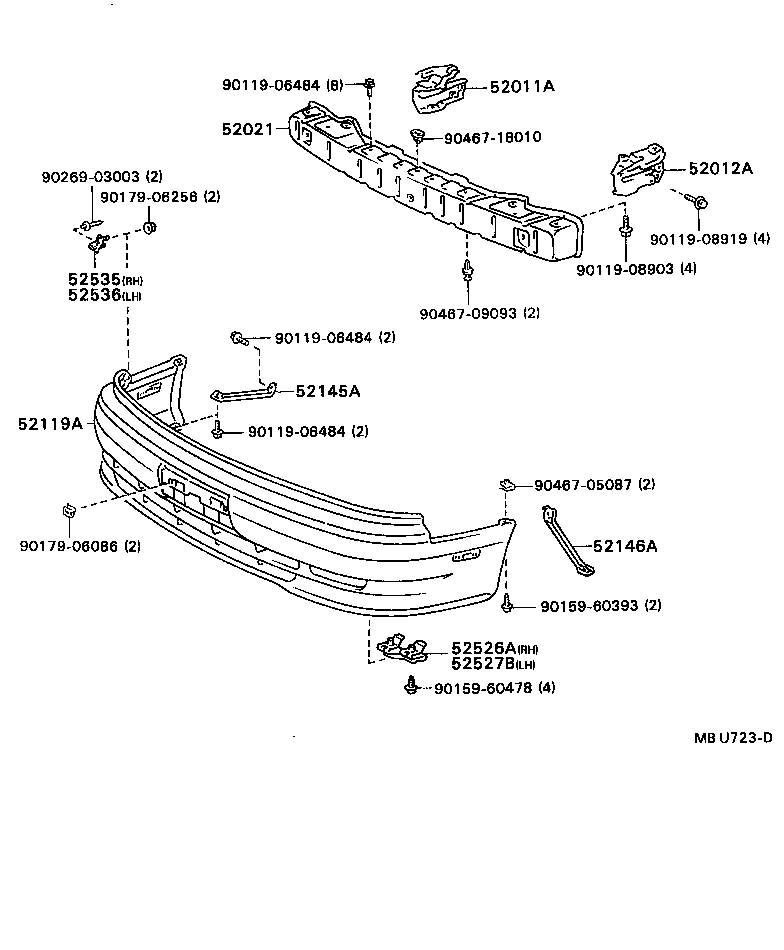

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52119A 52145A 52146A 52526A 52527B 52535 52536 9011906484 9011906484 9011906484 9011908903 9011908919 9015960393 9015960478 9017906086 9017906256 9026903003 9046705087 9046709093 9046718010
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-32110

VZV3#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-32090

VZV3#

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-32130

CV30,SV3#,VZV3#

 1
52119A - COVER, FRONT BUMPER
52119-3237002

VZV3#

RED MICA M,3J9

 1
52119-3237008

VZV3#

SUPER WHITE 2,040

 1
52119-3237023

VZV3#

DARK BLUEISH GRAY M,191

 1
52119-3239008

VZV3#

GRACIOUS PEARL TONNI,25R

 1
52119-3239003

VZV3#

DRESSY NIGHT TONNING,26R

 1
52119-3237003

VZV3#

AMETHYST SILVER M,920

 1
52119-3237013

VZV3#

BLUEISH GRAY ARGEN M,187

 1
52119-3237007

VZV3#

GRAYISH GREEN M,6K6

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-32040

CV30,SV3#,VZV3#..HT

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-32050

CV30,SV3#,VZV3#..HT

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-32080

CV30,SV3#,VZV3#

 1
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-32040

CV30,SV3#,VZV3#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-32060

CV30,SV3#,VZV3#..HT

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-32050

CV30,SV3#,VZV3#..HT

 1
Common parts
90119-06484
90119-08903
90119-08919
90159-60393
90159-60478
90179-06086
90179-06256
90269-03003
90467-05087
90467-09093
90467-18010
