VZV30-ATMQK (1990)
Toyota Camry/Vista

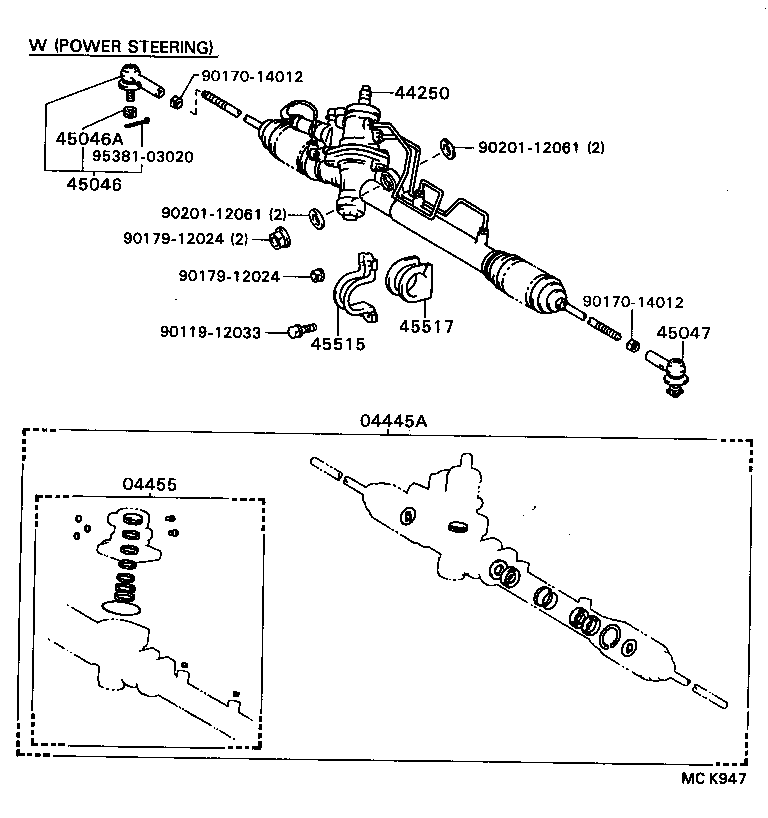

ILLUST NO. 1 OF 2(9007- )SV32..GT,LUM,VE ; (9007- )CV30,SV30,35,VZV30,32
ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32060 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04445-32050 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 04445-32050 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-32040 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455-32020 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455-32020 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32150 |
VZV30 |
1 | ||
| 44250-32220 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44250-32220 |
SV32,VZV30..GT,PRO |
1 | ||
| 44250-32220 |
VZV30 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
CV30,SV3#,VZV3# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV30,SV3#,VZV3# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
CV30,SV3#,VZV3# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32080 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32050 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 90201-12061 | ||||
| 95381-03020 | ||||
ILLUST NO. 1 OF 2(9007- )SV32,VZV30,32..PRO,VX,ZX
ｼﾔｿｸ ｶﾝﾉｳ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-32060 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04445-32050 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 04445-32050 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-32040 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455-32020 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 04455-32020 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-32150 |
VZV30 |
1 | ||
| 44250-32220 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44250-32220 |
SV32,VZV30..GT,PRO |
1 | ||
| 44250-32220 |
VZV30 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-19175 |
CV30,SV3#,VZV3# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
CV30,SV3#,VZV3# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-19175 |
CV30,SV3#,VZV3# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-32080 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-32050 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| Common parts | ||||
| 90119-12033 | ||||
| 90170-14012 | ||||
| 90179-12024 | ||||
| 90201-12061 | ||||
| 95381-03020 | ||||

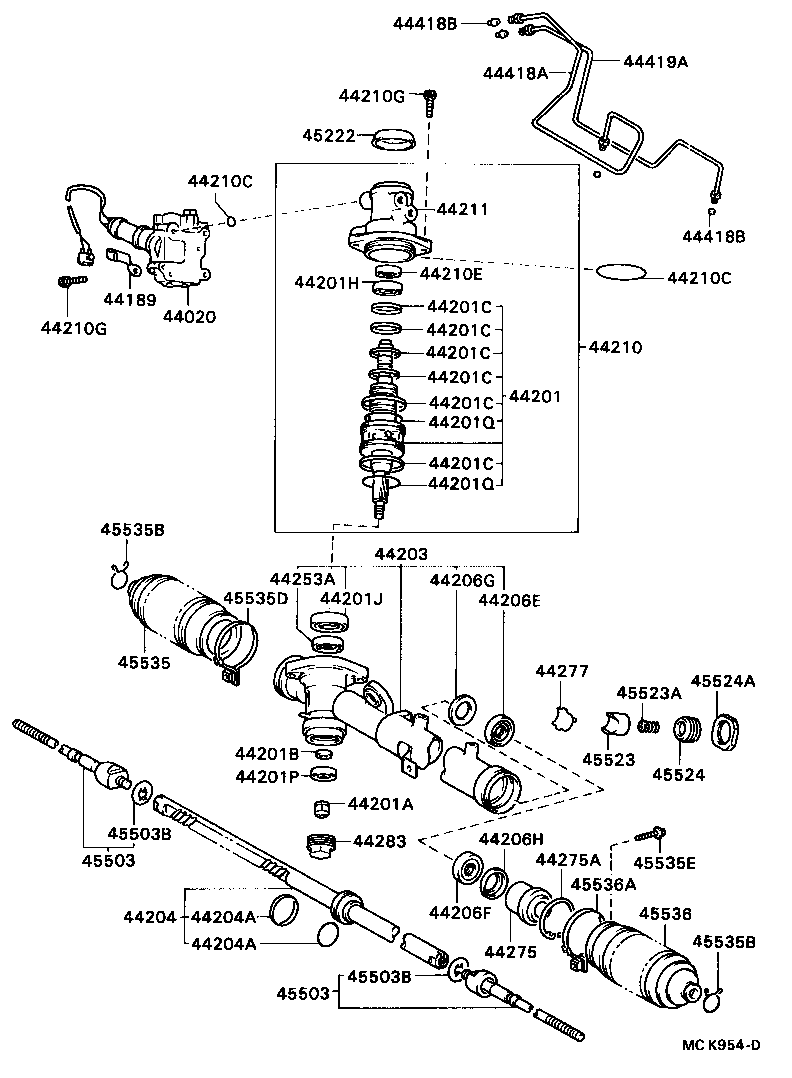

ILLUST NO. 2 OF 2(9007- )SV32,VZV30,32..PRO,VX,ZX
ｼﾔｿｸ ｶﾝﾉｳ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-32040 |
VZV30 |
1 | ||
| 44189 - CLAMP, SOLENOID VALVE TERMINAL | ||||
| 90949-01699 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44201-32090 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44201-32090 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44201-32050 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201-32030 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 94184-61200 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201B - SPACER(FOR POWER STEERING CONTROL VALVE) | ||||
| 90560-12030 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
CV30,SV3#,VZV3# |
1 | ||
| 44201J - BEARING(FOR POWER STEERING CONTROL VALVE CENTER) | ||||
| 90363-30054 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90363-13002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 44201Q - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-45002 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-32090 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44203-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44203-32090 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32040 |
SV32,VZV30,32..GT,PRO |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
CV30,SV30,32,35,VZV30,32 内側 |
1 | ||
| 90562-40002 |
CV30,SV30,32,35,VZV30,32 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
CV30,SV30,32,35,VZV30,32 内側 |
1 | ||
| 90562-40002 |
CV30,SV30,32,35,VZV30,32 外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25013 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25011 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32070 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32140 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32140 |
VZV30 |
1 | ||
| 44210-32050 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=57.5 |
1 | ||
| 96711-24060 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90301-11009 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=11.8 |
3 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=57.5 |
1 | ||
| 96711-24060 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90301-11009 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=11.8 |
3 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
CV30,SV3#,VZV3# |
1 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
SV32,VZV30..PRO,VX,ZX |
5 | ||
| 44210G - BOLT(FOR POWER STEERING CONTROL VALVE) | ||||
| 90110-08012 |
SV32,VZV30..PRO,VX,ZX |
5 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20100 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44211-32050 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90310-28001 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-32020 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 45524-16010 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44283-12010 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 45524-16010 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32090 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418-32080 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418-32080 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV30,SV3#,VZV3# CYLINDER TUBE SIDE |
2 | ||
| 96390-71200 |
CV30,SV3#,VZV3# CONTROL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV30,SV3#,VZV3# CYLINDER TUBE SIDE |
2 | ||
| 96390-71200 |
CV30,SV3#,VZV3# CONTROL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32080 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44419-32090 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44419-32080 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32020 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 45222-32030 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29245 |
CV30,SV3#,VZV3# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29245 |
CV30,SV3#,VZV3# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
CV30,SV3#,VZV3# 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
CV30,SV3#,VZV3# 外径=37 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-24010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23023 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20050 |
CV30,SV3#,VZV3# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV30,SV3#,VZV3# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV30,SV3#,VZV3# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90949-01082 |
CV30,SV3#,VZV3# |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 93269-63020 |
CV30,SV3#,VZV3# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-32030 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-10709 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
ILLUST NO. 2 OF 2(9007- )SV32..GT,LUM,VE ; (9007- )CV30,SV30,35,VZV30,32
ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44201-32090 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44201-32090 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44201-32050 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44201-32030 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
4 | ||
| 90562-33005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=36.4 |
4 | ||
| 90562-50001 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),OD=52.4 |
2 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19002 |
CV30,SV3#,VZV3# |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90363-13002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-32090 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44203-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44203-32090 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-32040 |
SV32,VZV30,32..GT,PRO |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
CV30,SV30,32,35,VZV30,32 内側 |
1 | ||
| 90562-40002 |
CV30,SV30,32,35,VZV30,32 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-36004 |
CV30,SV30,32,35,VZV30,32 内側 |
1 | ||
| 90562-40002 |
CV30,SV30,32,35,VZV30,32 外側 |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25013 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-25011 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44206H - SPACER, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-26009 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-32100 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32070 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32140 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44210-32140 |
VZV30 |
1 | ||
| 44210-32050 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04006 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=4.2 |
1 | ||
| 90410-06002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=6.0 |
1 | ||
| 90410-04006 |
SV33,VZV30,31,33 ID=4.2 |
1 | ||
| 90410-06002 |
SV33,VZV30,31,33 ID=6.0 |
1 | ||
| 90410-04006 |
SV33;SV32,VZV30,31,33..GT,PRO ID=4.2 |
1 | ||
| 90410-06002 |
SV33;SV32,VZV30,31,33..GT,PRO ID=6.0 |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-57003 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=57.5 |
1 | ||
| 96711-24060 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90301-11009 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ),ID=11.8 |
3 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19006 |
CV30,SV3#,VZV3# |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20100 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44211-32050 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-30005 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 90310-28001 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-32020 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-53002 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 45524-16010 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44283-12010 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 45524-16010 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44283A - NUT(FOR RACK HOUSING CAP) | ||||
| 90179-36002 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-32090 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418-32080 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44418-32080 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV30,SV3#,VZV3# CYLINDER TUBE SIDE |
2 | ||
| 96390-71200 |
CV30,SV3#,VZV3# CONTROL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV30,SV3#,VZV3# CYLINDER TUBE SIDE |
2 | ||
| 96390-71200 |
CV30,SV3#,VZV3# CONTROL VALVE SIDE |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04003 |
CV30,SV3#,VZV3# CYLINDER TUBE SIDE |
2 | ||
| 96390-71200 |
CV30,SV3#,VZV3# CONTROL VALVE SIDE |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-32080 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44419-32090 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 44419-32080 |
SV35;CV30,SV30,32,VZV30..ETO,GT,LUM,PRO,VE,VL,VR,XT,ZE,ZV |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32020 |
SV32,VZV30..PRO,VX,ZX ｱﾘ(ｼﾔｿｸ ｶﾝﾉｳｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45222-32010 |
CV30,SV3#,VZV3# |
1 | ||
| 45222-32030 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E OR ｱﾘ(ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳ ｼｷ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29245 |
CV30,SV3#,VZV3# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29245 |
CV30,SV3#,VZV3# |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
CV30,SV3#,VZV3# 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
CV30,SV3#,VZV3# 外径=37 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-24010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23023 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-20050 |
CV30,SV3#,VZV3# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV30,SV3#,VZV3# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
CV30,SV3#,VZV3# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90949-01082 |
CV30,SV3#,VZV3# |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 93269-63020 |
CV30,SV3#,VZV3# |
2 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 93269-63020 |
CV30,SV3#,VZV3# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-32030 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90461-10709 |
CV30,SV30,32,35,VZV30,32 |
1 | ||
| Common parts | ||||
| 91611-61028 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
