VZV30-ATMQK (1990)
Toyota Camry/Vista
(9007- )VZV30,32
ｼﾔｿｸ ｶﾝﾉｳｼｷ

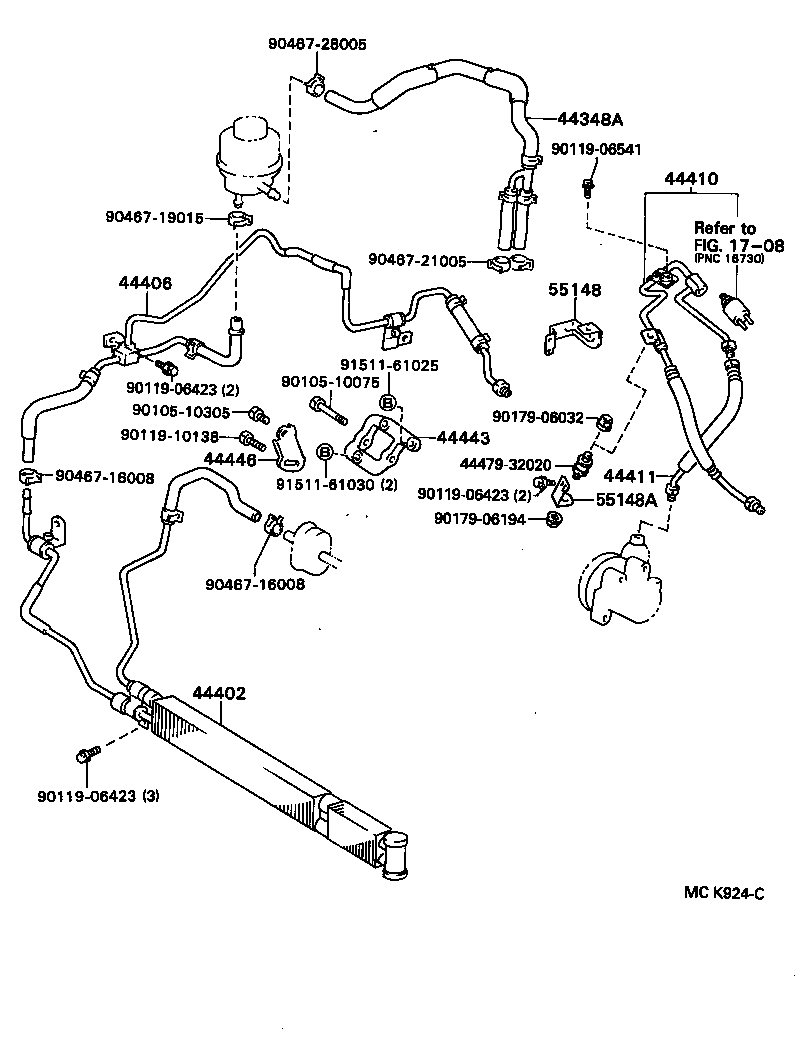

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12020 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32180 |
VZV3# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-32190 |
VZV3# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-32190 |
VZV30 |
1 | ||
| 44406-32220 |
VZV30 |
1 | ||
| 44406-32220 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-32420 |
VZV30 |
1 | ||
| 44410-32502 |
VZV30,31,33 ｴﾝｼﾞﾝｶｲﾃﾝｽｳ ｶﾝﾉｳｼｷ |
1 | ||
| 44410-32421 |
VZV30 ｼﾔｿｸ ｶﾝﾉｳｼｷ |
1 | ||
| 44410-32500 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-17002 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-32152 |
VZV3# |
1 | ||
| 44411-32150 |
VZV3# |
1 | ||
| 44411-32151 |
VZV3# |
1 | ||
| 44411-32151 |
VZV3# |
1 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-32010 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44413-32011 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-32030 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-16013 |
SV32,VZV30..PRO,VX,ZX |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
SV32,VZV30..PRO,VX,ZX |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
SV32,VZV30..PRO,VX,ZX |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32050 |
VZV3# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-32020 |
VZV3# |
1 | ||
| 55148 - BRACKET, POWER STEERING TUBE, N0.1 | ||||
| 55148-32021 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32020 |
SV3#,VZV3# |
1 | ||
| 55148A - BRACKET, POWER STEERING TUBE, N0.2 | ||||
| 55148-32031 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32030 |
SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 44479-32020 | ||||
| 90105-10075 | ||||
| 90105-10350 | ||||
| 90119-06198 | ||||
| 90119-06423 | ||||
| 90119-06541 | ||||
| 90119-10138 | ||||
| 90179-06032 | ||||
| 90179-06194 | ||||
| 90467-16008 | ||||
| 90467-19015 | ||||
| 90467-21005 | ||||
| 90467-28005 | ||||
| 91511-61025 | ||||
| 91511-61030 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1708 | ||||
(9007- )VZV3#
ｴﾝｼﾞﾝ ｶｲﾃﾝｽｳ ｶﾝﾉｳｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-32180 |
VZV3# |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-32190 |
VZV3# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-32190 |
VZV30 |
1 | ||
| 44406-32220 |
VZV30 |
1 | ||
| 44406-32220 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-32420 |
VZV30 |
1 | ||
| 44410-32502 |
VZV30,31,33 ｴﾝｼﾞﾝｶｲﾃﾝｽｳ ｶﾝﾉｳｼｷ |
1 | ||
| 44410-32421 |
VZV30 ｼﾔｿｸ ｶﾝﾉｳｼｷ |
1 | ||
| 44410-32500 |
VZV30 ﾌﾟﾛﾐﾈﾝﾄ E |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-32152 |
VZV3# |
1 | ||
| 44411-32150 |
VZV3# |
1 | ||
| 44411-32151 |
VZV3# |
1 | ||
| 44411-32151 |
VZV3# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-32050 |
VZV3# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-32020 |
VZV3# |
1 | ||
| 55148 - BRACKET, POWER STEERING TUBE, N0.1 | ||||
| 55148-32021 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32020 |
SV3#,VZV3# |
1 | ||
| 55148A - BRACKET, POWER STEERING TUBE, N0.2 | ||||
| 55148-32031 |
SV32,33,35,VZV3# |
1 | ||
| 55148-32030 |
SV3#,VZV3# |
1 | ||
| Common parts | ||||
| 44479-32020 | ||||
| 90105-10075 | ||||
| 90105-10305 | ||||
| 90119-06423 | ||||
| 90119-06541 | ||||
| 90119-10138 | ||||
| 90179-06032 | ||||
| 90179-06194 | ||||
| 90467-16008 | ||||
| 90467-19015 | ||||
| 90467-21005 | ||||
| 90467-28005 | ||||
| 91511-61025 | ||||
| 91511-61030 | ||||
| Linked diagrams | ||||
| 1708 | ||||
