VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )VZV30,31..5F

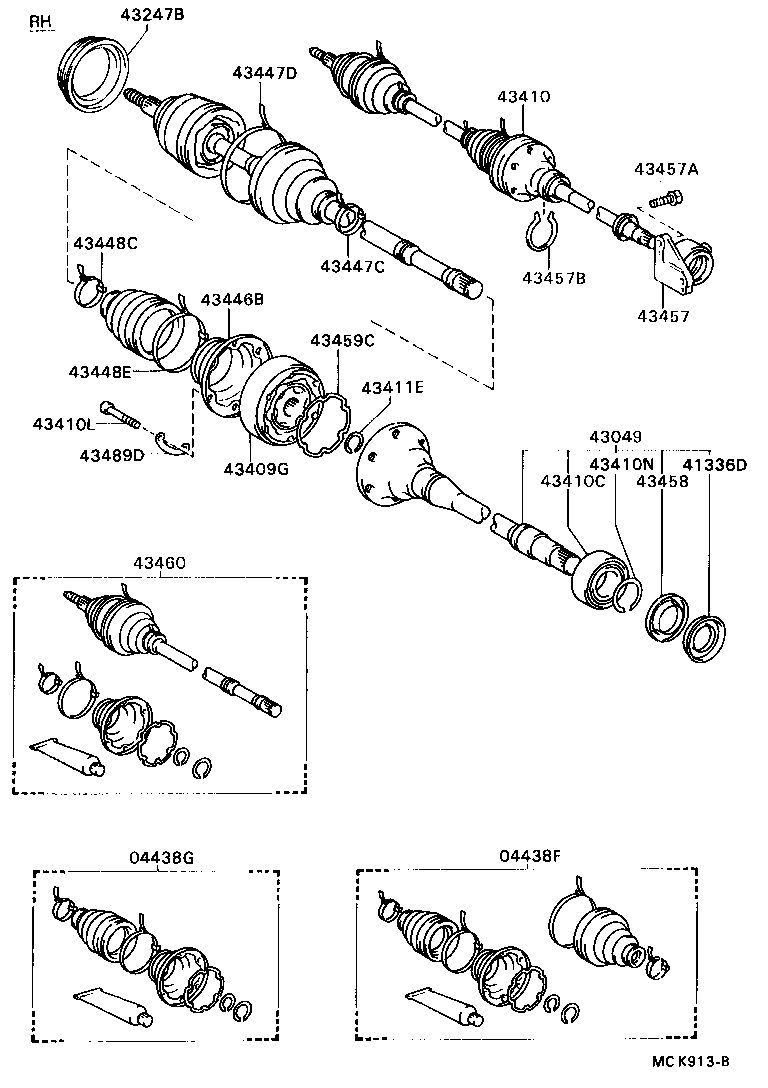

Click highlighted areas on diagram

RH

diagram 04438F 04438G 41336D 43049 43247B 43409G 43410 43410C 43410L 43410N 43411E 43446B 43447C 43447D 43448C 43448E 43457 43457A 43457B 43458 43459C 43460 43489D
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04437-17040

VZV30,31..5F

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-17030

VZV30,31..5F

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12020

VZV3#

 1
43049 - SHAFT SUB-ASSY, FRONT DRIVE FLANGE
43049-32030

VZV30,31..5F

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-32011

CV30,SV3#,VZV3#

 1
43247-12010

SV35;SV30,32,33,VZV3#..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*66)

 1
43247-12010

SV3#,VZV3#

ｱﾘ(*66)

 1
43409G - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH
43409-17010

VZV30,31..5F

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-32210

VZV3#..5F

 1
43410-32220

VZV3#..5F

ｱﾘ(*66)

 1
43410-32211

VZV30,31..5F

 1
43410-32221

VZV30,31..5F

ｱﾘ(*66)

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90369-41001

VZV3#

 1
43410L - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)
90110-10007

VZV30,31..5F

 6
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

VZV3#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-26028

VZV30,31..5F

 1
43446B - COVER, FRONT AXLE INBOARD JOINT, RH
43446-17010

VZV30,31..5F

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-14010

SV30,35;VZV30,31..5F;SV32,33..4FC..(ETO,LUM,VE,VX,ZX)

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90949-01339

VZV30,31..5F

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-14010

VZV30,31..5F

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01340

VZV30,31..5F

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-32040

VZV30,31..5F

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

VZV3#

*10−1.25PX19.8−8.3

 1
90105-10202

VZV3#

*10−1.25PX22−19.5

 2
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-78002

VZV3#

 1
43458 - COVER, FRONT DRIVE SHAFT DUST
43458-12010

VZV3#

 1
43459C - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH
43459-17010

VZV30,31..5F

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-19165

VZV3#..5F

 1
43470-39165

VZV3#..5F

ｱﾘ(*66)

 1
43470-19166

VZV30,31..5F

 1
43470-39166

VZV30,31..5F

ｱﾘ(*66)

 1
43489D - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH
43489-17010

VZV30,31..5F

 3

(9007- )VZV30,31..5F

Click highlighted areas on diagram

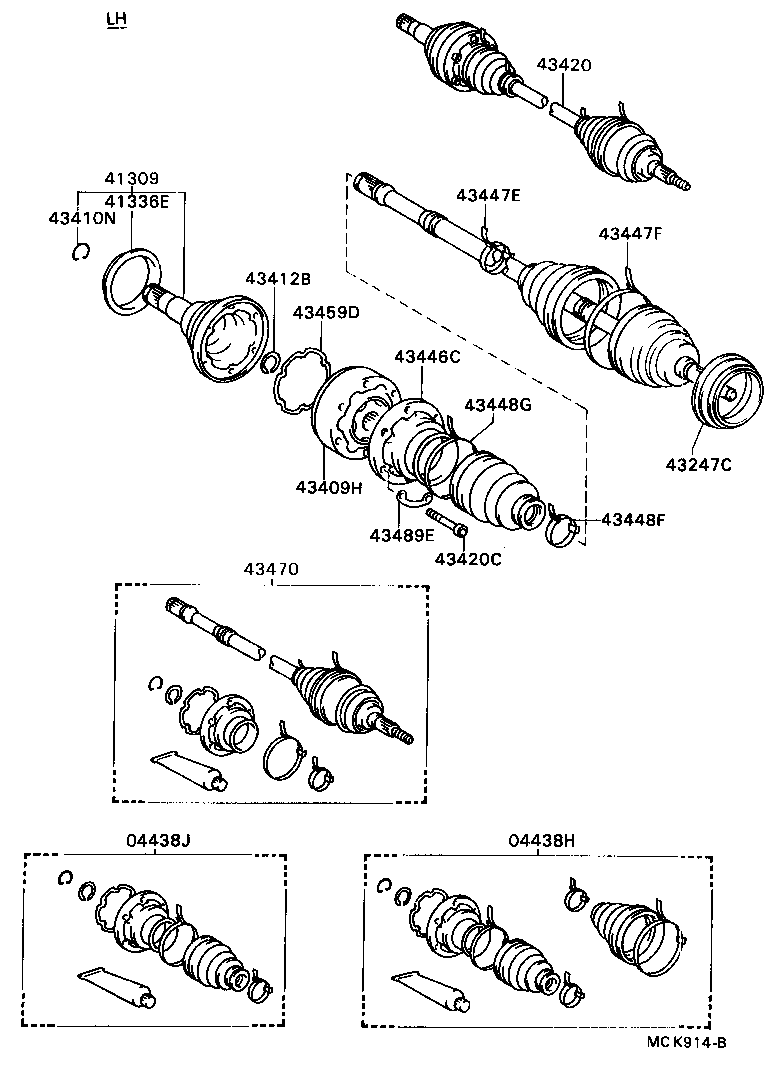

LH

diagram 04438H 04438J 41309 41336E 43247C 43409H 43410N 43412B 43420 43420C 43446C 43447E 43447F 43448F 43448G 43459D 43470 43489E
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04437-17040

VZV30,31..5F

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-17030

VZV30,31..5F

 1
41309 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309-17030

VZV30,31..5F

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-17020

VZV30,31..5F

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-32011

CV30,SV30,32,35,VZV30,32

 1
43247-12010

SV30,32,35,VZV30,32

ｱﾘ(*66)

 1
43247-12010

SV35;SV30,32,VZV30..GT,PRO,VR,VX,ZE,ZX

ｱﾘ(*66)

 1
43409H - JOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, LH
43409-17010

VZV30,31..5F

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-38015

VZV3#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-26028

VZV30,31..5F

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-32171

VZV30..5F

 1
43420-32180

VZV30..5F

ｱﾘ(*66)

 1
43420-32170

VZV30..5F

 1
43420-32181

VZV30..5F

ｱﾘ(*66)

 1
43420C - BOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT LH)
90110-10007

VZV30,31..5F

 6
43446C - COVER, FRONT AXLE INBOARD JOINT, LH
43446-17010

VZV30,31..5F

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-14010

SV30,35;VZV30,31..5F;SV32,33..4FC..(ETO,LUM,VE,VX,ZX)

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01339

VZV30,31..5F

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-14010

VZV30,31..5F

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01340

VZV30,31..5F

 1
43459D - GASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH
43459-17010

VZV30,31..5F

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-19165

VZV30..5F

 1
43470-39165

VZV30..5F

ｱﾘ(*66)

 1
43470-39166

VZV30..5F

ｱﾘ(*66)

 1
43470-19166

VZV30..5F

 1
43489E - WASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, LH
43489-17010

VZV30,31..5F

 3
