VZV30-ATMQK (1990)

Toyota Camry/Vista

Production Jul 1990 - Jun 1992
Engine 1VZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9007- )VZV30,31..5F

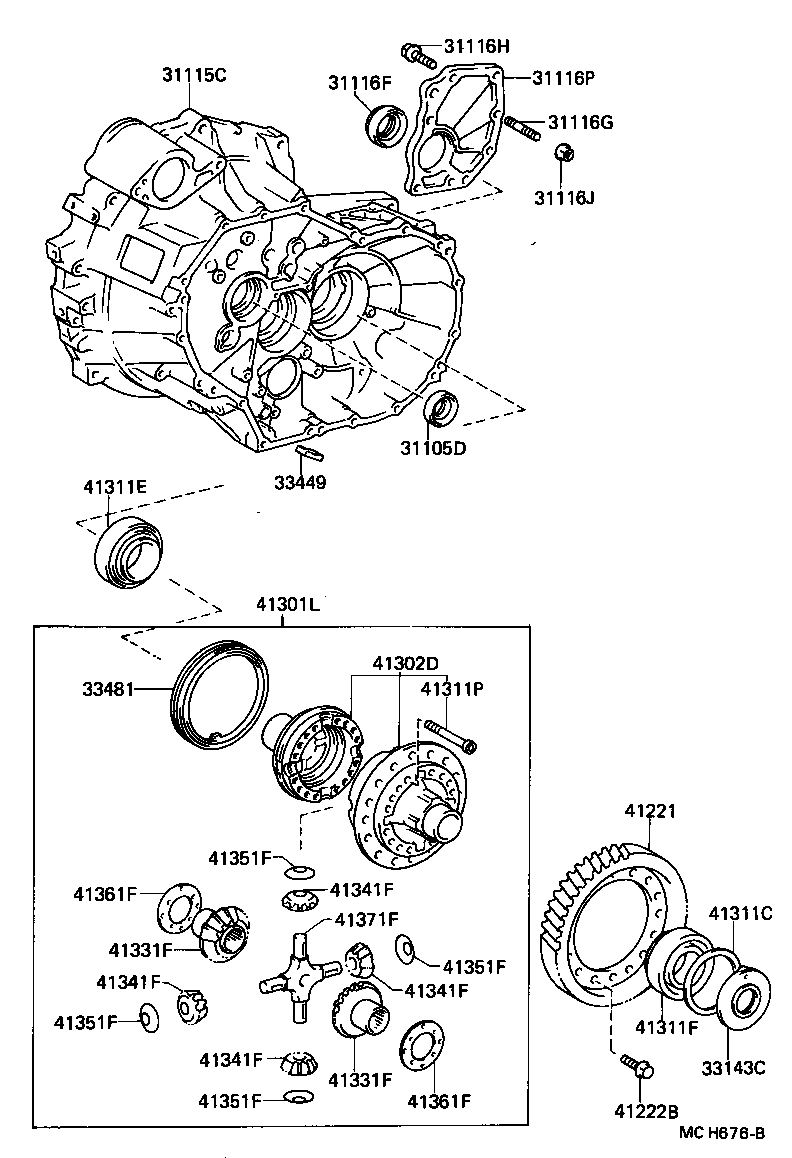

Click highlighted areas on diagram

E53

diagram 31105D 31115C 31116F 31116G 31116H 31116J 31116P 33143C 33449 33481 41221 41222B 41301L 41302D 41311C 41311E 41311F 41311P 41331F 41331F 41341F 41341F 41341F 41341F 41351F 41351F 41351F 41351F 41361F 41361F 41371F
Part # Description Qty Price
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

CV30,SV3#,VZV30,31..5F

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-20020

SV35,VZV3#..5F

 1
31116F - SEAL, OIL(FOR FRONT TRANSAXLE CASE COVER)
90311-40004

VZV30,31..5F

 1
31116G - BOLT, STUD(FOR FRONT TRANSAXLE CASE COVER)
90116-12019

VZV30,31..5F

 3
31116H - BOLT(FOR FRONT TRANSAXLE CASE COVER)
90105-12135

VZV30,31..5F

 4
31116J - NUT(FOR TRANSAXLE CASE COVER)
90179-12068

VZV30,31..5F

 3
31116P - COVER, TRANSAXLE CASE
31116-17010

VZV30,31..5F

 1
33143C - BAFFLE, FRONT DIFFERENTIAL OIL
33143-20040

VZV30,31..5F

 1
33449 - MAGNET, TRANSMISSION
33449-20010

SV35,VZV30,31..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-17011

VZV30,31..5F

 1
33481-17010

VZV3#..5F

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-20240

VZV30,31

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12154

VZV3#

 16
41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41301-12070

VZV30,31..5F

 1
41302D - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.2
41302-17013

VZV30,31..5F

 1
41302-17012

VZV3#..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-76001

SV35,VZV3#

厚さ=2.00,ﾏｰｸ 0

 1
90564-76002

SV35,VZV3#

厚さ=2.05,ﾏｰｸ 1

 1
90564-76003

SV35,VZV3#

厚さ=2.10,ﾏｰｸ 2

 1
90564-76010

SV35,VZV3#

厚さ=2.45,ﾏｰｸ 9

 1
90564-76004

SV35,VZV3#

厚さ=2.15,ﾏｰｸ 3

 1
90564-76005

SV35,VZV3#

厚さ=2.20,ﾏｰｸ 4

 1
90564-76013

SV35,VZV3#

厚さ=2.60,ﾏｰｸ C

 1
90564-76011

SV35,VZV3#

厚さ=2.50,ﾏｰｸ A

 1
90564-76012

SV35,VZV3#

厚さ=2.55,ﾏｰｸ B

 1
90564-76009

SV35,VZV3#

厚さ=2.40,ﾏｰｸ 8

 1
90564-76006

SV35,VZV3#

厚さ=2.25,ﾏｰｸ 5

 1
90564-76016

SV35,VZV3#

厚さ=2.75,ﾏｰｸ F

 1
90564-76008

SV35,VZV3#

厚さ=2.35,ﾏｰｸ 7

 1
90564-76017

SV35,VZV3#

厚さ=2.80,ﾏｰｸ G

 1
90564-76007

SV35,VZV3#

厚さ=2.30,ﾏｰｸ 6

 1
90564-76014

SV35,VZV3#

厚さ=2.65,ﾏｰｸ D

 1
90564-76018

SV35,VZV3#

厚さ=2.85,ﾏｰｸ H

 1
90564-76015

SV35,VZV3#

厚さ=2.70,ﾏｰｸ E

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-57001

SV35,VZV30,31..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50014

SV35,VZV30,31..5F

 1
41311P - BOLT (FOR FRONT DIFFERENTIAL CASE)
90149-10003

VZV30,31..5F

 16
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-17010

VZV3#

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-17010

VZV3#

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

VZV3#

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

VZV3#

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

VZV3#

 4
41341F - PINION, FRONT DIFFERENTIAL
41341-20020

VZV3#

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

VZV30,31..5F

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

VZV30,31..5F

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

VZV30,31..5F

 4
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-20010

VZV30,31..5F

 4
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-17040

VZV3#

厚さ=1.10,ﾏｰｸ FD

 2
41362-17030

VZV3#

厚さ=1.00,ﾏｰｸ FC

 2
41362-17060

VZV3#

厚さ=1.30,ﾏｰｸ FF

 2
41362-17020

VZV3#

厚さ=0.90,ﾏｰｸ FB

 2
41362-17050

VZV3#

厚さ=1.20,ﾏｰｸ FE

 2
41362-17020

VZV30,31..5F

厚さ=0.90,ﾏｰｸ FB

 2
41362-17010

VZV30,31..5F

厚さ=0.80,ﾏｰｸ FA

 2
41362-17030

VZV30,31..5F

厚さ=1.00,ﾏｰｸ FC

 2
41362-17010

VZV3#

厚さ=0.80,ﾏｰｸ FA

 2
41362-17070

VZV3#

厚さ=1.40,ﾏｰｸ FG

 2
41362-17060

VZV30,31..5F

厚さ=1.30,ﾏｰｸ FF

 2
41362-17050

VZV30,31..5F

厚さ=1.20,ﾏｰｸ FE

 2
41362-17040

VZV30,31..5F

厚さ=1.10,ﾏｰｸ FD

 2
41362-17070

VZV30,31..5F

厚さ=1.40,ﾏｰｸ FG

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41362-17040

VZV3#

厚さ=1.10,ﾏｰｸ FD

 2
41362-17030

VZV3#

厚さ=1.00,ﾏｰｸ FC

 2
41362-17060

VZV3#

厚さ=1.30,ﾏｰｸ FF

 2
41362-17020

VZV3#

厚さ=0.90,ﾏｰｸ FB

 2
41362-17050

VZV3#

厚さ=1.20,ﾏｰｸ FE

 2
41362-17020

VZV30,31..5F

厚さ=0.90,ﾏｰｸ FB

 2
41362-17010

VZV30,31..5F

厚さ=0.80,ﾏｰｸ FA

 2
41362-17030

VZV30,31..5F

厚さ=1.00,ﾏｰｸ FC

 2
41362-17010

VZV3#

厚さ=0.80,ﾏｰｸ FA

 2
41362-17070

VZV3#

厚さ=1.40,ﾏｰｸ FG

 2
41362-17060

VZV30,31..5F

厚さ=1.30,ﾏｰｸ FF

 2
41362-17050

VZV30,31..5F

厚さ=1.20,ﾏｰｸ FE

 2
41362-17040

VZV30,31..5F

厚さ=1.10,ﾏｰｸ FD

 2
41362-17070

VZV30,31..5F

厚さ=1.40,ﾏｰｸ FG

 2
41371F - SPIDER, FRONT DIFFERENTIAL
41371-17010

VZV30,31..5F

 1
