VZV30-ATMQK (1990)
Toyota Camry/Vista
ILLUST NO. 1 OF 2(9007-9206)5F ; (9206- )SV35..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-32070 |
SV35,VZV3#..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2011016 |
VZV30..5F ﾌﾟﾛﾐﾈﾝﾄ E,SABLE,TRIM4# |
1 | ||
| 33504-2012016 |
SV32,33,VZV3#..HT..5F..(GT,PRO) SABLE,TRIM4# |
1 | ||
| 33504-2011022 |
VZV30..5F ﾌﾟﾛﾐﾈﾝﾄ E,TAUPE,TRIM9# |
1 | ||
| 33504-2011033 |
VZV30..5F ﾌﾟﾛﾐﾈﾝﾄ E,MEDIUM GRAY,TRIM1# |
1 | ||
| 33504-2012022 |
SV32,33,VZV3#..5F..(GT,PRO) TAUPE,TRIM9# |
1 | ||
| 33504-12180E0 |
CV30,SV3#,VZV30,31..HT..5F..(ETO,PRO,VE,VR,VX) SABLE,TRIM4# |
1 | ||
| 33504-2012013 |
SV32,33,VZV3#..5F..(GT,PRO) MEDIUM GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-32060 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33509 - CRANK SUB-ASSY, SELECTING BELL, NO.1 | ||||
| 33509-32011 |
SV35,VZV3#..5F |
1 | ||
| 33509-12080 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-12034 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90508-20084 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534K - WASHER, WAVE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90206-12003 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534P - WASHER, PLATE (FOR SELECTING BELLCRANK NO.1) | ||||
| 90201-12052 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00900 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06029 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12040 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33556B - BUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90389-37001 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-20040 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33556H - SHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT) | ||||
| 90564-37012 |
CV30,SV3#,VZV30,31..5F 厚さ=0.8,ﾏｰｸ=D |
1 | ||
| 90564-37010 |
CV30,SV3#,VZV30,31..5F 厚さ=0.6,ﾏｰｸ=B |
1 | ||
| 90564-37016 |
CV30,SV3#,VZV30,31..5F 厚さ=1.2,ﾏｰｸ=H |
1 | ||
| 90564-37018 |
CV30,SV3#,VZV30,31..5F 厚さ=1.4,ﾏｰｸ=K |
1 | ||
| 90564-37011 |
CV30,SV3#,VZV30,31..5F 厚さ=0.7,ﾏｰｸ=C |
1 | ||
| 90564-37009 |
CV30,SV3#,VZV30,31..5F 厚さ=0.5,ﾏｰｸ=A |
1 | ||
| 90564-37013 |
CV30,SV3#,VZV30,31..5F 厚さ=0.9,ﾏｰｸ=E |
1 | ||
| 90564-37019 |
CV30,SV3#,VZV30,31..5F 厚さ=1.5,ﾏｰｸ=L |
1 | ||
| 90564-37017 |
CV30,SV3#,VZV30,31..5F 厚さ=1.3,ﾏｰｸ=J |
1 | ||
| 90564-37020 |
CV30,SV3#,VZV30,31..5F 厚さ=1.6,ﾏｰｸ=M |
1 | ||
| 90564-37014 |
CV30,SV3#,VZV30,31..5F 厚さ=1.0,ﾏｰｸ=F |
1 | ||
| 90564-37021 |
CV30,SV3#,VZV30,31..5F 厚さ=1.7,ﾏｰｸ=N |
1 | ||
| 90564-37015 |
CV30,SV3#,VZV30,31..5F 厚さ=1.1,ﾏｰｸ=G |
1 | ||
| 33556J - RING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT) | ||||
| 90520-36018 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33565A - BUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90389-08092 |
CV30,SV3#,VZV30,31..5F |
4 | ||
| 33565B - BUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE) | ||||
| 90385-09008 |
CV30,SV3#,VZV30,31..5F |
4 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-32060 |
SV35,VZV3#..5F |
1 | ||
| 33575-20362 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33695A - COVER, SHIFT LEVER BALL | ||||
| 33695-32010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| Common parts | ||||
| 90179-08054 | ||||
| 91651-40610 | ||||
| 91665-40830 | ||||

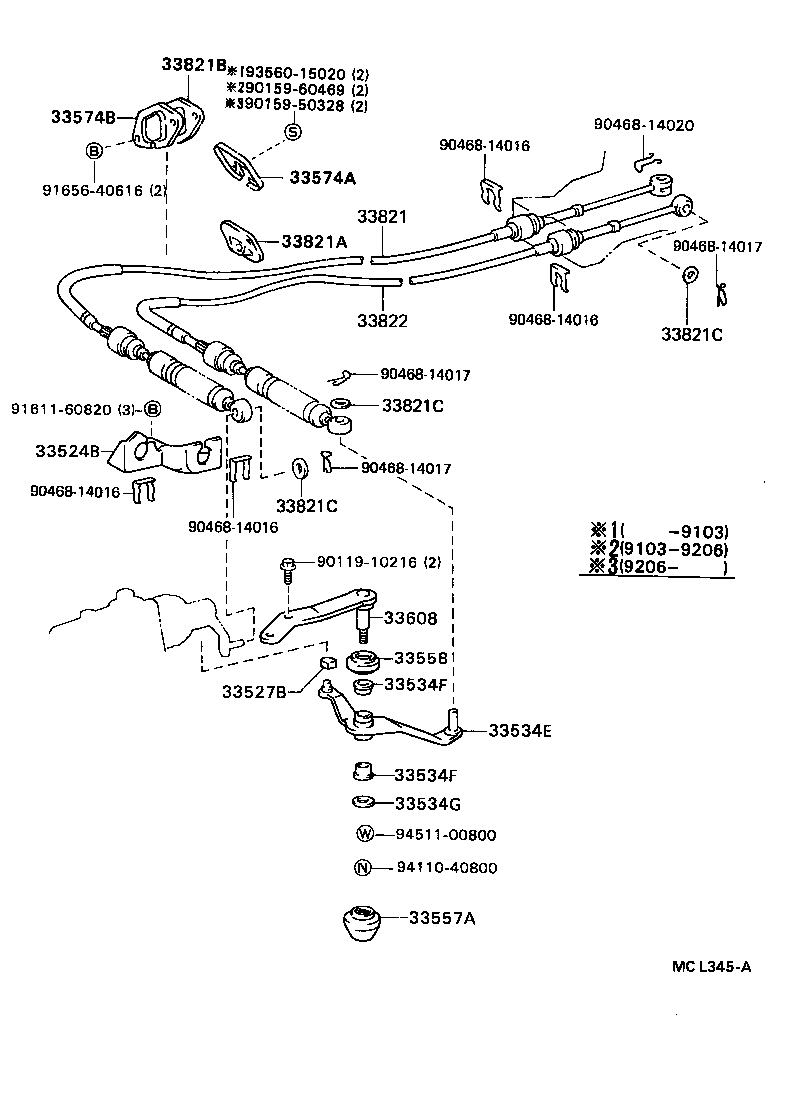

ILLUST NO. 2 OF 2(9007- )SV35,VZV30,31..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33524B - BRACKET, CONTROL CABLE | ||||
| 33524-32020 |
VZV30,31..5F |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 90389-10009 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-20020 |
SV35,VZV3#..5F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
CV30,SV3#,VZV30,31..5F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-12010 |
SV35,VZV30,31..5F |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-32191 |
VZV30,31..5F |
1 | ||
| 33574-32190 |
VZV3#..5F |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-32160 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-20010 |
SV35,VZV3#..5F |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-32280 |
VZV30,31..5F |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01581 |
VZV30,31..5F |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01583 |
VZV30,31..5F |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
CV30,SV3#,VZV30,31..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV30,SV3#,VZV30,31..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
CV30,SV3#,VZV30,31..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV30,SV3#,VZV30,31..5F SHIFT LEVER SIDE |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08077 |
CV30,SV3#,VZV30,31..5F 外径=30,TRANSAXLE SIDE |
2 | ||
| 90201-10042 |
CV30,SV3#,VZV30,31..5F SHIFT LEVER SIDE |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-32180 |
VZV30,31..5F |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90159-50328 | ||||
| 90159-60469 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 90468-14020 | ||||
| 91611-60820 | ||||
| 91656-40616 | ||||
| 93560-15020 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
