VZV30-ATMQK (1990)
Toyota Camry/Vista
(9007- )VZV30,31..5F
E53

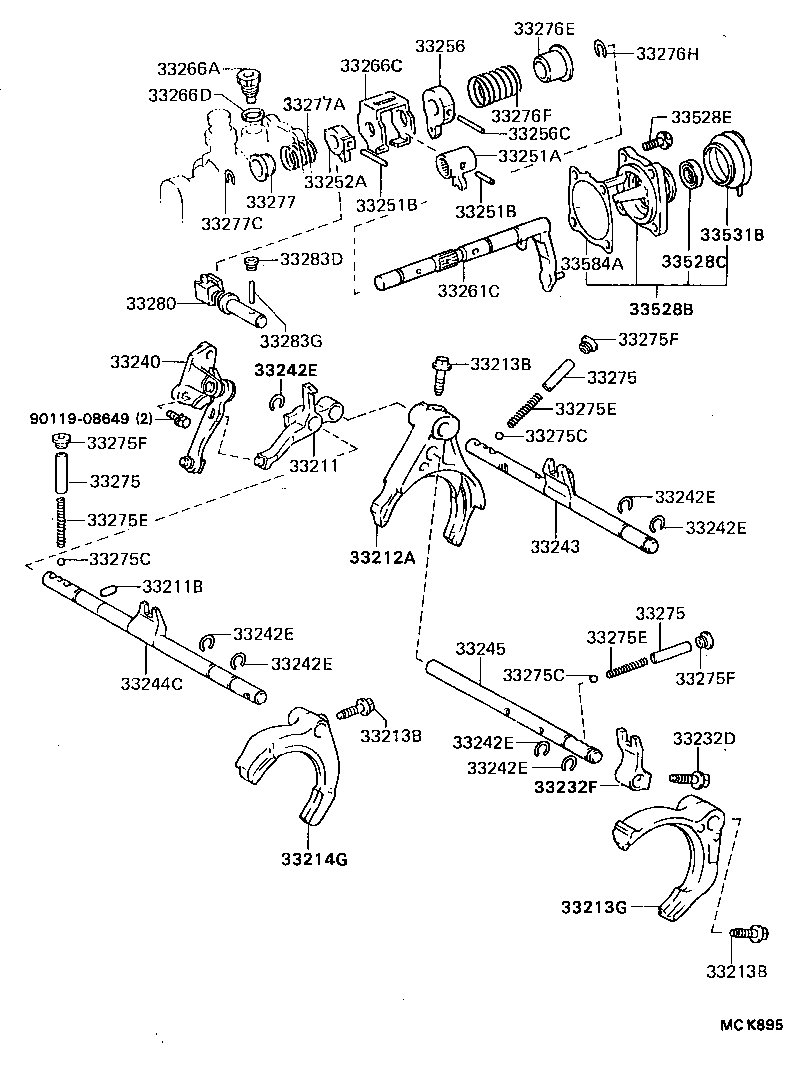

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-20020 |
SV35,VZV30,31..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08005 |
SV35,VZV30,31..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-20060 |
VZV3#..5F |
1 | ||
| 33212-33010 |
VZV30,31..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
SV35,VZV30,31..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
SV35,VZV30,31..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
SV35,VZV30,31..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-20043 |
VZV30,31..5F |
1 | ||
| 33213-20042 |
VZV3#..5F |
1 | ||
| 33213-20042 |
VZV30,31..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-20031 |
VZV30,31..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-07002 |
SV35,VZV30,31..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-33010 |
VZV30,31..5F |
1 | ||
| 33232-20010 |
VZV3#..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-12021 |
SV35,VZV30,31..5F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
VZV30,31..5F |
7 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33205-20010 |
VZV3#..5F |
1 | ||
| 33242-33010 |
VZV30,31..5F |
1 | ||
| 33244C - SHAFT, REVERSE & 5TH SHIFT FORK | ||||
| 33244-33010 |
VZV30,31..5F |
1 | ||
| 33244-20040 |
VZV3#..5F |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-33010 |
VZV30,31..5F |
1 | ||
| 33243-20060 |
VZV3#..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20050 |
SV35,VZV30,31..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
SV35,VZV30,31..5F 長さ=25.5 |
1 | ||
| 90254-05002 |
VZV30,31..5F 長さ=32 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05016 |
SV35,VZV30,31..5F 長さ=25.5 |
1 | ||
| 90254-05002 |
VZV30,31..5F 長さ=32 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20020 |
SV35,VZV30,31..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33256C - PIN, SLOTTED SPRING (FOR SELECT INNER LEVER) | ||||
| 90254-05002 |
SV35,VZV30,31..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20060 |
VZV30,31..5F |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90109-18002 |
SV35,VZV30,31..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-20010 |
SV35,VZV3#..5F |
1 | ||
| 33266D - GASKET (FOR SHIFT INTER LOCK PLATE) | ||||
| 90430-18008 |
SV35,VZV30,31..5F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
SV35,VZV30,31..5F 外径=44.1 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
SV35,VZV30,31..5F 外径=44.1 |
3 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-20010 |
SV35,VZV30,31..5F 外径=44.1 |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
SV35,VZV30,31..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
SV35,VZV30,31..5F |
3 | ||
| 33275C - BALL (FOR SHIFT DETENT) | ||||
| 90360-08009 |
SV35,VZV30,31..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
SV35,VZV30,31..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
SV35,VZV30,31..5F |
3 | ||
| 33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-14104 |
SV35,VZV30,31..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
SV35,VZV30,31..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
SV35,VZV30,31..5F |
3 | ||
| 33275F - PLUG (FOR SHIFT DETENT BALL) | ||||
| 90341-12004 |
SV35,VZV30,31..5F |
3 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-16103 |
SV35,VZV30,31..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
SV35,VZV30,31..5F |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-20010 |
SV35,VZV30,31..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-18068 |
SV35,VZV30,31..5F |
1 | ||
| 33277C - RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90520-12003 |
SV35,VZV30,31..5F |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20041 |
SV35,VZV30,31..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
CV30,SV3#,VZV30,31..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
SV35,VZV30,31..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-20210 |
SV35,VZV30,31..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18009 |
SV35,VZV30,31..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
SV35,VZV30,31..5F *10−1.25PX25−19.8 |
4 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
SV35,VZV30,31..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-20020 |
SV35,VZV30,31..5F |
1 | ||
| Common parts | ||||
| 90119-08649 | ||||
